Factory sale China professional manufacturer wooden sawdust dryer for sale
Wooden sawdust dryer for sale

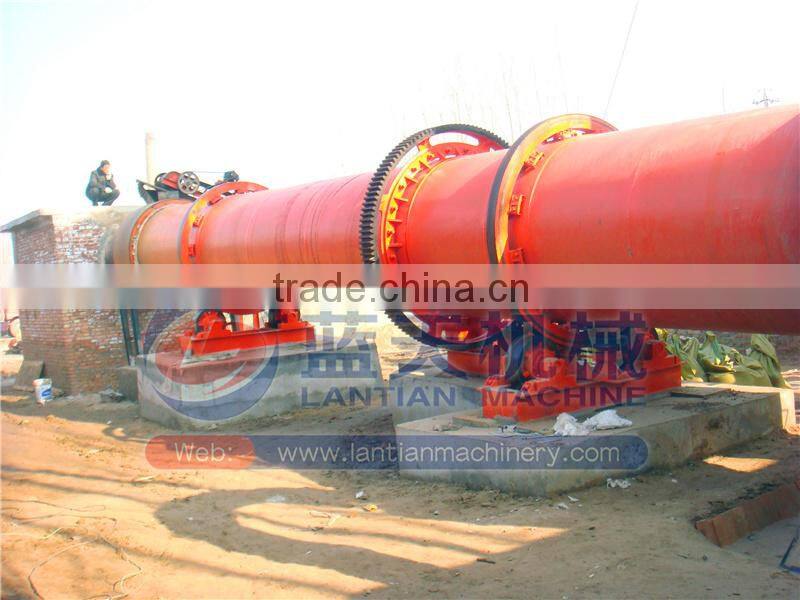

Work site of wooden sawdust dryer for sale

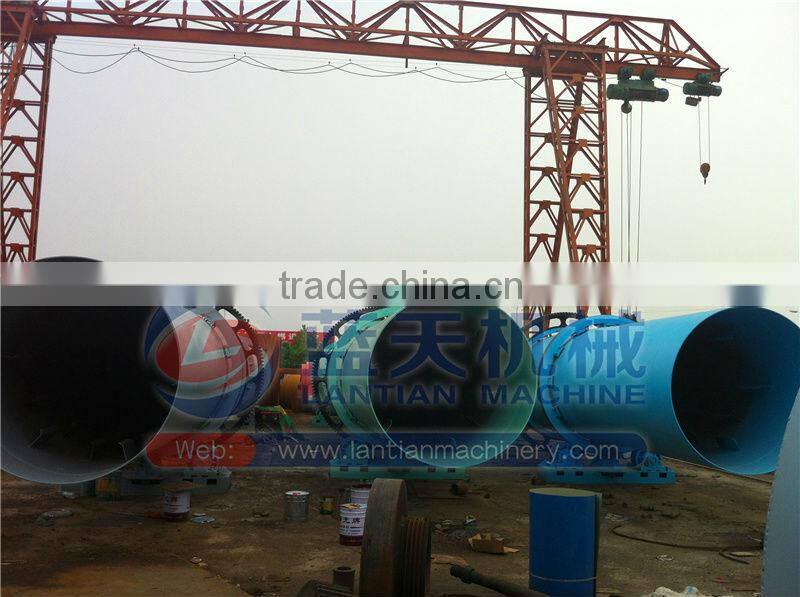

Delivery site of wooden sawdust dryer for sale
1. Brief introduction of wooden sawdust dryer for sale
Wooden sawdust dryer is the most traditional drying equipments in China. wooden sawdust dryer made
in Lantian Mechanical Plant shares many advantages, such as stable running, large elasticity of operation,
strong adaptability, large capacity. Because of these advantages, wooden sawdust dryer is widely used
in metallurge, building material, chemical industry, washing coal, fertilizer, ore, sand, clay, kaolin, etc. area.
Wooden sawdust dryer's length and diameter are both customized according to your production capacity.
Wooden sawdust dryer consists of rotary body, lifting plate, transmission device, dust collection, support
device, seal rings, etc. Drying drum is a cylider which has been located slight tilt with the horizontal. Then
raw material(like sawdust, wood chips, coal,etc.) being conveyed into drying drum from the higher side
through belt conveyor, meanwhile, heat air with high temperature also enter into drying drum. Under the
influence of movement of drying drum and the gravity, raw material begin to move towards the lower side
of the drying drum. In the drying drum, there are many lifting plates, these lifting plate lift raw material, this
enlarge contact area between raw material and hot air, improve drying rate, and promote raw material
move forward.(wooden sawdust dryer for sale)
Work site of wooden sawdust dryer for sale
2. Application of wooden sawdust dryer for sale
1) Wood wastes: such as sawdust, wood sawdust, wood chips, wood pieces, wood shavings.
2) coal powder, coal slurry, coal dust.
3) Grain, wheat, rice, corn, bean, sunflower seed, etc.
4) Potato starch, tapioca starch, barley malt, etc.
5) Sand, clay, slurry, mud, activated clay, inorganic mud, argil, etc.
6) Vinasse
7) Slag, ore.
8) Metal powder.
9) Fish meal, herb residue, turf.
10) Animal wastes.
11) Graphite.(wooden sawdust dryer for sale)
3. Working principle of wooden sawdust dryer for sale
Wooden sawdust dryer is mainly for drying the small size raw material less than 30mm, The moisture less
than 65%. Firstly, Wooden sawdust enter into the drying sysem by conveyor or bucket conveyor, small raw
material is raised by lifting plate to making the raw material and heat totally contact with each other. Raw
material is normallyed in granules, it will be dryied from the front of woodedn sawdust dryer to the end of
wooden sawdust dryer. In order to provide you the most suitable water content raw material, we can adjust
the moving speed of wooden sawdust dryer.(wooden sawdust dryer for sale)
4. Characteristics of wooden sawdust dryer for sale
1) Wooden sawdust dryer has very large production capacity, according to different raw material, it
can dry about 1-15ton raw material.
2) Low consumption and low drying cost.
3) Our wooden sawdust dryer can use high temperature hot air dry up raw material in short time.
4) Our wooden sawdust dryer adopts self-aligning type tug structure, this greatly reduce the abrasion and
power cost between tug and rolling ring.
5) Dying drum has stable running process.
6) Strong anti-overload ability.
7) Specially designed gear wheel structure greatly reduce horizontal thrust because of drying drum's slight tilt.
5. Parameter of wooden sawdust dryer for sale
| Type |
Dia. of Roller (mm) |
Rolling Speed (r/min) |
Motor Power(kw) |
Cubage (m ³ ) |
| Φ 0.6*8 | Φ 600 | 8 | 4 | 2.26 |
| Φ1.0*10 | Φ 800 | 10 | 4 | 5.02 |
| Φ0.8*10 | Φ 1000 | 10 | 5.5 | 7.85 |
| Φ1.2*12 | Φ 1200 | 12 | 11 | 13.31 |
| Φ1.5*12 | Φ 1500 | 12 | 15 | 21.2 |
| Φ 1.8*14 | Φ 1800 | 14 | 30 | 48.22 |
| Φ2.2*18 | Φ 2200 | 18 | 37 | 70.43 |
| Φ2.4*20 | Φ 2400 | 20 | 45 | 90.43 |
| Φ2.8*24 | Φ 2800 | 24 | 75 | 147.8 |
6. Installation of wooden sawdust dryer for sale
1) Wooden sawdust dryer should be installed a horizontal concrete foundation, and fixed the drying drum by
foundation bolt.
2) After installation, check all bolts and host storhouse door.
3) Dispose power and control switch according to rotary dryer's motor power.
4) After check, please do empty load test. If the test normal, then it's ok.(wooden sawdust dryer for sale)
Customers came to our factory to check our wooden sawdust dryer for sale
7. How to choose the most suitable wooden sawdust dryer for sale ?
There are different types wooden sawdust dryers in our factory with various production capacity. so in order
to provide you the most suitable wooden sawdust dryer, I need to know your raw material, your production
capacity per hour. Then I will provide one accrding to your description.(wooden sawdust dryer for sale)
If you are interested in our wooden sawdust dryer for sale, please contact:
Our factory:
Lantian Mechanical Plant was founded in 1980s. It is a professional dryer making factory since 1980s. Our
main dryer includes rotary dryer, box dryer, belt dryer, wood sawdust dryer, sand dryer, grain dryer, fruit dryer,
etc. Apart from all kinds of dryers, our factory also produces crusher, mixer, briquette machine, brick machine,
etc.(wooden sawdust dryer for sale)
