BBQ charcoal making machine manufacturer for biomass wastes charcoal bar briquette machine
- 80 Set / Sets per Month
- Qingdao port Shanghai port or others
- T/T L/C D/P D/A
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Biomass briquette machine |
Model Number: | JBJ-50,JBJ-70,JBJ-80 | Voltage: | 220v,380v,etc. | Power(W): | 7.5w,11w,etc. |
Weight: | 680kg, 750kg, 800kg | Dimension(L*W*H): | According to different type | Certification: | CE,ISO |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
BBQ charcoal making machine manufacturer for biomass wastes charcoal bar briquette machine
Charcoal bar briquette machine:
Wood briquettes made by charcoal bar briquette machine:
Charcoal bar made by charcoal bar briquette machine production line

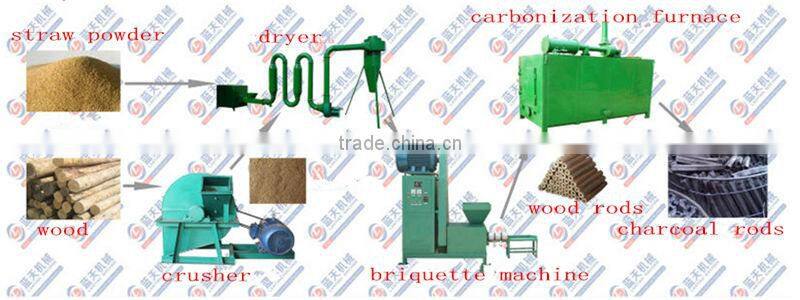

The whole production line of charcoal bar briquette machine
Brief introduction of charcoal bar briquette machine:
Charcoal bar briquette machine is an environmental equipment which can press
biomass powder from agriculture wastes, such as wood dust,sawdust, rice husk,
peanut shell, plant straw, fruits shells into rods solid fuel, this rods solid fuel is
biomass briquettes or we can call it wood briquettes. These wood briquettes
can be used directly as fire fuel, or if you want to get bbq charcoal briquettes,
we just need to turn wood bars into charcoal bars by using carbonizing process.
According to the different sizes of shaping drum, charcoal bar briquette machine
can be distributed into 50 charcoal bar briquette machine, 60 charcoal bar briquette
machine, 70 charcoal bar briquette machine, 80 charcoal bar briquette machine.
These numbers means final charcoal bar briquettes' diameter or width.
Working principle of charcoal bar briquette machine
Under the condition of high pressure and high temperature, fine biomass powder whose
dimension is under 5mm can be easily turned into high density rods without any binder.
so the final wood bar briquettes or charcoal bar briquettes we get are totally natural. After
the tremendous pressure of charcoal bar briquette machine, the rods have certain intensity,
high density, stable performance, which makes the final product easy to transport/convenient
to store. The solid bar made by biomass briquette machine shares many advantages,
such as high calorific value(increase more than 20% than general wood),less pollution,etc.

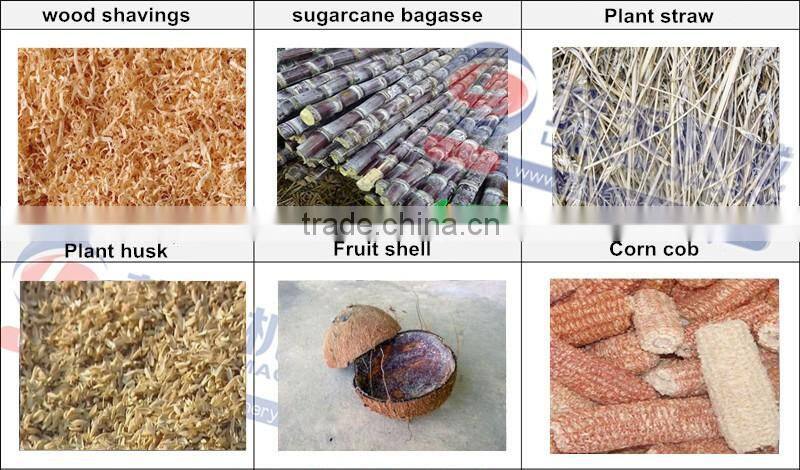

Raw material of charcoal bar briquette machine:
1) Wood waste, such as wood pieces, wood chips, wood shavings, sawdust, etc.
2) Plant straw.
3) Fruit shell.
4) Tree branches and bark.
5) Any kinds of biomass wastes.
Deliverty site of charcoal bar briquette machine:
Main parameter of charcoal bar briquette machine:
Type | JBJ-50 | JBJ-70 | JBJ-80 |
Capacity | 200kg/h | 200-250kg/h | 260-350kg/h |
Motor Power | 15kw | 18.5kw | 22kw |
Diameter of Briquettes | 40mm,45mm,50mm | 60mm,70mm | 70mm,80mm |
Weight | 680kg | 750kg | 800kg |
Characteristics of sawdust briquette charcoal making machine:
1. No binder or noxious chemical need to use.
2. The humidity of the raw materials is controlled in 8-12%.
3. Using the advanced Hot air drying system with the perfect performance.
4. After the processing of High temperature, purification, smoke removing, the carbonizing
equipment transforms the semi-finished bio-fuel briquette into a smoke-free, tasteless, non
-toxic cleaning carbon.
The whole charcoal bar briquette machine production line
1) Hammer or blade crusher: first, we need to get fine biomass powder whose
dimension is under 5mm.
2) Rotary dryer: After we getting fine biomass powder, we need to dry it till its humidity
under 15%.
3) Charcoal bar briquette machine: Then we shape fine dry biomass powder into
rods solid wood briquettes.
4) Carbonization furnce/ carbonization kiln: To turn rods solid wood briquettes/
biomass briquettes to bbq charcoal bar briquettes.
Apart from charcoal bar briquette machine, we also provide you its assistant
equipments. Such as crusher, dryer, conveyor, carbonization furnace, etc.
1) Punching type briquette machine
If you are interested in the following briquette machines, please click the following
photos!!!
2) Roller type briquette machine
If you are interested in our charcoal bar briquette machine, please contact me freely!
Contact Name: Amy
Phone NO.: 0086- 152 2518 1914
Whats App: 0086- 152 2518 1914
Wechat: amytang1003
Introduction of Lantian Mechanical Plant:
Lantian Mechanical Plant is a professional factory, which has been specialized in coal,
charcoal, biomass briquette machine since 1980s. Through nearly 30 years' development,
we have developed and researched a series of high quality briquette machine and other
assistant equipments. Our main briquette machine includes coal briquette machine, charcoal
briquette machine, biomass briquette machine, shisha briquette machine, etc.
Our assistant equipments includes crusher, carbonization furnace, mixer, dryer, etc.
