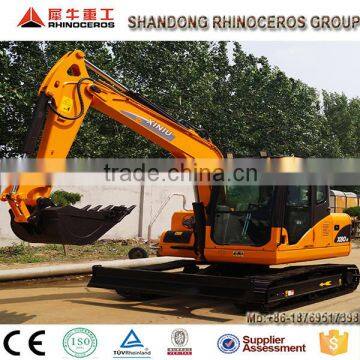

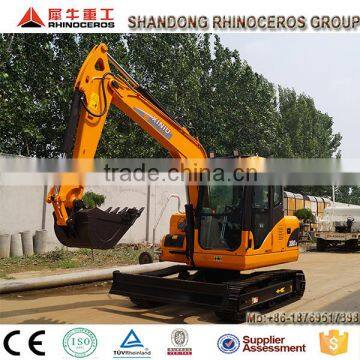

Crawler Excavator,High quality Mini Hydraulic Crawler Excavator with 0.3 cbm bucket
1.X80-E crawler excavator detail information:
8ton, Yanmar(4TNV94LSFN) engine, 39.8KW
DOOSAN main pump
USA EATON swing motor, traveling motor, valves,
USA PARKER Sealing parts, Joystick,
Italy Manuli hydraulic oil pipe
A/C cab, English monitor, Radio, USB, 0.3m3 bucket, Overall dimension: 5830x2150x2640mm

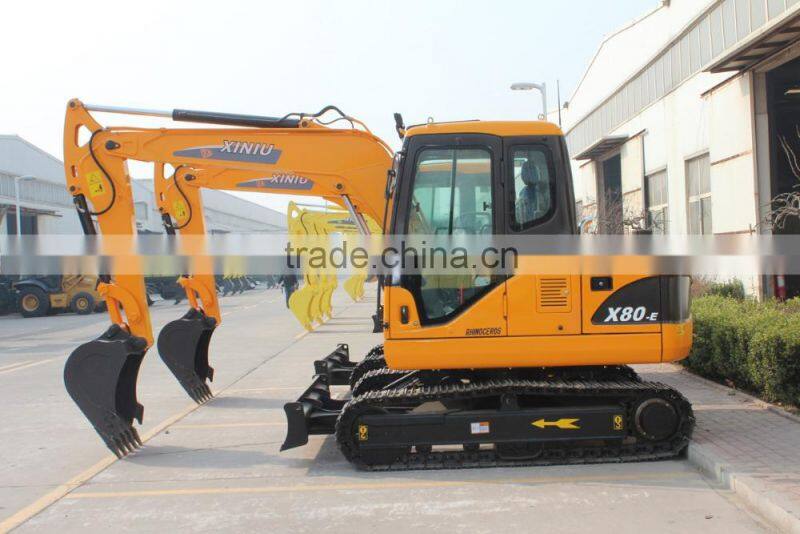

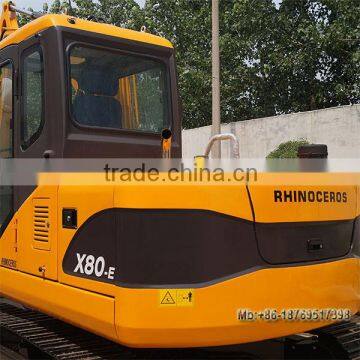

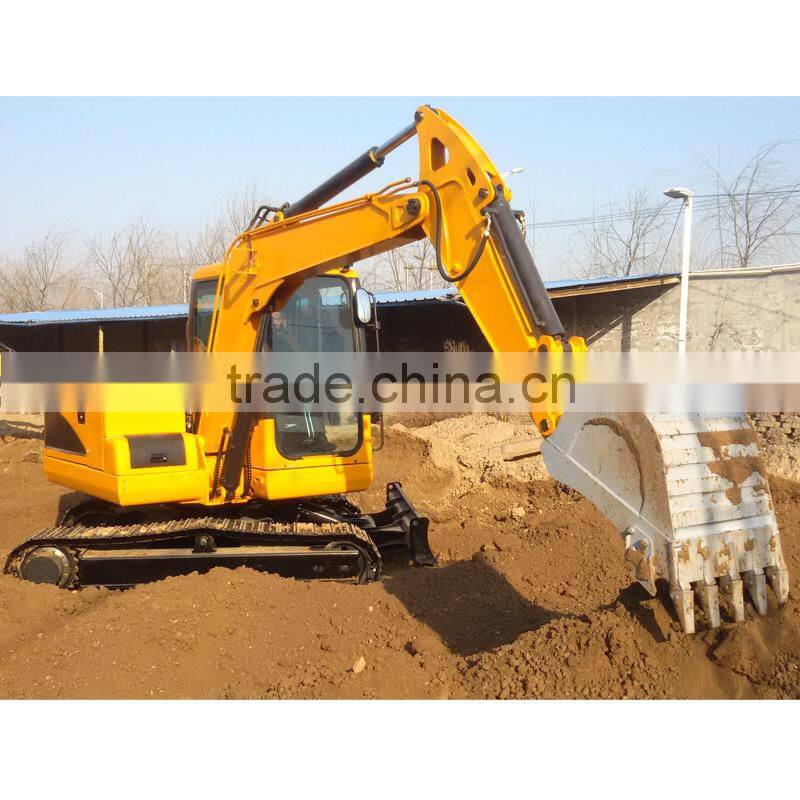

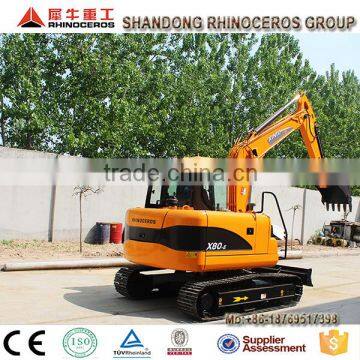

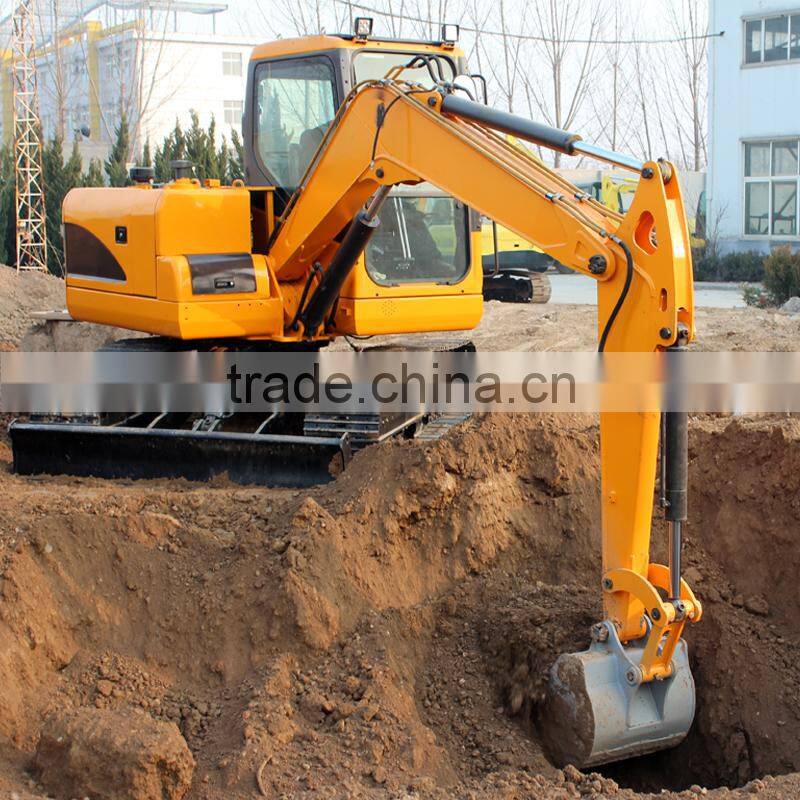

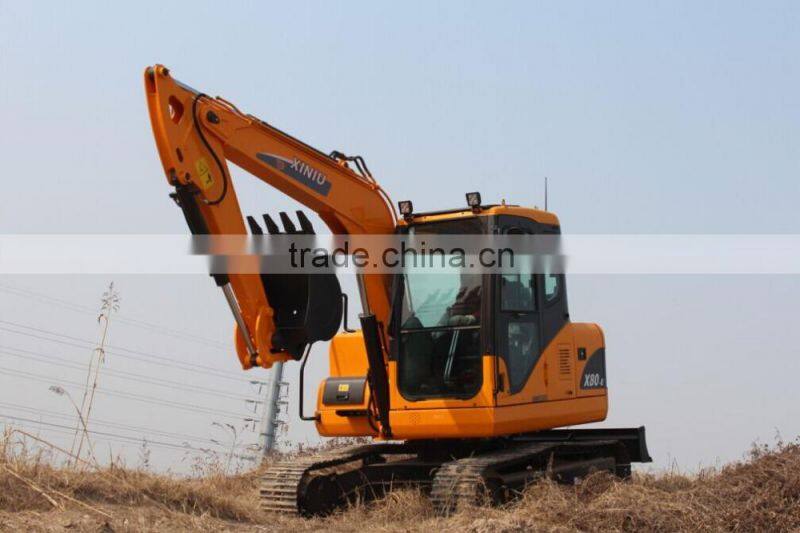

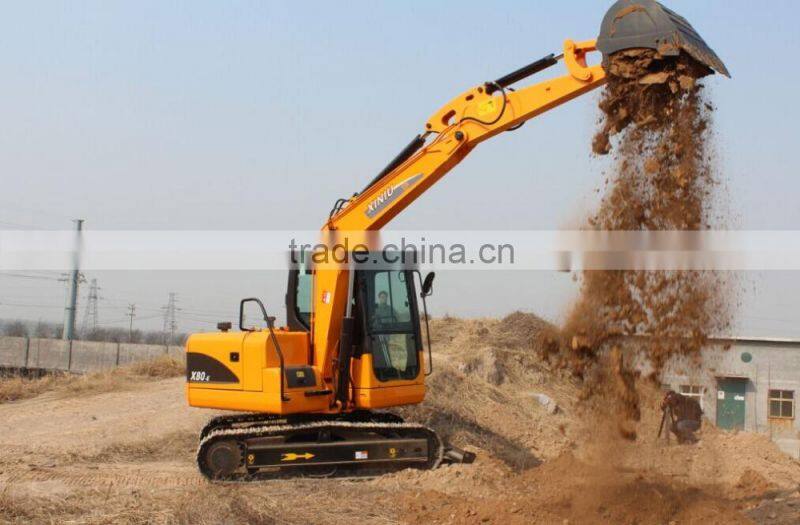

Crawler excavator view:
The specification of X80-E:
MAIN DIMENSIONS |
UNIT |
X80-E |
(Operating Weight) |
kg |
8000 |
(Overall Dimension ) |
mm |
5830x2150x2640 |
(Cab Dimension ) |
mm |
1300x950x1520 |
(Bucket Capacity) |
cbm |
0.3 |
SYSTEM CONFIGURATION |
||
(Engine Type) |
YANMAR(4TNV94L-SFN) |
|
(Rated Power/Speed) |
kw |
39.8 |
(No. of Cylinders/Type) |
4 cylinder / in line |
|
(Starting Type) |
Electric 12V |
|
(Hydraulic Main Pump) |
DOOSAN |
|
(Hydraulic System Pressure) |
MPa |
22 |
(Hydraulic System Flow) |
L/min |
150 |
(Pilot Pump) |
DOOSAN(TGP04) |
|
(Valve) |
EATON |
|
(Swing Motor) |
EATON |
|
(Max Swing Speed) |
r/min |
9 r/min |
(Travel Motor) |
EATON |
|
(Speed) |
km/h |
H: 3.7km/h ; L: 2.3/km/h |
(Bucket Digging Force) |
Kn |
58 |
(Arm Digging Force) |
Kn |
42 |
(Working Fuel Consumption) |
L/h |
7.08 |
(Diesel Oil Tank Capacity) |
L |
167 |
(hydraulic Oil Tank Capacity) |
L |
125 |
OPERATION RANGE |
||
(Boom Length) |
mm |
3300 |
(Arm Length) |
mm |
1750 |
(Radius to Rear End) |
mm |
1570 |
(Ground Clearance) |
mm |
345 |
(Blade Dimension) |
mm |
2024x345 |
(Max Digging Height) |
mm |
6320 |
(Max Dumping Height) |
mm |
4440 |
(Max Digging Depth) |
mm |
3540 |
(Max Digging Radius) |
mm |
6240 |
(Standard Machine With A/C) |
A/C |
Standard |
(Packing Way) |
2 units in a 40HQ |
|
(Passed Certificates) |
CE ISO |

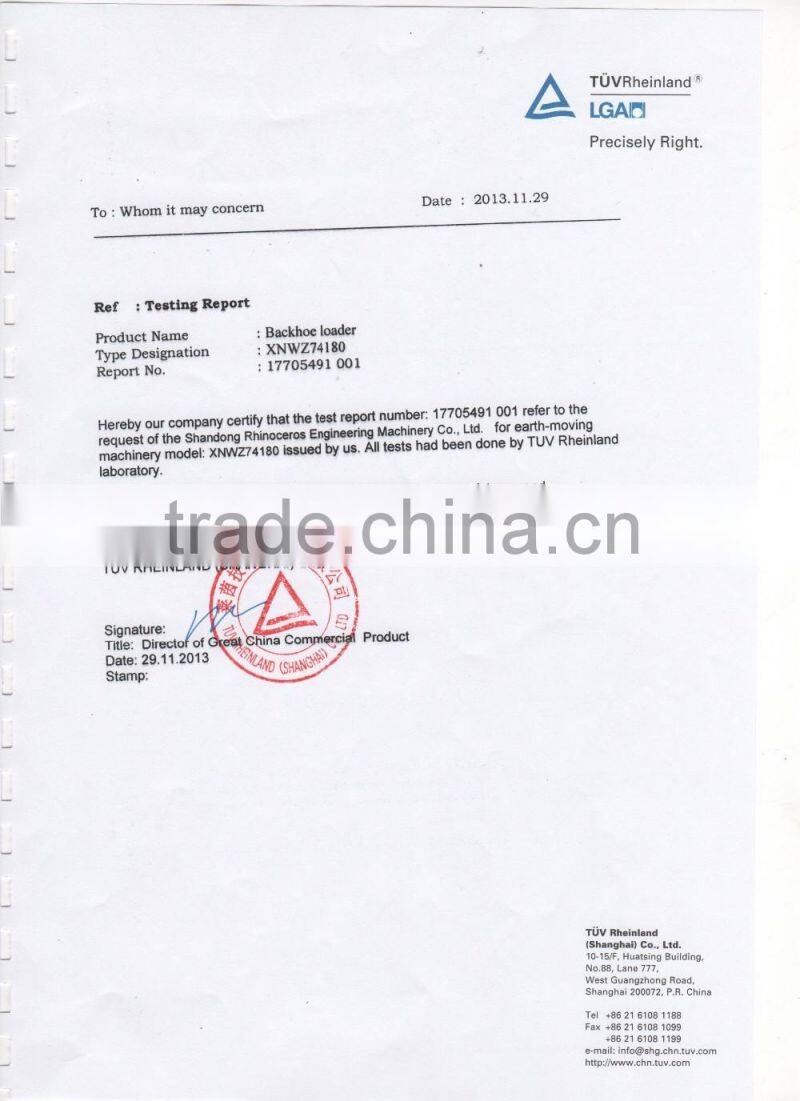

Certification:

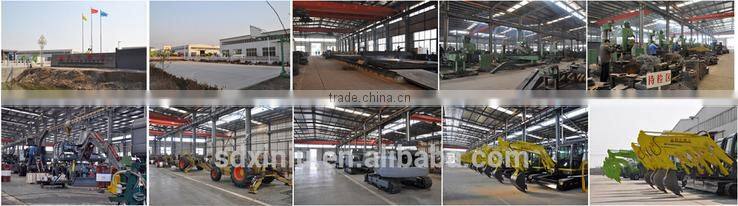

Production range:
We are power engineering machinery manufacturer in China, we produce the Excavator, Backhoe loader, Loader, Skid steer loader, Concrete pump, Concrete pump truck and the spare parts(Track shoe,Track chain,Idler,Sprocket,Track roller,Carrier roller,Pin,Bushings,Bucket,Narrow bucket,4-1 Bucket,Quick hitch,Quick coupling plate,Log grapple)
We produce many parts buy ourselves, so we can low the cost and make sure the high stable quality, and can give you the best price. Choose our company as your partner is your better choice now, we have the power and experience to make both of us good profit.
Company information:
If you interested in our products,please contact me for more information.
