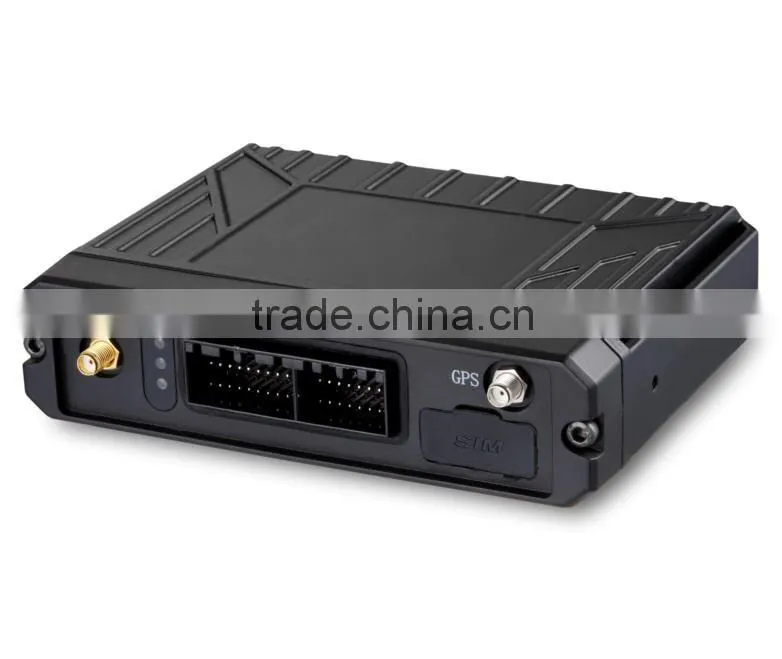

car tracker, car gps canbus J1939, gps vehicle tracker, support LCD, camera, taxi meter, RFID reader, shock sensor CW701

FOB Price

USD $75 - $85 / Piece

1 Piece(Min.Order)

Supply Ability 30000 Piece / Pieces per Month
Port Shenzhen
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Gps Tracker	Use:	Automotive	Screen Size:	Other, LCD screen
Function:	Other, Vehicle GPS tracker	Place of Origin:	China	Brand Name:	www.chainwayits.com
Model Number:	CW-GPS701

Product Description

Packaging & Shipping

Our Services

Chainway vehicle system is the leading telematics system. Based on OBD + vehicle cloud, chainway vehicle system can provide professional fleet management service. Through APP at smartphone and web access to the cloud, you can easily manage the drivers and vehicles in your fleet, and improve save, safety and efficiency.

Chainway vehicle system includes the most comprehensive solutions ( black box, OBD dongle, cloud platform, smart APP, big data analysis, etc.)

he cloud, you can easily manage the drivers and vehicles in your fleet, and improve save, safety and efficiency.

Company Information

CW-801 Parameters

CW-801

T-box

·Wide Operation Voltage Range DC 9 to 36V

·Multiple Inputs/Outputs Including Serial Port

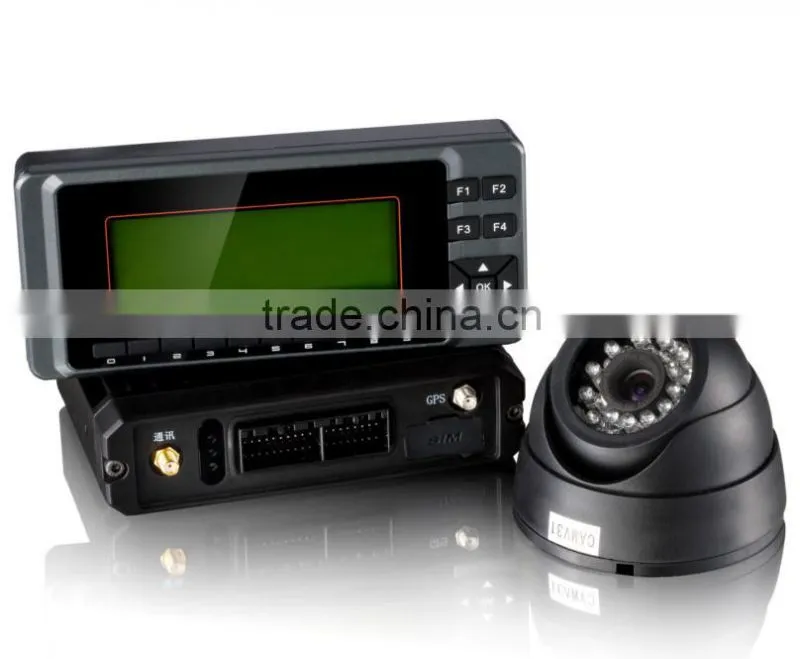

·Optional Camera or LCD Screen

·Embedded CANBus Interface

·White Label Product for Insurer and Carrier

Advantages

·Wide operation voltage range DC 8 to 36V

·Low power consumption,with internal battery

·Built-in SiRF Star chipsets with-162 dBm sensitivity

·Quad band GSM/GPRS frequencies 850/900/1800/1900MHz

·Multiple input/output interfaces for monitoring and controlling

·Optional camera or LCD Screen

·Embedded CANBus Interface

·Embedded full featured protocol

·CE/RoHS certificated

·GSM Specifications

Frequency

Quad-Band:850/900/1800/1900MHz

Compliant to GSM/GPRS phase2/2+

EGSM900/GSM850 class4(2W)

GSM1800/GSM1900 class1(1W)

GPRS

GPRS multi-slot class 10

GPRS mobile station class B

Receiving Sensitivity

<-107dBm

GPS Specifications

GPS Chipset	SiRF Star
Frequency	L1 frequency band,C/A code,48 channels
Sensitivity	Tracking:-163dBm Acquisition:-160dBm
Accuracy	Position:5m CEP without SA Velocity:0.1m/s without SA
Acquisition Time	Cold Start:30s Warm Start:22s Hot Start:1s Re-acquisition:<1s
Datum	WGS-84
SBAS	WAAS,EGNOS,NSAS

Interfaces

Analog Input	One analog input for fuel sensor
Digital Input	One negative trigger input(PIN 16) for panic button,two positive trigger inputs(PIN 7 and PIN 19) to detect ACC,doors or doors etc
Digital Output	One digital output(PIN 8) to control engine or doors etc
Two-Way Audio	PIN 8 and PIN 15 for microphone, PIN 4 and PIN 14 for horn
Serial Port	One RS-232 port for camera or LCD
GPS Antenna	External
GSM Antenna	External

Air Protocol

Transmit Protocol	TCP,UDP,SMS
Schedule Timing Report	Report position and status at presser time interval
SOS Alarm	Press panic button for emergent rescue
Speeding Alarm	Alarm once over preset speed
Geo-Fence Alarm	Alarm once entering or leaving assigned area
Idling Alarm	Alarm when engine is on for a long time but vehicle is static
Fatigue Alarm	Alarm when vehicle has run for a long time
External Power Alarm	Alarm once external power disconnecting
Remote Control	Control the digital output through air interface protocol

General Specifications

MCU	NXP ARM Cortex M3
Sensor	Fuel sensor,accelerator sensor and rotation sensor(optional)
Casing	Aluminium alloy,waterproof and dustproot
Backup Battery	Internal 6V NiMH batteries
Power Management	Full power pathing.Internal batteries start working when external power is exhausted
Operation Voltage	DC9-32V
Operation Temperature	-20℃ to +70℃
Store Temperature	-30℃ to +85℃
Operating Humidity	5% to 95%
Dimension	10888.532mm
Weight	320g

Case

car tracker , car gps canbus, car gps canbus J1939, car gps OBD, car gps OBDII, car gps OBD2, auto gps,gps for car,intelligent transport system

GPRS function:

Real time tracking on Google map, Google earth & E-map
Time interval setting
Over-speed, geo-fence, SOS, power alarm.
Track replay: Replay history trace on Google map & E-map
Remote Oil/Electricity controlling
Input for door open/close alarm sensor
Listen to the voice surrounding vehicles
Internal flash memory: for storing & re-send the location data when GPRS is unavailable, store 30000 break points, not loss by power off
Take photos from platform

GPS/GPRS Specification:
SOS Button: Driver can press SOS button for emergency
General: L1 1575.42MHz, C/A code, 20 Parallel Channels
Sensitivity: -143 dBm minimum
Accuracy Position: 10m CEP without S/A
Velocity: 0.1 m/sec without S/A
WAAS Accuracy Position: 5m CEP
Velocity: 0.05m/sec

Acquisition :
Cold start: < 42sec average
Warm start: < 38sec average
Hot start: < 10sec average

Antenna: External GSM and GPS Antenna
Dimensions: 108mm*88.5mm*32mm

Power Specification:
Backup Battery: Built-in Rechargeable Battery
Power Voltage: DC 9V-55V

Environmental Specification:
Operation Temperature: -20ºC to +70ºC
Storage Temperature:-30ºC to +85ºC
Operating Humidity: 5% to 95%
