Overview:

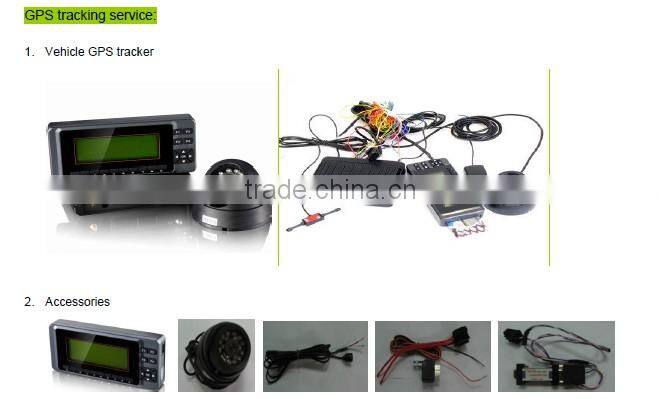

CW-701B is a industrial vehicle driving recorder. It supports fast TTFF and quad-band GSM frequency. It has multiple input/output interfaces to monitor and control vehicle circuit. It can connect two serial digital camera and dispatch LCD screen. It can record driving data for one month.
Features:
High sensitive SiRF GPS chipsets and advanced quad-band GSM module as well as high-performance NXP ARM CPU;
Track by SMS or GPRS;
Track on Google map, Google earth and E-map;
SOS alarm, speeding alarm, geo-fence alarm, idling alarm, fatigue alarm and external
power alarm;
Detect ACC, doors or load etc;
Cut off engine remotely;
Two-way conversation;
Connect dispatch LCD screen or digital serial camera;
Collect accident doubtful points datas;
Collect accumulated mileage and speed within appointed time, 360 hours or 2 calendar
days;
Collect all fatigue driving datas within 2 calendar days when continuous driving is over 4 hours;
Set and record clock, driver number, driving license, vehicle plate number, VIN and RRM etc;
Wide working voltage: DC 9-32V;
Instant high voltage and reverse polarity connection protection;
Internal backup batteries;
Set parameters by LCD, SMS or GPRS;
Update firmware by cable or GPRS;
GPRS protocol: TCP or UDP;
Waterproof and dustproof case.
Specifications:
GPS Specifications | |
GPS Chipset |
SiRF |
Frequency |
L1 frequency band, C/A code, 48 channels |
Sensitivity |
Tracking: -163dBm Acquisition: -160dBm |
Accuracy |
Position: 5m CEP without SA Velocity: 0.1m/s without SA Timing(PPS): 60ns RMS |
|
Acquisition Time
|
Cold Start: 30s Warm Start: 22s Hot Start: 1s Re-acquisition: <1s |
Datum |
WGS-84 |
SBAS |
WAAS, EGNOS, NSAS |
| |
GSM Specifications | |
Frequency |
Quad-Band: 850/900/1800/1900MHz Compliant to GSM/GPRS phase2/2+ EGSM900/GSM850 class4(2W) GSM1800/GSM1900 class1(1W) |
GPRS |
GPRS multi-slot class 10 GPRS mobile station class B |
Receiving Sensitivity |
<-107dBm |
| |
Interface | |
Digital Input |
One negative trigger input (PIN 16) for panic button or other use, three positive trigger inputs (PIN 7, PIN 18, PIN 19) to detect ACC, doors and load etc |
Digital Output |
One digital output (PIN 8) to control engine and doors etc |
Two-Way Audio |
PIN 5 and PIN 15 for microphone, PIN 4 and PIN 14 for horn/speaker |
Serial Port |
One RS-485 port for camera or LCD screen |
GPS Antenna |
External |
GSM Antenna |
External |
| |
Air Interface Protocol | |
Transmit Protocol |
TCP, UDP (customized), SMS |
Schedule Timing Report |
Position report at preset time interval |
SOS Alarm |
Press panic button for emergent rescue |
Speeding Alarm |
Alarm once over preset speed |
Geo-Fence Alarm |
Alarm once entering or leaving assigned area |
Idling Alarm |
Alarm when engine is on for a long time but vehicle is static |
Fatigue Alarm |
Alarm when vehicle has run for a long time |
External Power Alarm |
Alarm once external power disconnecting |
Remote Control |
Control the digital output through air interface protocol |
| |
General Specifications | |
NXP |
ARM7 |
SRAM |
32MB |
Flash |
Nand 32Mb |
FRAM |
32KB |
Sensor |
Accelerator sensor, temperature sensor, humidity sensor and rollover sensor (optional) |
Casing |
|
Backup Battery |
Internal 6V NiMH batteries |
Power Management |
Full power pathing. Internal batteries start working when external power is exhausted |
Operation Voltage |
DC 9-32V |
Operation Temperature |
-20ºC to +70ºC |
Store Temperature |
-30ºC to +85ºC |
Operating Humidity |
5% to 95% |
Dimension |
150*111*40mm |
Weight |
530g |
