Overview:

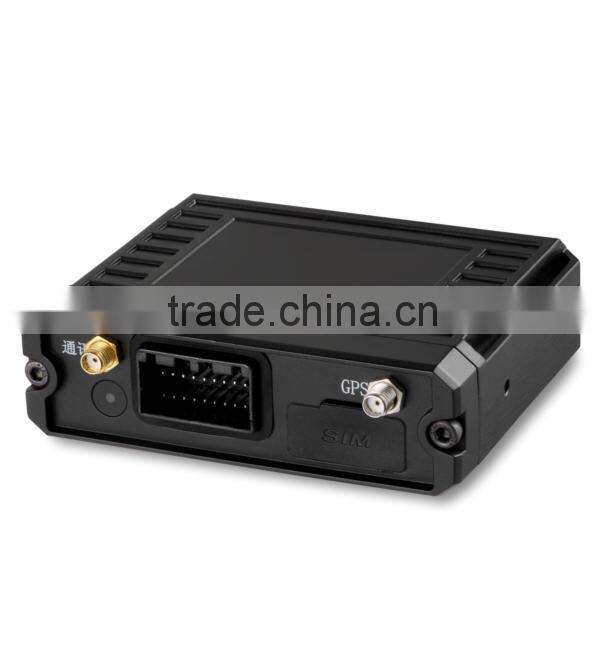

CW-801 is a powerful device for vehicle tracking. It supports fast TTFF and quad-band GSM frequency. It has multiple input/output interfaces to monitor and control vehicle circuit. It can connect serial digital camera and dispatch LCD screen.
Features:
High sensitive SiRF GPS chipsets and advanced quad-band GSM module as well as high-performance NXP ARM MCU;
Track by SMS or GPRS;
Track on Google map, Google earth and E-map;
SOS alarm, speeding alarm, geo-fence alarm, idling alarm, fatigue alarm and external power alarm;
Odometer statistics;
Detect ACC, doors or load etc;
Cut off engine remotely;
Flash;
Two-way conversation;
Connect dispatch LCD screen or digital serial camera;
Wide working voltage: DC 9-32V;
Instant high voltage and reverse polarity connection protection;
Internal backup batteries;
Set parameters by LCD, SMS or GPRS;
Update firmware by cable or GPRS;
GPRS protocol: TCP or UDP;
Waterproof and dustproof case;
CE and RoHS certificates.
Specifications:
GPS Specifications | |
GPS Chipset |
SiRF |
Frequency |
L1 frequency band, C/A code, 48 channels |
Sensitivity |
Tracking: -163dBm Acquisition: -160dBm |
Accuracy |
Position: 5m CEP without SA Velocity: 0.1m/s without SA Timing(PPS): 60ns RMS |
Acquisition Time |
Cold Start: 30s Warm Start: 22s Hot Start: 1s Re-acquisition: <1s |
Datum |
WGS-84 |
SBAS |
WAAS, EGNOS, NSAS |
| |
GSM Specifications | |
Frequency |
Quad-Band: 850/900/1800/1900MHz Compliant to GSM/GPRS phase2/2+ EGSM900/GSM850 class4(2W) GSM1800/GSM1900 class1(1W) |
GPRS |
GPRS multi-slot class 10 GPRS mobile station class B |
Receiving Sensitivity |
<-107dBm |
| |
Interface | |
Analog Input |
One analog input (PIN 13) for fuel sensor |
Digital Input |
One negative trigger input (PIN 16) for panic button, two positive trigger inputs (PIN 7 and PIN 19) to detect ACC, doors or load etc |
Digital Output |
One digital output (PIN 8) to control engine or doors etc |
Two-Way Audio |
PIN 5 and PIN 15 for microphone, PIN4 and PIN 14 for horn |
Serial Port |
One RS-232 port for camera or LCD |
GPS Antenna |
External |
GSM Antenna |
External |
| |
Air Interface Protocol | |
Transmit Protocol |
TCP, UDP, SMS |
Schedule Timing Report |
Position report at preset time interval |
SOS Alarm |
Press panic button for emergent rescue |
Speeding Alarm |
Alarm once over preset speed |
Geo-Fence Alarm |
Alarm once entering or leaving assigned area |
Idling Alarm |
Alarm when engine is on for a long time but vehicle is static |
Fatigue Alarm |
Alarm when vehicle has run for a long time |
External Power Alarm |
Alarm once external power disconnecting |
Remote Control |
Control the digital output through air interface protocol |
| |
General Specifications | |
MCU |
NXP ARM Cortex M3 |
Sensor |
Fuel sensor, accelerator sensor and rotation sensor (optional) |
Casing |
|
Backup Battery |
Internal 6V NiMH batteries |
Power Management |
Full power pathing. Internal batteries start working when external power is exhausted |
Operation Voltage |
DC 9-32V |
Operation Temperature |
-20ºC to +70ºC |
Store Temperature |
-30ºC to +85ºC |
Operating Humidity |
5% to 95% |
Dimension |
108*88.5*32mm |
Weight |
320g |

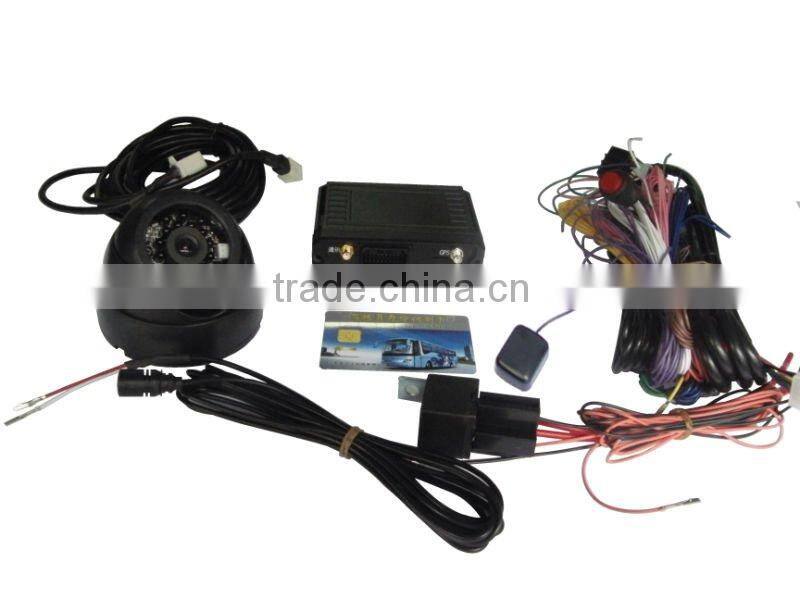

Product Packet:
Number |
Configuration |
Packet |
1 |
GPS device |
Yes |
2 |
GPS antenna |
Yes |
3 |
GSM antenna |
Yes |
4 |
Communication antenna |
Yes |
5 |
Power line |
Yes |
6 |
ACC signal detecting line |
Yes |
7 |
SOS button |
Yes |
8 |
Internal battery |
Yes |
9 |
Empty/full load detecting line |
Optional |
10 |
Door open/lock detecting line |
Optional |
11 |
Microphone |
Optional |
12 |
Horn/ speaker |
Optional |
13 |
Relay for electricity or oil cutoff |
Optional |
14 |
Fuel sensor |
Optional |
15 |
Rotational sensor |
Optional |
16 |
Digital camera |
Optional |
17 |
LCD screen |
Optional |
18 |
IC card |
Optional |
19 |
LCD connection lines |
Optional |
20 |
Installation holders and velcro |
Yes |
21 |
Installation screws |
Yes |
22 |
User manual |
Yes |
23 |
Quality assurance card |
Yes |
