Help CenterEUROSTAR DiSEqC Switch 4 in 1/ Four Way DiSEqC Switch EDS-41
Related Products
-
4.5m VSAT DISH ANTENNA Motorised Factory PriceUS$ 1 - 2,999MOQ: 1 Piece -
2014 Hot Product Shipborne Antenna ku 60cmUS$ 1 - 2,999MOQ: 1 Piece
-
6.2m VSAT ANTENNA MotorisedUS$ 1 - 9,999MOQ: 1 Piece
-
6.2m C BAND VSAT ANTENNA MotorisedUS$ 1 - 29,999MOQ: 1 Piece
-
2014 Hot Product Marine Antenna ku 60cmUS$ 1 - 4,999MOQ: 1 Piece
Specifications
1Diseqc Switch 4x12)Return Loss:8(dB)
3)Freq: 950-2400(MHz)
4)Isolation:20(dB) 5)Impedance: 75ohm
FACTORY PRICE LOWES
ANHUI RISESAT ELECTRONIC CO.,LTD

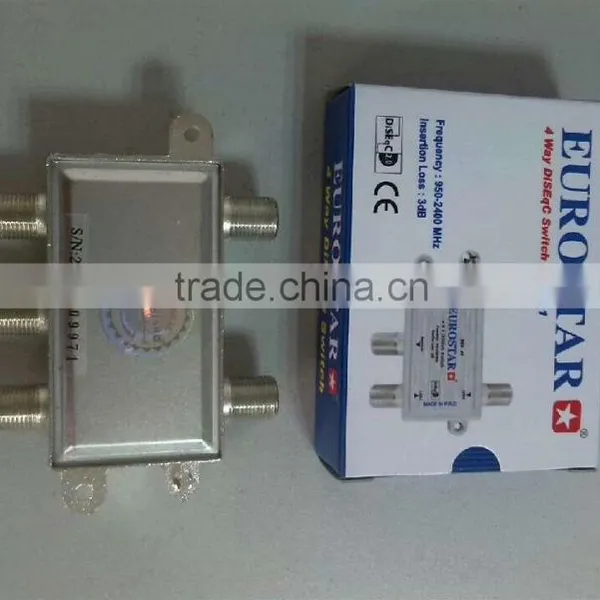

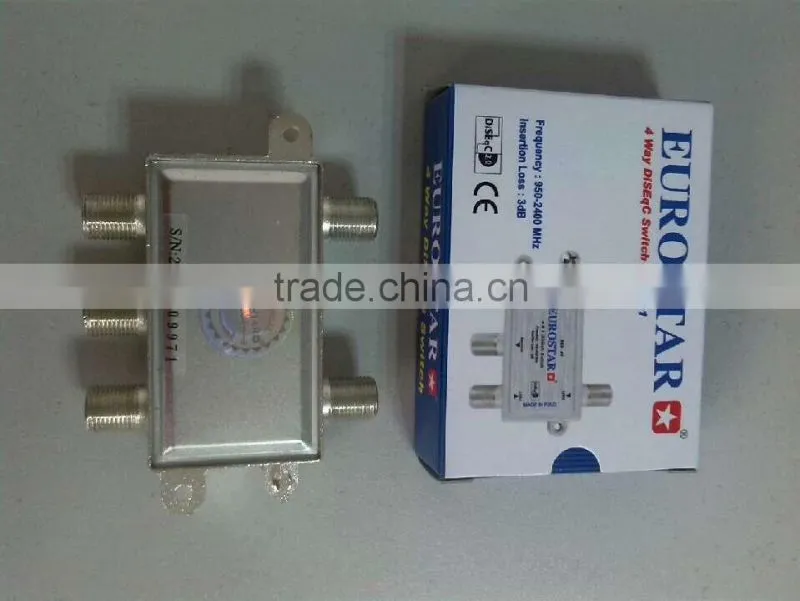

EUROSTAR Diseqc Switch 4x1
1. Zinc die-cast housing, nickel-plated
2. Excellent quality component , professional circuit design and low loss
3. Excellent quality chip , professional program design and compatible with more types of satellite receiver
4. Can work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached
5. Select one of two satellite signals through DiSEqC commands supplied from satellite receiver
6. Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously
7. Support DiSEqC “standby” commands
RS-41A Specifications :
Item |
Specification |
Item |
Specification |
Frequency Range |
950-2400(MHz) |
Normal Working Voltage |
12-20(V) |
Insertion Loss |
3(dB) |
DC Power Consumption |
10(mA) |
Isolation |
20(dB) |
DC Max Power Passing |
500(mA) |
Return Loss |
8(dB) |
Impedance(all ports) |
75(Ω) |
|
Switching Signal : DiSEqC 1.02.0 |
|
Connectors:Ftype female |
contact skype: risesat
MOBILE:0086-15395106310
