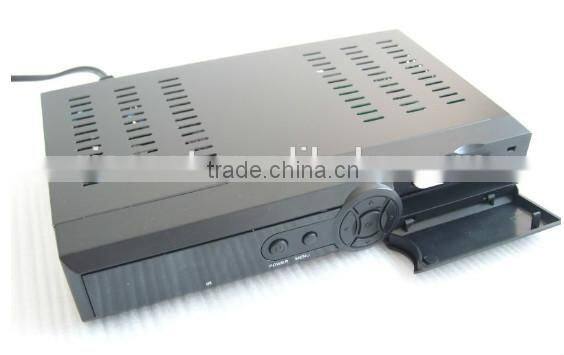

Q5 HD PVR Cable Receiver

Change channel quick < 1s,

Connected to Multi Server same time

Support Multi CAS:Conax, Viaccess, Nagra,Seca

Support NewCamd(Extension), CCCam, MgCamd, Seca, Oscam

Support upgrade software / channel information from server.
Support connect to multi server same time, auto switch for different channel.

HDMI: multi format capable (1080I, 720P, 480P, 480I)

Compressed format and recording: MPEG-2 SD/HD, H.264/MPEG-4,EPG for 7 days.

Support multimedia play (avi, mp3, jpg, etc..)

DVB-C Annex A/C, B

Support PVR / LCN

Audio

Audio output: Stereo, mono, dual, SPDIF optical digital output, PCM, LPCM, WMA,

MPEG 1/2 layer 1/2, MPEG-1,MP3,AAC,AC3,WMA,Dolby
SPDIF: Digital audio output

Audio L/R output
Video
Transport Stream: ISO/IEC 13818-1 MPEG-2, H.264/MPEG-4 AVC
Profile Level: Up to H.264 HD, HP L4.1, Up to MPEG-2 HD, MPHL
Aspect Ratio: 16:9 / 4:3 Letter-Box, Pan & Scan
Video Resolution: up to 1080i

Video Format: PAL, NTSC, SECAM(Option)
Transport Stream: ISO/IEC 13818-1 MPEG-2, H.264/MPEG-4 AVC
Profile Level: Up to H.264 HD, HP L4.1, Up to MPEG-2 HD, MP HL
HDMI: HD digital display, multi format capable (1080I, 720P, 480P, 480I)
Video CVBS output, Audio L/R output
Tuner
RF Input type: F-type connector
Input Impedance: 75Ω
Min signals level: -15 dBmV
Max signals level: 20 dBmV
Input Frequency: 47~862MHz
Bandwidth: 6/7/8MHz
Catching Frequency: ± 150KHz Input reflection: ≥8
Decoding: 16, 32, 64, 128, 256 QAM
Baud rate: 3.6 ~ 6.952 Mbaud
RF loop-through Type: F or IEC
Output impedance: 75Ω
RF out (option): CH3/ CH4
USB: One High-Speed USB 2.0 Port for optional USB PVR up to 1 TB.
Front Panel: Power,Menu,Up,Down,Left,Right
USB2.0 port for supporting external PVR and play out multimedia.
Support USB Hard Disk / Flash memory up to 1TB (1000GB)
Others
General
Operating Temp. : -5-+45°C
Power consumption : 8W. 15W Max.
Power supply : 70-240VAC, 50/60 Hz
Dimension: 220 mm (W) x 170mm (D) x 40mm (H)

9-Pin RS232: Optional
