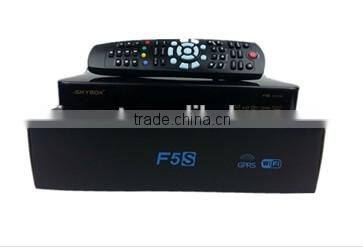

2014 Hot Product Original Gprs Full HD With Scart and uk Plug for UK Libertview F5S
Specifications
1.llibertview F5S with VFD Display2. support cccam, newcam
3.Support USB WiFi &GPRs
4.Ali3601 Processor, 396MHz MI
Anhui Risesat Electronics Co.,LTD
Original gprs full HD with scart and uk plug for UK libertview F5S
Dual CPU, 396 MHz MIPS Processor
Fully compliant MPEG-4 H.264/AVC Main Profile Level 3 & High Profile Level 4.1;
Fully compliant MPEG-2 MP@HL & MP@ML;
Fully compliant MPEG-1 Layer I & II & III, Dolby Digital Audio(AC3);
SCPC & MCPC receivable from C/Ku band satellites;
multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable/1.2/1.3 (USALS) supported)
NIT search supported;
Support MPEG-5;
Support HDMI 1.3;
Support PVR(store in USB disk);
Multimedia files playback(by USB);
Support Electronic Program Guide (EPG) for 7 days;
Teletext and subtitle out through OSD;
Support multi-lingual DVB subtitle and teletext;
Automatic and manual channel scan options;
automatic service scan
channel-change time < 1 second
OSD in many languages and skin-support
Fully Adaptable OSD in Many Languages
(English, French, German, Italian, Spanish, Portuguese, Russian, Turkish, Polish, Arabic, Thai, Swedish, Danish, Greek, Bosnian, Bulgarian, selectable)
LED Display
Multiple display mode: 1080p/1080i/720p/570p/576i/480p;
MPEG-2 / H.264 Hardware decoding
Videotext Decoder
Analog audio output: stereo(L+R);
Screen format:auto, 4:3, and 16:9;
Upgrade software through USB2.0 port;
Powerful program management function, parent lock;
CA 1x slot
10/100Mbit Ethernet Interface
directly bouquet-lists
configuration | 396MHz MIPS CPU 128MB DDRII400 RAM Memory Clock 198MHz 4MB Serial Flash Single Tuner DVB-S2 demodulator |
Power Supply | Input 100V-240V 50/60Hz |
Power Consumption | 30W Max/1W Standby (it's optional by customer’s board) |
RS232 | For FW Upgrading |
Standard Receiver Standard | DVB-S2 Standard (DTSI EN 302 307) |
Input Frequency Range | 950MHz~2150MHz |
Input Signal Level | -25dBm ~ -65dBm |
Demodulation | QPSK, 8PSK, 16APSK |
Transport Stream | MPEG-2 ISO/IEC 13818 Transport Stream Specification |
MPEG Profile Level | MPEG-2 SD, MPEG-2 HD, H.264/AVC SD, H.264/AVC HD |
LNB Power & Polarisation | Vertical +13.5V, Horizontal 18V, Current: MAX 500ma |
Multi Satellite Receiving | 22K switcher, DiSEqC1.0, DiSEqC1.1, DiSEqC1.2, USAL |
Conditional Access System | 1 CA card reader Slots |
A/V Output ports | YPrPb, RCA with CVBS , HDMI 1.3, Left/Right analog audio output(RCA) |
Aspect Ratio | Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box. |
Audio Decoding | MPEG1 Layer I, MPEG1 Layer II, MPEG 1 Layer III, MPEG2, AC3. |
Audio Mode | Stereo/MONO/Left/Right |
DVR supporting | DVR with USB HDD, Time shifting with USB HDD |
USB2.0 High Speed Host | 1USB2.0 Port, USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card or FW Upgrading. |
File System | FAT12, FAT16, FAT32, NTFS |
Media Supporting | JPG, BMP, MP3, WMA |
Ethernet Interface | 10Mbit |
Storage Temperature | 0ºC To +50ºC |
