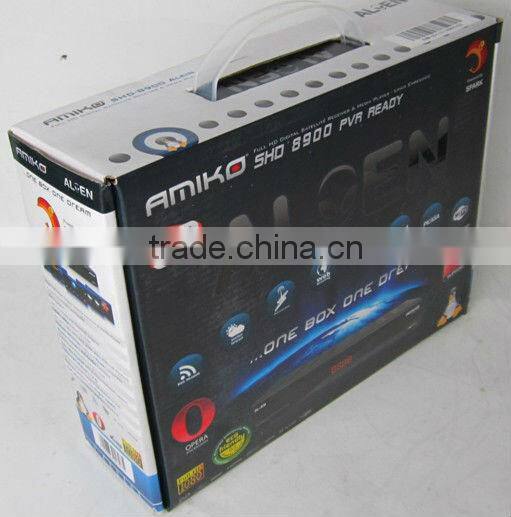

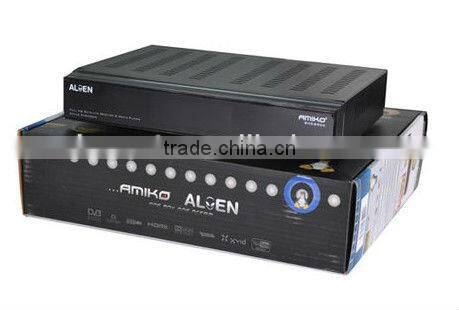

HOT Linux System Enigma2 Support 3G and Youtube Amiko 8900HD

Anhui Risesat Electronics Co.,LTD

  HOT Linux system Enigma2 support 3G and Youtube  Amiko 8900HD

Specifications

1. Award winning Dual-boot Linux Receiver
2. Conax Embedded Card Reader
3. Wireless Network & 3G Modem Support
4. Full HD

Main Feaure

MPEG-Fully DVB-S / DVB-S2 HD compliant

Linux Embedded OS

Conax Embedded Card Reader

Endless possibilities with Plug-In support

YouTube, SHOUTcast Radio, and Picasa Compatible

Weather forecast & Rss Reader Functions

S/PDIF for digital audio or Dolby Digital Bit-Stream output

DiSEqC 1.0, 1.1, 1.2 and USALS

Endless channels (TV and Radio) programmable

Multilingual menu text support

Channel list editing

Favourite channel list editing

True-color On-Screen Display (OSD)

Full Picture In Graphic (PIG) function

Electronic Program Guide (EPG) for on screen channel information

Subtitle supported

Teletext supported by software emulation

Parental lock facility by channel and program event

Program and Channel information transfer from receiver to receiver

HDMI HD Video/Audio Output

USB 2.0 Host

LED Display for service information

RTC (Real-Time-Clock)

Time Shift

Video Recording

Recording one channel and Time Shifting another channel (optional)

FullHD 1080p output via HDMI

AVI, MKV, MPG, TS, WMA, WMV, M2TS, FLV, DAT, ASF, MP3 playback

Software Upgrade support via USB, RS232 or Internet

Message, FAQ and User Manual support

Download files from FTP server

Award winning Dual-boot Linux Receiver

Conax Embedded Card Reader

Wireless Network & 3G Modem Support

Full HD-1080p

SYSTEM RESOURCES
Main Processor: 450M Hz based CPU
Flash Memory: Nor flash: 8MB X 1 ; Nand flash:512MB X 1
DDR SDRAM: DDR2 128MB x 2

Tuner/Front-end
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Loop Through: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V, Horizontal: +18V/+19V, Current: Max. 500mA, Overload Protection
22KHz Tone: Frequency: 22±1KHz
DiSEqC Control: Amplitude: 0.6±0.2V, Version 1.0, 1.1 1.2, USALS Available
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps, Convolution Code Rate
1/2, 2/3, 3/4, 5/6,7/8,1/4,1/3,2/5,3/5,4/5,8/9,9/10 and Auto

MPEG TS A/V Decoding
Transport Stream: MPEG-2, H.264
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p,1920*1080i, 1920*1080p
Audio Decoding: MEPG-1 layer I/II, Mpeg2 layerII, Dolby digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz

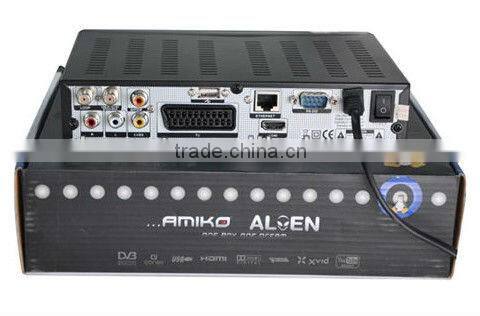

A/V & DATA INPUT/OUTPUT
TV-SCART: Video CVBS/RGB output, Audio L/R output
RCA A/V: Video CVBS output, Audio L/R output
S/PDIF: Coaxial, Digital Audio or Dolby Digital Bit Stream Output
RS-232C: Transfer rate 115.2Kbps, 9 pin D-sub Type
RJ-45: 10M/100M
USB: One USB 2.0 slot Compatible for Host
HDMI: VER1.2, Type A

POWER SUPPLY
Input Voltage: Free Voltage (100~240V AC, 50/60Hz)
Power Consumption: 20W MAX

PHYSICAL SPECIFICATION
Size[W*H*D]: 220mm*46mm*169mm
Net Weight: 1.0KG
Operation Temperature: 0°C~+45°C
Storage Temperature: -10°C~+70°C
Storage Humidity: 5%~95% RH (Non-Condensing)
