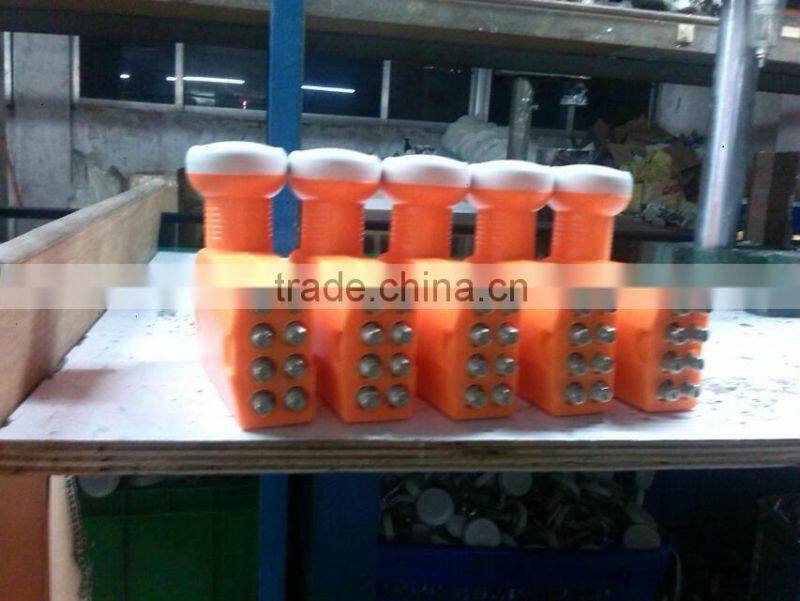

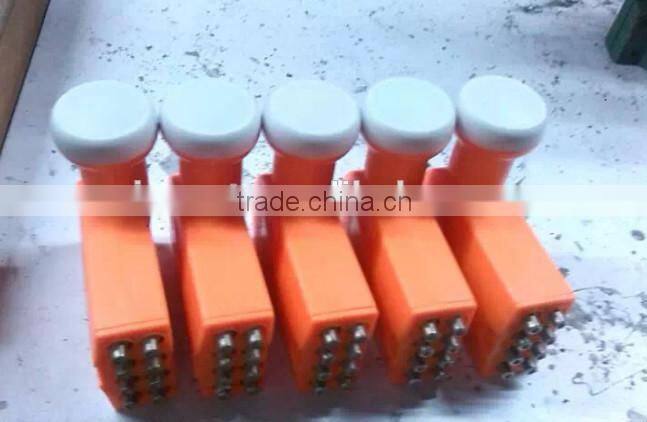

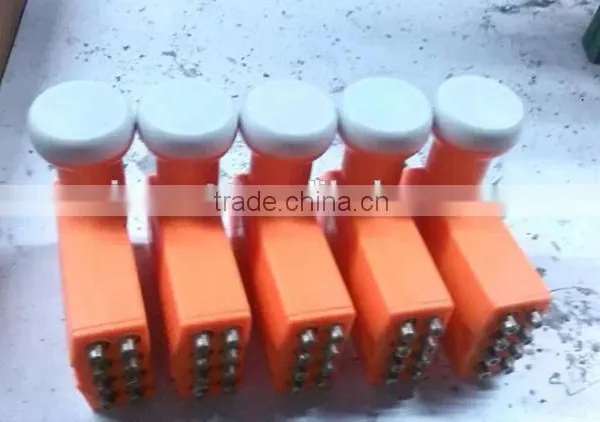

KU Band Universal OCTAL LNBF

Name: KU Band Universal OCTAL LNBF
Brand: Risesat
Availability: InStock

FOB Price

US$ 9.92 - 12.89 / Piece

100 Pieces(Min. Order)

Port Shanghai or Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Anhui, China		Brand Name	Risesat
Model Number	RS-L108

Product Description

Specifications

KU band universal OCTAL LNBF
1.Low Noise Figure 0.3dB
2.HDTV digital ready
3.Easy installation
4.Waterproof

Anhui Risesat Electronics Co.,LTD

KU band universal OCTAL LNBF

Product Description

Universal Ku Band Octal LNB, Ku Band LNB with 8 Outputs
Input Freq:10.7-12.75Ghz
Output Freq:950-2150MHZ
Noise Figure: 0.3dB

Universal Ku Band Octal LNB, Ku Band LNB with 8 Outputs
Input Freq: 10.7-12.75Ghz

Output Freq: 950-2150MHZ

L.O.Freq: 9.75/10.6Ghz

Noise Figure: 0.3dB

Conversion Gain: 50-70dB

A. Input Frequency

1. Low Band: 10.7~11.7Ghz

2. High Band: 11.7~12.75Ghz

B. Output Frequency

1. Low Band: 950~1950MHZ

2. High Band: 1100~2150MHZ

C. L.O. Frequency

1. Low Band: 9.75 Ghz

2. High Band: 10.6Ghz

D. L.O. Stability

1. Low Band: ±1MHZ(-40 TO +70)

2. High Band: ±1MHZ(-40 TO +70)

E. Noise Figure: 0.3dB

Conversion Gain: 50~70dB

Input VSWR: 2.5:1(max)

Output VSWR: 2.0:1(max)

F. Supply Voltage

1. Ca: 11.5~14.0V(Vertical Polarization) 13 VDCType

2. Cb: 16.0~19.0V(Horizontal Polarization)

Direct Current 150mA

Control Signals:

1. Low Band: Ca or Cb (see below)

2. High Band: Cc or Cb(see below)

3. Cc: Continues 22KHz

Operation Temperature: -40 TO +70

Storage Temperature: -40 TO +80

Relative Humidity: 0%~95%

Phase Noise:

1. -50dBc/Hz——1kHz(max)

2. -75dBc/Hz——10kHz(max)

3. -95dBc/Hz——100kHz(max)

Input Frequency Range	LOW Band:10.7~11.7GHz
	High Band:11.7~12.75GHz
Output Frequency Range	Low Band: 950 - 2050MHz
	High Band: 1100 - 2150MHz
Input VSWR	2.5:1
Output VSWR	2.5:1
L.O. Frequency	Low Band 9.75GHz
	High Band 10.6GHz
L.O. Stability	±2MHz @ (-40c~70c)
L.O. Phase Noise	-70dBc/Hz (1KHz Offset)
	-90dBc/Hz (10KHz Offset)
	-110dBc/Hz (100KHz Offset)
Conversion Gain	60dB (TYP)
Gain Flatness	±0.5dB/6MHz; ±2.5dB/IN BAND
Noise Figure	±0.3dB (Typ)
Image Rejection	50dB(Typ)
Output Power	+5dB (Min) (at 1dB gain compression)
Cross Polarization Discrimination	23dB(Min)
DC SUPPLY VOLTAGE	11~14.5V (V),15.5~22V (H)
SUPPLY CURRENT	130mA (MAX)
LOW/HIGH BAND SWITCHING	Low Band: 0Hz HIGH BAND: 22KHz±4KHz
Output Connector	75Ω "F" type female
RELATIVE HUMIDITY	0%~95%
Operating Temperature	-30 °C to +70 °C

SKYPE CONTACT: risesat

EMAIL: risesat*

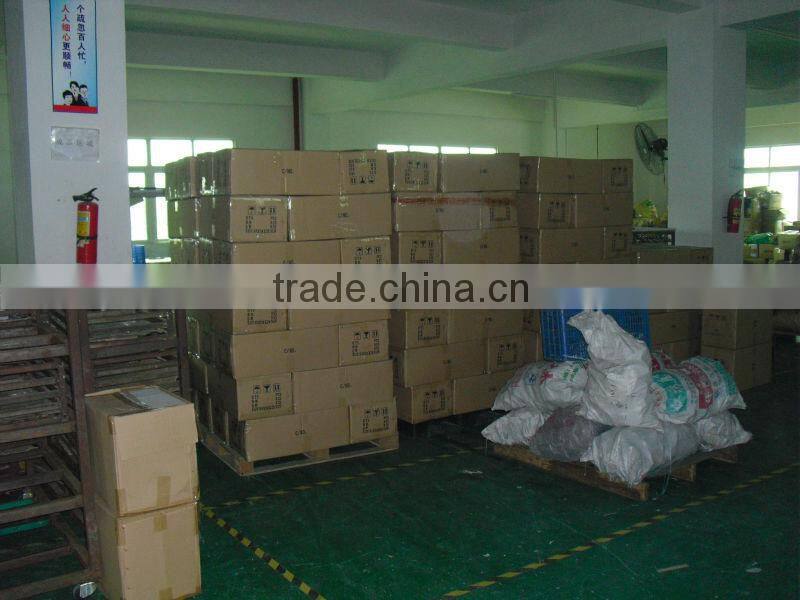

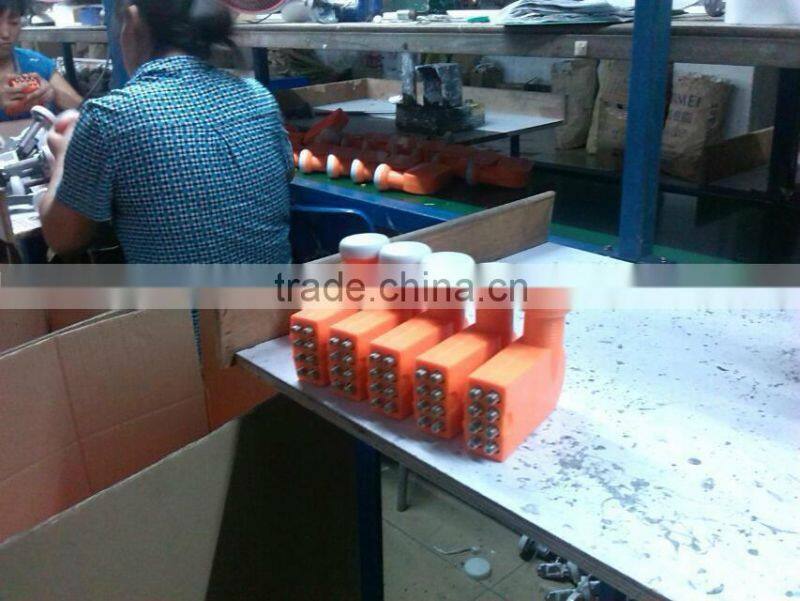

WELCOME TO VISIT OUR FACTORY
