KU Single LNB Lowest Factory Price

Name: KU Single LNB Lowest Factory Price
Brand: Risesat
SKU: 126335833
Availability: InStock

US$ 0.98 - 1.18 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Risesat

Model Number:

STRONG STARSAT

Anhui Risesat Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Risesat

Model Number STRONG STARSAT

Specifications

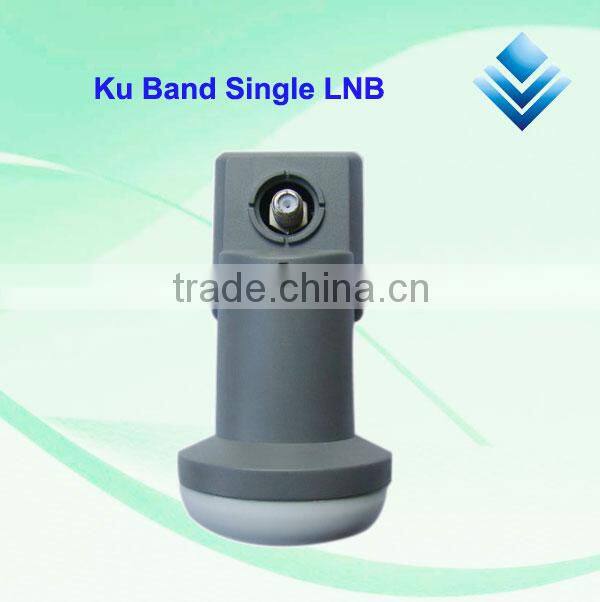

KU Single LNB lowest factory price
1.Universal LNBF
2.universal high gain signal
3.factory Price lowest
4.HDTV digital rea

KU Single LNBF lowest factory price

Works with SD&HD(MPEG2&4)signal
Ku Band Frequencies 11.7-12.75 GHz
IN STOCK KU band Quad lnb fast delivery

KU band Quad LNB

Works with SD & HD(MPEG2&4) signal

Wideband Input Frequency Range from 10.70 GHz ~ 12.75 GHz

Output Frequency Range from 950 MHz ~ 2150 MHz

Superior Low Phase Noise for Digital Reception

Low Noise Figure & High Isolation performance

Excellent D.R.O Stability

Easy Installation of Digital Reception

Guaranteed Water Proof

Input Frequency Range	LOW Band:10.7~11.7GHz
	High Band:11.7~12.75GHz
Output Frequency Range	Low Band: 950 - 2050MHz
	High Band: 1100 - 2150MHz
Input VSWR	2.5:1
Output VSWR	2.5:1
L.O. Frequency	Low Band 9.75GHz
	High Band 10.6GHz
L.O. Stability	±2MHz @ (-40c~70c)
L.O. Phase Noise	-70dBc/Hz (1KHz Offset)
	-90dBc/Hz (10KHz Offset)
	-110dBc/Hz (100KHz Offset)
Conversion Gain	60dB (TYP)
Gain Flatness	±0.5dB/6MHz; ±2.5dB/IN BAND
Noise Figure	±0.3dB (Typ)
Image Rejection	50dB(Typ)
Output Power	+5dB (Min) (at 1dB gain compression)
Cross Polarization Discrimination	23dB(Min)
DC SUPPLY VOLTAGE	11~14.5V (V),15.5~22V (H)
SUPPLY CURRENT	130mA (MAX)
LOW/HIGH BAND SWITCHING	Low Band: 0Hz HIGH BAND: 22KHz±4KHz
Output Connector	75Ω "F" type female
RELATIVE HUMIDITY	0%~95%
Operating Temperature	-30 °C to +70 °C
