Graphics Card PCBA Assembly / pcba tablet pc pcba
Description
1. Single sided PCB, double sided PCB & multilayer PCB with competitive price, good quality and excellent service.
2. FR-4, FR-4 High TG, CEM-1, CEM-3, Aluminum base material.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from prototype to medium and batch production.
| Item | Capability |
| PCB Layers | 1-24 Layers |
| Base Material | FR4,CEM1,CEM3,ALU,FR2,FR1,Polymide,Rogers,Arlon,Teflon |
| Copper Thickness | 0.5-6 OZ |
| Impedance Control | Yes |
| Peeable Mask | Yes |
| Min.Line Width | 0.75mm |
| Min.Line Spacing | 0.75mm |
| Min.Annual Ring PTH | 0.15mm |
| PTH | 0.20mm±0.05mm |
| Non-PTH | 0.15mm±0.05mm |
| Hole Aspect Ratio | 10 |
| Min.Board Thickness | Singel&Double side 0.2mm |
| Multilayer(4,6,8,10 layer)0.4mm,0.55mm,0.8mm,0,8mm | |
| Max Board Sixe | 600*900mm,400*1200mm |
| Solder Mask Pitch | 0.1mm |
| Outline Tolerance | ±0.15mm |
| V-CUT Tolerance | ±0.10mm |
| thickness Tolerance | MIL-P-13949 Class 2 |
| Gold Finger | 5u"-50u" |
| Surface Finish | HASL,LF HAL,Immersion Gold,Immersion silver,Flash Gold,Flux Coat&OSP |
| Special Capability | Burial/blind vias,Impedance Control,via plug,BGA,Gold Finger |
| Test | Fly probe test,E-test,Inspection AOI test |
| Certificate | RoHS,ISO9001:2000,ISO14001:2004,SGS,UL |
PCB assembly capability and services
1. Single-sided, double side & multi-layer PCB. FPC. Flex Rigid PCB with competitive price,
good quality and excellent service.
2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material, Polyimide, etc.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Quantities range from sample to mass order<
5. 100% E-Test
I

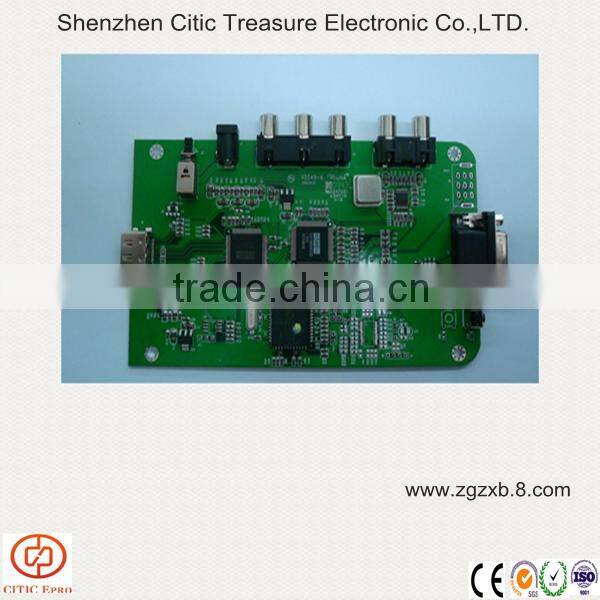

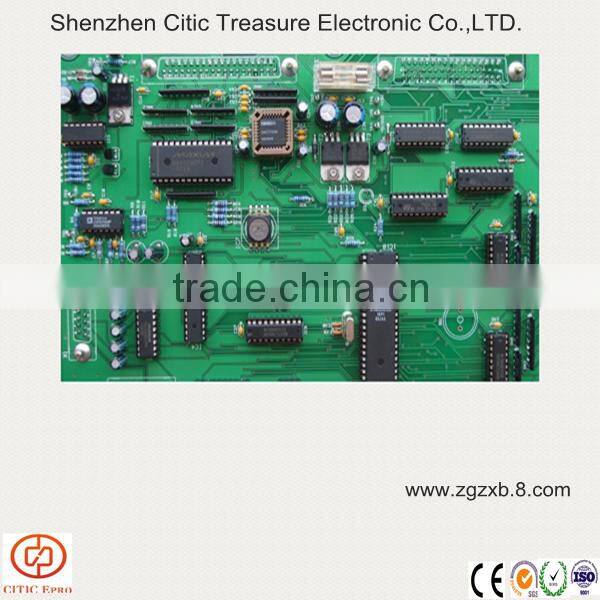

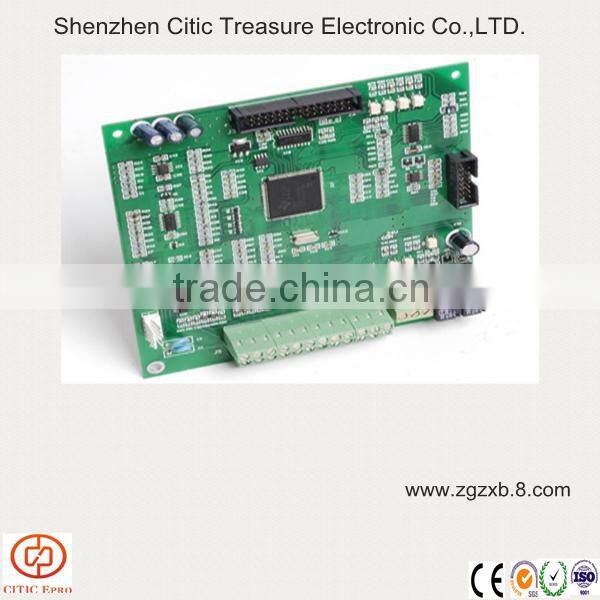

Product show
Trade Terms
Payment terms: T/T,Western Union,30% advance,the balance paid before shipment please
Packaging: First put in a polybag per 50 pcs usually,then packed in a big carton;According to the clients'requirements for special orders.
Shipping: By air,by sea,expressage
Thanks for your visiting
Any interest ,please don't hesitate to contact with us
Contact :Kitty Kuang
Skype: live:sale01_133
whatsapp:+86 13047919653
