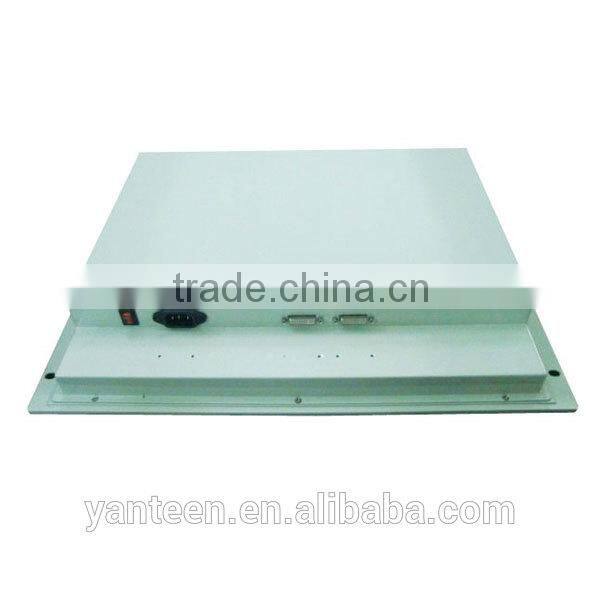

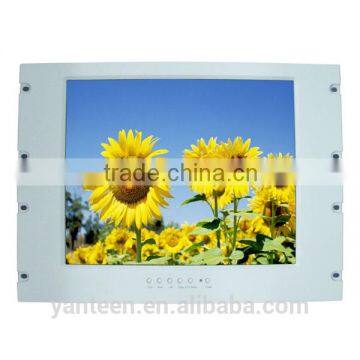

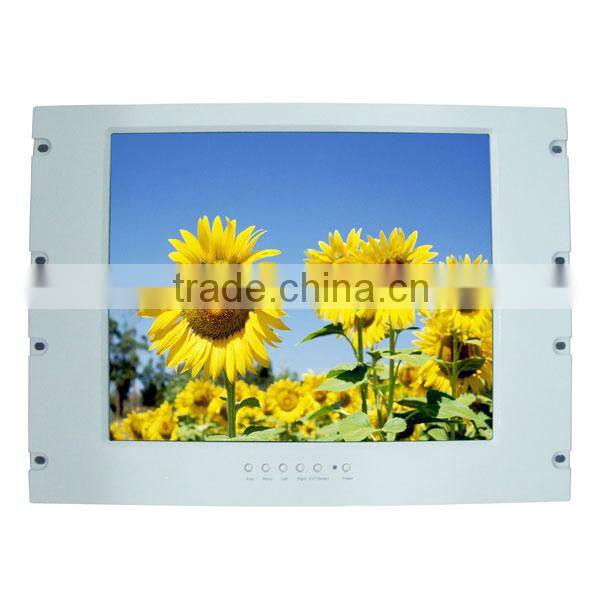

Help CenterFront Plate IP65 17inch Rack Mount Industrial LCD Mnitor With Vandal-proof or Anti-glare Protective Glass
Related Products
-
Rack Mount 17inch Industrial Touchscreen Monitor With Powder Coated Aluminum Front BezelUS$ 450 - 600MOQ: 1 Unit -
Wide Operational Temperature 17inch Embedded Touch Screen Lcd Monitor,kiosk Lcd Monitor With Low Power ConsumptionUS$ 100 - 119MOQ: 1 Unit
-
Aluminum Front Bezel 19inch Rack Mount Industrial LCD Mnitor With Front Plate IP65US$ 480 - 600MOQ: 1 Unit
-
Rack Mount 15inch 17inch 19inch Industrial Touchscreen Monitor With Wide Operational TemperatureUS$ 200 - 350MOQ: 1 Unit
-
Front Plate IP65 19inch Embedded Touch Screen Lcd Monitor,kiosk Lcd Monitor With Low Power ConsumptionUS$ 480 - 600MOQ: 1 Unit
Feature:
· 17'' AUO, Mitsubishi or NEC industrial grade TFT LCD panel.
· Front plate IP65, with vandal-proof or anti-glare protective glass.
· Front bezel is 7U high and 17'' , suit for mounting into 17'' cabinet.
· VGA and DVI inputs.
· 12V DC power input.
· Powder coated aluminum front bezel.
· Designed for industrial control, factory automation, HMI and military displays.
· Wide operational temperature range, -20~+60°C.
· Low EMI, low power consumption, durable performance.
Specification:
| Model No. | YTID-R1701 | |
| LCD panel | Size/Aspect ratio | 17''/5:4 |
| Pixel numbers | 1280(H)*1024(V) | |
| Brightness | 380 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Viewing Angle | 170° (H)/160° (V) | |
| Colors | 16.7 M | |
| Input terminals | PC signal | D-Sub15 pin*1 |
| Power plug | 12 VDC jack | |
| OSD Control | Menu, Auto, Up, Down, Power | |
| Operating condition | Temperature | 0°C to 50°C (Operating) |
| -20°C to 70°C (Storage ) | ||
| Humidity | 10% RH to 90% RH (Operating) | |
| 10% RH to 90% RH (Storage) | ||
| Touchscreen (optional) | 5-wire analog resistive (>92% light transmission) | |
| Interface: USB / RS232 | ||
| Power & | Input Voltage | 12V DC,(AC adapter,100~240VAC,50/60Hz) |
| Power rating | Operation | 48 watt |
| (support DPMS) | Stand-by | ‹5 watt |
| Weight | N.W./G.W. | 4.8Kgs/6.2Kgs |
| External Dimension | ||
| Mount | Rackmount | |
| Optional | Input: VGA+DVI,VGA+DVI+AV | |
| Touch screen(Resistive,SAW,Capacitive) | ||
| PC Mainboard | ||
| Speakers | ||
| Protect glass(Screen protected,double coating) | ||
Applications:
1.Embedded into all kinds of equipment as display device
2.Telecom, network engine room host monitor
3.Car display (subway, car, etc.) advertising machine
4.Military standard monitor,Reinforcement level display
5.Industrial machinery, numerical control equipment, engineering machinery,
6.Train, subway, hospitals, government agencies, port monitoring and display
7.4S auto shop, product display, automatic vending machine, courier easy box
8.Self registration, bank line access number, terminal self - help machine,
9. Medical equipment,Terminal inquiry machine, automation equipment
Shipping and Package:
Gift&neutral box
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Express(UPS,DHL,Fedex,EMS,etc) is available.
Sea and Air delivery is available
From Monday to Saturday 8:00am-17:30pm for Shipping Time.
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible 24 hours sale service
Yan Teng Technology Co.,Ltd is a professional manufacturer of LCD display through development and production together under one roof.LCD display including, Touch screen monitor, LCD CCTV monitor, Open frame monitor,
Digital signage, LCD video wall, LCD kiosk.We also deal in all kinds of name brand Indrustrial LCD panel.
Q: Why choose Yan Teng?
A: 1. Professional Industrial touch screen monitor manufacture for years with great experience .
2. Own factory , you could share direct factory price .
3. Quality guaranteed by our QC.
4. Low price , but in high quality .
5. OEM/ODM supported
Q: What's the time of delivery ?
A: It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample order , 15-20 working days for mass production after receipt of payments .
Q: What paying methods do you accept ?
A: T/T and WestUion .
Q: How is your warranty policy for goods ?
A: We focous on our after-sale service , and all our products share 12 months' warranty .
*Pls feel free to contact us for any questions or special requirements . Thank you so much for your coopreation !
