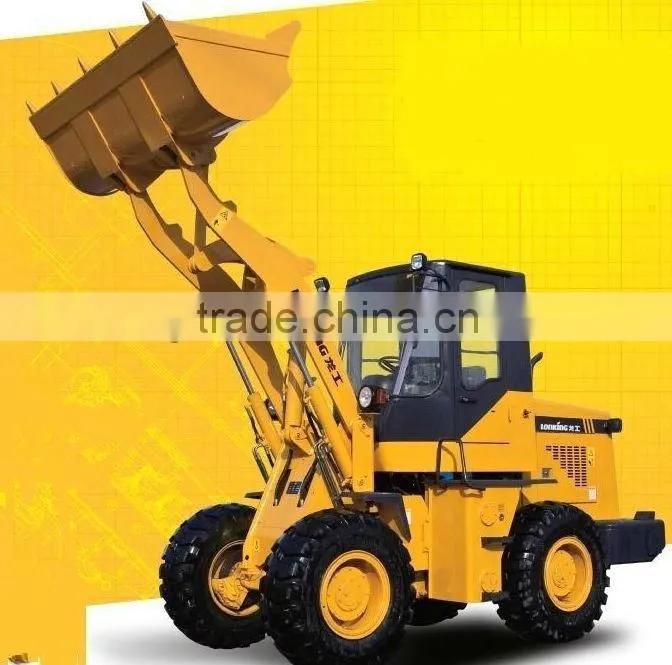

Help CenterLonking 1.8 Ton Wheel Loader CDM818D
Related Products
Specifications
Model Number:CDM818DBucket Capacity:1.05m3
Rated Load:1800kg
Rated Power:63kw
Operating Weight:5600kg
Model Number:CDM818D
Bucket Capacity:1.05m3
Rated Load:1800kg
Rated Power:63kw
Operating Weight:5600kg
The appearance is compact and nice. Good cost performance will help you create more fortune.
1. Hydraulic steering system, convenient and easy steering
2. Frame style chassis structure, simple in structure and easy in maintenance
3. Air conditioning and heating system provide better operation environment
4. Front and rear frame use long span connecting structure for reduce the stress in hitch pin
5. Anti-abrasion integral cutting edge with teeth and adapters, prolong the life of bucket.
6. Long wheelbase and centrally symmetrical structure make the front and rear tracks superposed on each other for extending the life of tire.
7. Optional implements: High dump, Coal bucket, Log fork, Quick disconnect

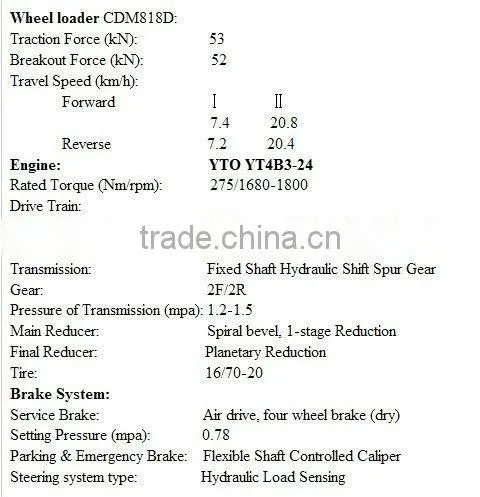

Overall data of wheel loader CDM818D | |||||
Rated loading capacity |
kg |
1800 |
|||
Bucket Capacity |
m³ |
1.05 |
|||
Breakout force |
kn |
52 |
|||
Max dumping height |
mm |
2700 |
|||
Opreating weight |
kg |
5600 |
|||
Total cycling time |
s |
9.4 |
|||
Overall dimensions | |||||
Overall length |
mm |
5600 |
|||
Overall width |
mm |
2200 |
|||
Overall hight |
mm |
2930 |
|||
Engine | |||||
Engine model |
|
LuocaiYTR4108G94-1 |
|||
Rated power/speed |
kw/rpm |
60/2400 |
|||
Rated torque/speed |
N·m/rpm |
275/1680-1800 |
|||
Calibration of fuel consumption rate |
g/kw·h |
242 |
|||
Total displacement |
L |
4.4 |
|||
Travel speed | |||||
Forward-gear(F/R) |
km/h |
2.47 |
|||
Forward-gear(F/R) |
km/h |
0.88 |
|||
Reverse-gear(F/R) |
km/h |
2.52 |
|||
Reverse-gear(F/R) |
km/h |
0.898 |
|||
Drive axle and tires | |||||
Main reducer |
|
Spiral bevel, 1-stage Reduction |
|||
Final reducer |
|
Spur gear cylindrical geat planetary drive |
|||
tire |
|
16/70-20 |
|||
Working hydraulic system | |||||
System working pressure |
Mpa |
14 |
|||
