Logistics Equipment LG16Be features:
Advanced Ergonomical Design
Equipped with AC motor, powerful and economical
Wide View Mast
Easy to repair
Pipeline:high pressure oil line use the first brand oil tube .it has excellent resistance which can ensure its long service life
Hydraulic system:double pump confluence, small system flow,low pwer consumption,reliabele performance excellent operating performance
Cabin :wirth air conditioner and heating and heating and repture embrace explosion proof wide view and comfortable seats and flexible control
Mast box_type internal extent mast special all –round bearing in creasing the lifting performance
Fork :use the cascade fork with hydraulic fork positoner easy operation and reduce drivers’ labor intensity
Steering axle: Adopt transverse oil cylinder type bridge full hydraulic flexible and light reliable transmission Torque improved technology reliable performance convenient mainatenance Smooth transmission and convenient operation
Control system: pilot valve control device to make the work efficiently whch can reduce the drivers labor intensity
Tyre: high class brand pneumatic tyre resistance to wear and sting high strengths tyre it can bear the heavy laoded ,safe and reliable
Following is the detailed technical parameter
| Model | LG16B | |
| Power type | Battery | |
| Rated capacity (Kg) | 1600 | |
| J Load centre (mm) | 500 | |
| h1 STD Max.lifting height (mm) | 3000 | |
| h3 Free lifting height (mm) | 125 | |
| L5*W*T Fork size (mm) | 920×100×35 | |
| Mast tilt angle (deg) | ||
| L3 Front overhang (mm) | 410 | |
| Overall dimension | ||
| L1 Overall length(with fork)(mm) | 3033 | |
| W1 Overall width (mm) | 1080 | |
| h2 Mast lowered height (mm) | 1987 | |
| h4 Overhead guard height (mm) | 2135 | |
| R1 Min.turning radius (mm) | 1900 | |
| Min.intersecting aisle (mm) | 3728 | |
| Speed(load/unload) | ||
| Max.traveling speed (km/h)(F/R) | ||
| Max.lifting speed (mm/s)(load/unload) | 260/420 | |
| Max.gradient (load/unload)(%) | ||
| Dead weight (kg) | 3120 | |
| S/P Tread(front/rear)(mm) | 890/920 | |
| L2 Axle distance (mm) | 1370 | |
| Min.ground clearance | ||
| m2 Mast (mm) | 105 | |
| Tire | Front | 6.5-10-10PR |
| Rear | 5.00-8-10PR | |
| Motor | Travel(AC)(kW) | 7.5 |
| Lift(AC)(kW) | 11 | |
| Battery(V/Ah) | 48/480 | |
| Working pressure(Mpa) | 16 | |
| Controller | ZAPI | |
All of our products have been approved with CE and ISO9001

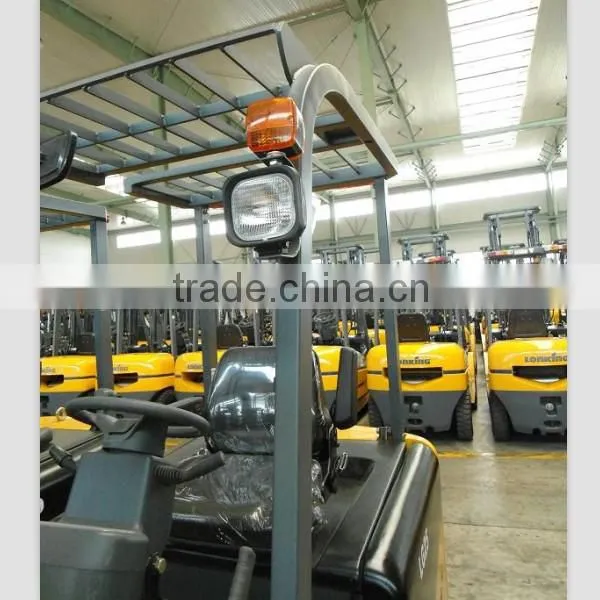

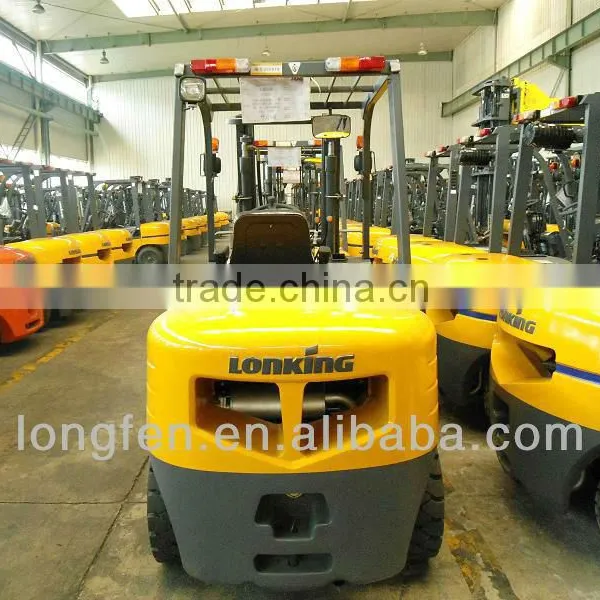

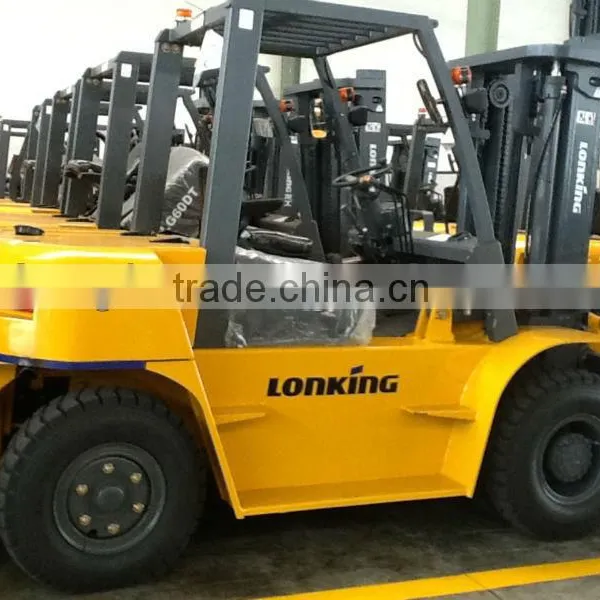

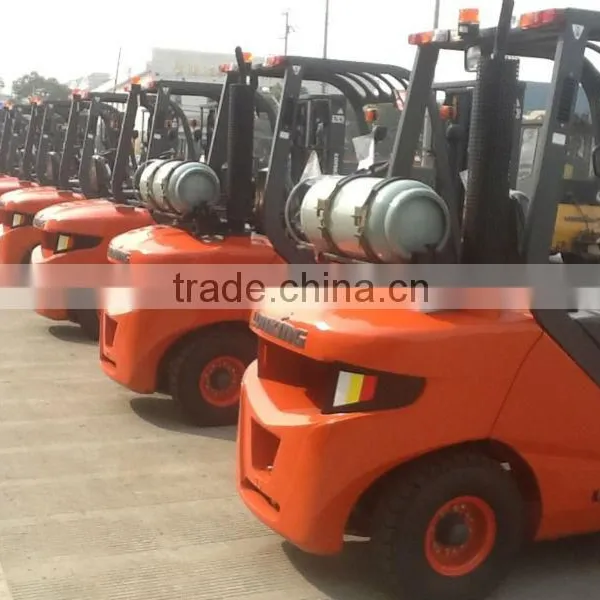

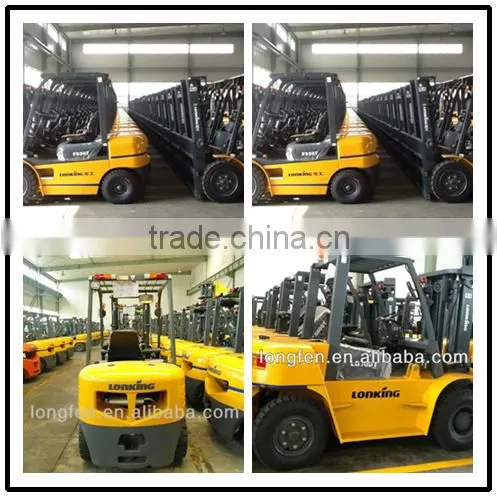

Product pictures

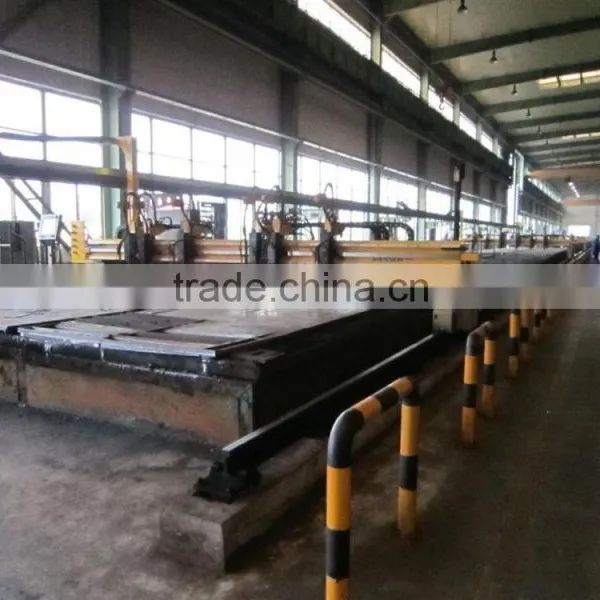

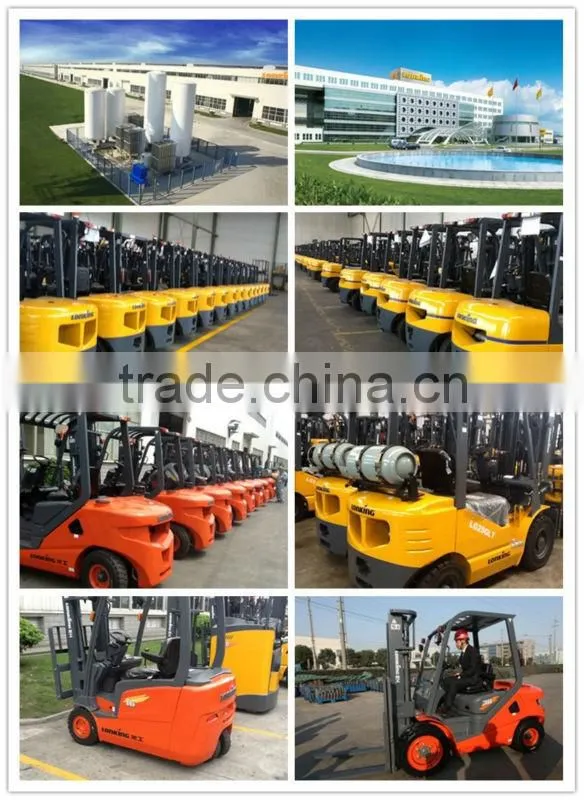

Our company
Shanghai lonking manufacturer for wheel loader forklift ,excavator ,road roller all of our product was approved with CE AND ISO9001 ,With many years imported experience we can assure the products quality
