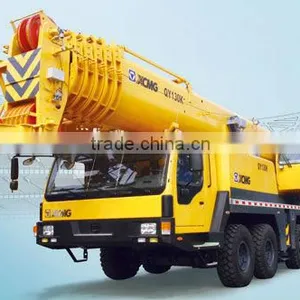

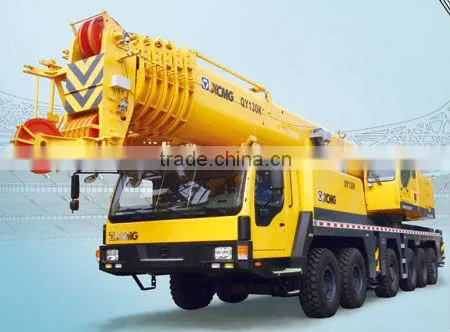

Help CenterQY130K
Related Products
Specifications
Overall length:14950mmOverall width:3000mm
Overall height:3950mm
Classificatory |
Item |
Unit |
Parameter |
|
Outline dimension |
Overall length |
mm |
14950 |
|
Overall width |
mm |
3000 |
||
Overall height |
mm |
3950 |
||
Axle base |
Axle 1, Axle 2 |
mm |
1420 |
|
Axle 2, Axle 3 |
mm |
2420 |
||
Axle 3, Axle 4 |
mm |
1875 |
||
Axle 4, Axle 5 |
mm |
1350 |
||
Axle 5, Axle 6 |
mm |
1400 |
||
Wheel base |
mm |
2610/2307 |
||
Mass |
Total mass in travel state |
kg |
62000 |
|
Axle load |
Axle 1, Axle 2 |
kg |
8800/8800 |
|
Axle 3, Axle 4 |
kg |
9200/12700 |
||
Axle 5, Axle 6 |
kg |
12700/9800 |
||
Power |
Crane superstructure engine |
Rated power |
kw/(r/min) |
162/2100 |
Rated torque |
N.m/(r/min) |
854/1400 |
||
Rated speed |
r/min |
2100 |
||
Crane carrier engine |
Rated power |
kw/(r/min) |
390/1800 |
|
Rated torque |
N.m/(r/min) |
2400/1080 |
||
Rated speed |
r/min |
2000 |
||
Travel performance |
Travel speed |
Max. travel speed |
km/h |
70 |
Min. stable travel speed |
km/h |
2.1 |
||
Min. turning diameter |
m |
24 |
||
Min. ground clearance |
mm |
275 |
||
Approach angle |
(°) |
23 |
||
Departure angle |
(°) |
14 |
||
Braking distance (at 30km/h) |
m |
≤ 10 |
||
Max. grade-ability |
% |
40 |
||
Fuel consumption for 100km |
L |
80 |
||
| |
