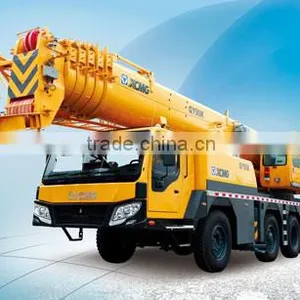

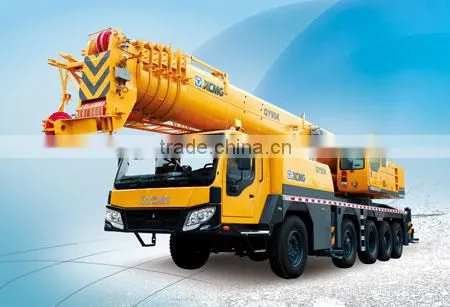

Help CenterQY90K
Related Products
Specifications
Overall length:14700mmOverall width:2800mm
Overall heigh:3900mm
Dimension |
Unit |
QY90K |
Overall length |
mm |
14700 |
Overall width |
mm |
2800 |
Overall height |
mm |
3900 |
Weight |
||
Total weight in travel |
kg |
53000 |
Front axle load (axle 1, 2, 3) |
kg |
9000/9000/13000 |
Rear axle load (axle 4, 5) |
kg |
13000/9000 |
Power |
||
Engine model |
TAD720VE |
|
Engine rated power |
kW/(r/min) |
174/2300 |
Engine rated torque |
N.m/(r/min) |
845/1400 |
Travel |
||
Max. travel speed |
km/h |
80 |
Min. turning diameter |
m |
23 |
Min. ground clearance |
mm |
315 |
Approach angle |
° |
20 |
Departure angle |
° |
16 |
Max. grade ability |
% |
45 |
Fuel consumption for 100km |
L |
60 |
Main performance |
||
Max. rated total lifting capacity |
t |
90 |
Min. rated working radius |
m |
3 |
Turning radius at turntable tail |
m |
4.51 |
Max. lifting torque |
kN.m |
3234 |
Base boom |
m |
12.3 |
Fully extended boom |
m |
55 |
Fully extended boom+ jib |
m |
71 |
Longitudinal outrigger span |
m |
7.5 |
Lateral outrigger span |
m |
7.1 |
Working speed |
||
Boom luffing time |
s |
75 |
Boom full extension time |
s |
600 |
Max. swing speed |
r/min |
≥2 |
Max. speed of main winch (single rope) (no load) |
m/min |
≥120 |
Max. speed of aux. winch (single rope) (no load) |
m/min |
≥85 |
