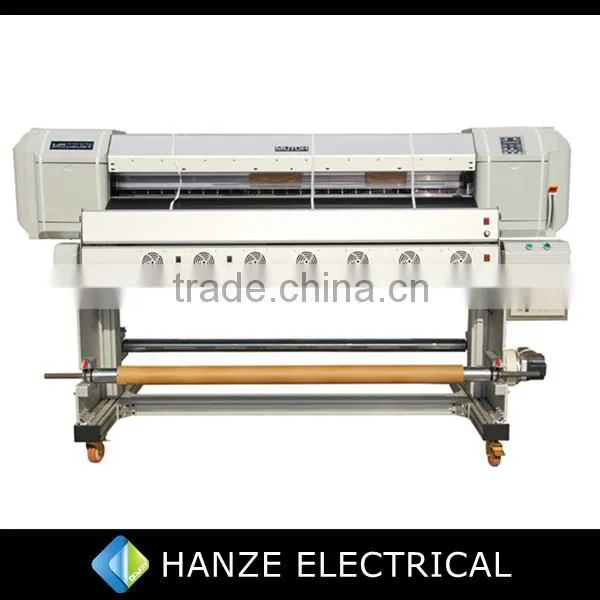

Sublimation Printing Machine for Polyester Fabric
US$ 33,000 - 35,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingao Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Machine de SublimationUS$ 2,200 - 7,800MOQ: 1 Set -
Mimaki Sublimation Fabric Printing MachineUS$ 2,500 - 14,500MOQ: 1 Set
-
Mimaki Sublimation Digital Printing MachineUS$ 2,500 - 25,000MOQ: 1 Set
-
Mimaki Sublimation Transfer PrinterUS$ 2,500 - 14,500MOQ: 1 Set
-
Mimaki Digital Sublimation PrinterUS$ 2,500 - 25,000MOQ: 1 Set
Condition
New
Plate Type
Other
Place of Origin
Shandong, China
Brand Name
Aprint machinery
Model Number
Mutoh VJ1638
Usage
Cloths Printer
Automatic Grade
Automatic
Voltage
AC 220V, 15A 50HZ
Gross Power
3500W
Dimensions(L*W*H)
2,880 mm x 1,150 mm x 851 mm + 2450X1050X1180MM
Weight
543KG
Certification
CE Certification
After-sales Service Provided
Engineers available to service machinery overseas
Sublimation printing machine for polyester fabric

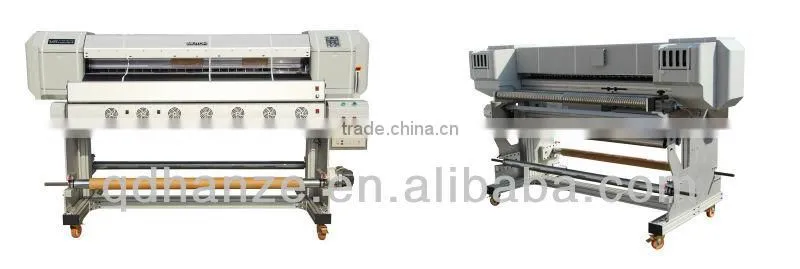

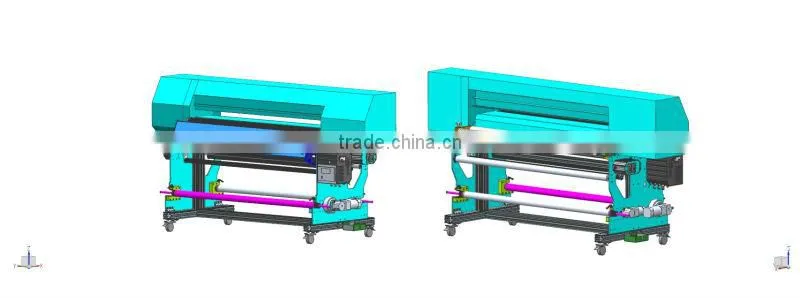

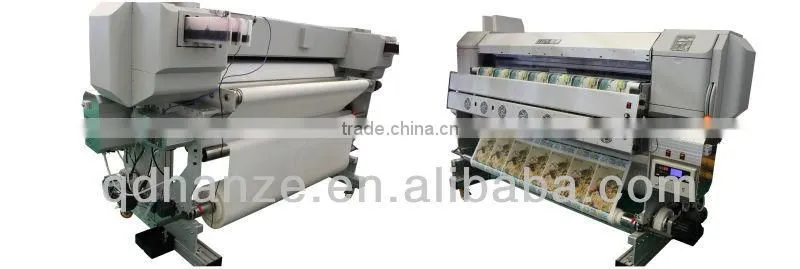

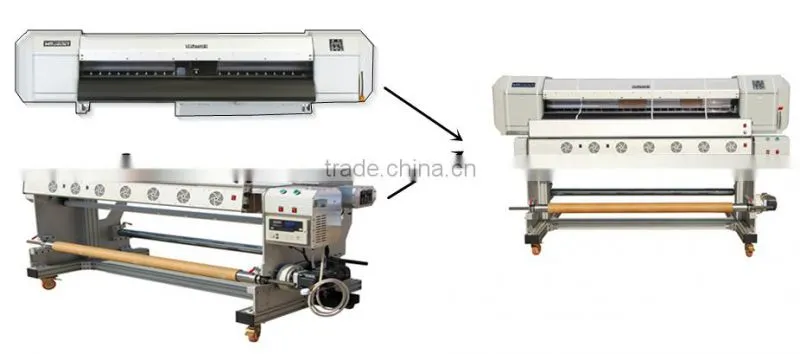

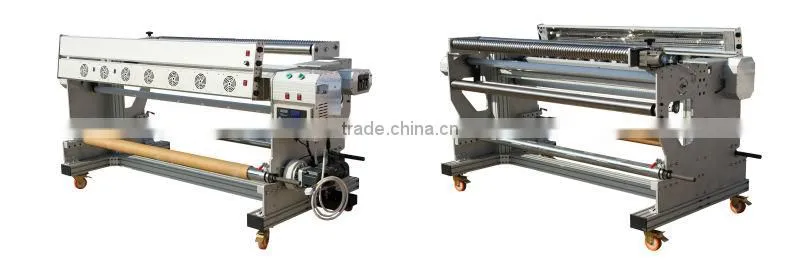

As you can see in the picture below,our solution for MUTOH 1638/1638w/1604 ...1.6meter series printers ,we combined the original MUTOH engine with our solution:heavy duty tension structure,tension controller ,heavy duty feeding system , heavy duty take-up system,roller bars,both inside and outside dryers, ink introduction groove -- gutter and our whole set of stand ,etc.With our solution make it possible that MUTOH monofunctional paper printing printer becomes extremely versatile and commercial production
|
|
|
|
| Parameter table of MUTOH VJ-1638 is attached in the end of the sheet |
|
| MUTOH 1638/1638W/1604 Wide Direct-to-textile and Dye Sublimation Printing Solution | ||
| ♥ High print quality,speed and miscellaneous | ||
| ♥ Typical production speeds up to 48 m2/h | ||
| ♥ Dual Epson DX7 heads design with latest drop-on-demand piezo inkjet technology | ||
| ♥ Heavy duty tension structure load capacity up to 800 KILOGRAMS | ||
| ♥ Environmentally friendly printing – high level of operator safety | ||
| ♥ Dye sublimation ink - print on dye sublimation paper | ||
| ♥ Direct disperse ink - print directly on polyester fabric | ||
| ♥ Direct reactive ink - print directly on cotton,silk,linen | ||
| ♥ 900 - 1625 mm floor-to-ceiling production oriented printer | ||
| ♥ The specificities of 1.6m digital textile printer | ||
| ♥ The professional solutions for the digital printing of home textile | ||
| ♥ All kinds of home textiles less than 1.6m can be workong in the machine | ||
| ♥ The drive system is high efficiently,economical and practical | ||
| ♥ Bedclothes,fabric curtain,stretch ceiling ,small elastic cloth and non-stretch fabrics. | ||
| Features of Direct-to-textile solution: | ||
| Dimensions (L*W*H) | 2450X1050X1180MM | |
| Gross Weight | 260KG | |
| Load Capacity | 800KGS | |
| Media core diameter | 3 Inch | |
| Max. media diameter | 600MM | |
| Power rate | 3KW | |
| Voltage | 220V | |
| Model Name | VJ-1638 | |
| Printer Technology | Drop-on-demand Micro Piezo Inkjet Technology | |
| Print Head Nozzle Configuration | 180 nozzles x 8 lines x 2 Heads | |
| Print Head Height Adjustment | 1.5mm / 2.5mm / 4.0mm | |
| Ink Cartridge | Ink Types | Sublimation ink, water-based pigment ink |
| Ink Color | 4 Colors , 6 color or 8color option | |
| Capacity | 220ml / 440ml / 1,000ml Cartridge (±5%) | |
| Maximum Media Width | 1,625mm | |
| Minimum Media Width | 900mm | |
| Media Thickness | 0.3mm ~ 2.8mm | |
| Maximum Roll Media Weight & Media Core Diameter | 30kg / φ150mm (3 inches scroller) | |
| Maximum Print Width | 1,615mm | |
| Maximum Print Length (*1) | 200,000mm | |
| Print Margin | 5mm (front) / 5mm (Back) / 5~25mm (Left / Right) | |
| Print Modes | Quality1-4 / Graphic1-2 / Banner 1-4 | |
| Print Resolutions | 1440dpi / 720dpi / 360dpi | |
| Maximum Production Speed (*2) | 48 m2/h | |
| Heating System | Pre-heater / Platen-heater / After-heater | |
| Interface | Ethernet 100BASE-TX/10BASE-T | |
| Printer Language | MH-RTL pass | |
| Memory | 256MB | |
| Power Supply | AC100-240±10%(50/60Hz) | |
| Power Consumption | Power OFF | 3.8W |
| Operation | 1100W (Main) / 1200W (Heater) | |
| Noise Level | 69.8dB | |
| Operating Environment | Temperature 20~32°C Humidity 40~60% (no condensation) |
|
| Certification | MET(USA), CE(EU), FCC(USA), VCCI(Japan), | |
| RoHS(EU), CB REPORT | ||
| Dimensions | (W)2,698 mm x (D)885.5 mm x (H)1,261 mm | |
| Printer Weight | Body | 187kg |
| Stand | 34kg | |
| Packing Dimension | Body | 2,880 mm x 1,150 mm x 851 mm / 283kg |
| Stand | 2,177 mm x 395 mm x 250 mm / 38kg | |
| Option | 1,000ml Cartridge Adapter VJ-HCIPADPT | |
| Cutter Blade VJ-CB | ||
| Spectrovue VM-10 | ||
| White Reference VM-WRP | ||
