Intruduction

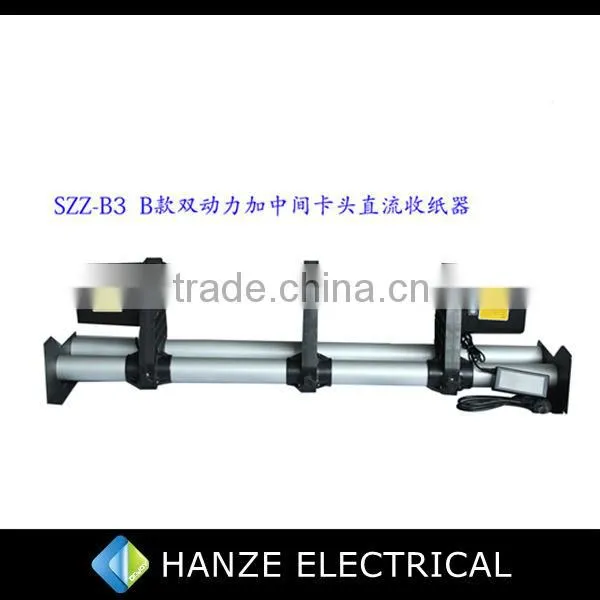

New take up system for Roland printer can be matched to all kinds of Large format Printers helping to feed media and take up after printing.
Easy installation by fixing it on the printer stand. Do not need to change original printer structure. It can be match to all kinds of LFP model on the market with less than 1.8 meters width. Movable media holder can match variable media width. Equipped damper can adjust the strength of the take up motor.
Many humanity design adapts for taking up many kinds of media such as paper, adhesive car sticker and even fabric etc. Both clockwise and anticlockwise running is possible.
Features
1. Model: SZZ-B3
2. Normal specification are 61cm, 130cm, 160cm and 180cm.
3. Strong double round bars as it's base. It is recommended model for oversea market.
4. Be equipped with paper holder. Users could print two rolls of media at the same time if the printing image is the same. So the production output doubled with this unique structure.
5. Double high quality DC motors are equipped.
|
Model
|
Voltage
|
Power rate |
Torque |
Max. media diameter
|
Media core diameter
|
Load Capacity
|
SZZ-B3 |
24V |
30W |
5.25N.M |
280mm
|
2 inches and3 inches
|
15-30KGS
|
The take up system products in our company:
