Introduction
Hanze Take up reel can be matched many printers such as Mimaki, Mutoh, Roland, Epson printer etc helping to feed media and take up after printing for large format printing.
Easy installation by fixing it on the printer stand. Do not need to change original printer structure. It can be match to all kinds of LFP model on the market with less than 1.8 meters width. Movable media holder can match variable media width. Equipped damper can adjust the strength of the take up motor.
Many humanity design adapts for taking up many kinds of media such as paper, adhesive car sticker and even fabric etc. Both clockwise and anticlockwise running is possible.
Feature

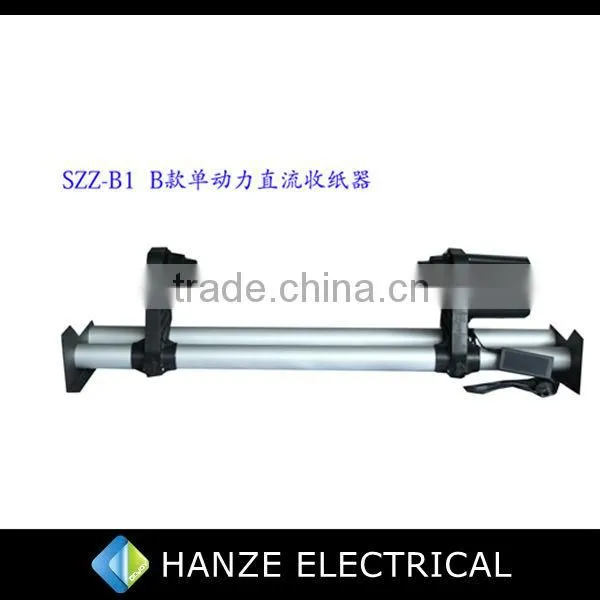

1. Model: SZZ-B1
2. Normal specification are 61cm, 130cm, 160cm and 180cm.
3. With single direct current motor as engine.
4. Strong double round bars as it's base. It is most recommended model for oversea market because of high quality motor.
| Model | Voltage | Power rate | Torque | Max. media diameter | Media core diameter | Load Capacity | |
| SZZ-B1 | 24V | 30W | 5.25N.M | 280mm | 2 inches and 3 inches | 15-30KGS | |
The take up products in our company
