Introduction

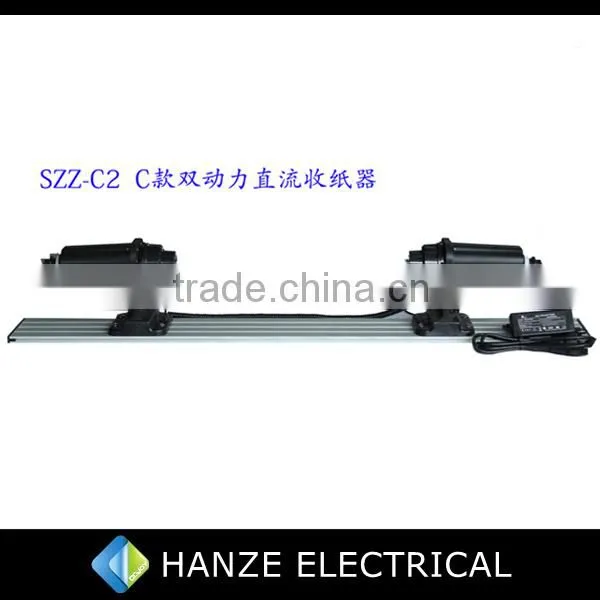

Generic Version Media Take Up Roller can matched be matched to all kinds of Large format Printer helping to feed media and take up after printing.
Easy installation by fixing it on the printer stand. Do not need to change original printer structure. It can be match to all kinds of LFP model on the market with less than 1.8 meters width. Movable media holder can match variable media width. Equipped damper can adjust the strength of the take up motor.
Many humanity design adapts for taking up many kinds of media such as paper, adhesive car sticker and even fabric etc. Both clockwise and anticlockwise running is possible.
 |
|
|
Multifunction take up system can be easily fixed on printer stand without changing printer structure.
|
2 inches and 3 inches media core are both compatible.
|
|
|
|
Double motor PK single motor, more powerful and longer life-span.
|
Take-up-system with beam type assembly interface can be easily fixed on printer stand without any drilling.
|
|
|
|
Torque adjustable, taking-up-direction adjustable. The motor will stop automatically when meet a certain force and it will automatically run again after the force released.
|
Triangle structured strong base. Maximum 280mm in diameter rolled media can be taken up on it.
|
|
|
|
Durability designed roll paper holder with wide paper tube holding teeth.
|
Durability designed support frame with implanted copper screw nut.
|
Features
1. Model: SZZ-C2
2. Normal specification are 61cm, 130cm, 160cm and 180cm.
3. Strong beam as it's base. It is most recommended model for oversea market because of high quality motor.
|
Model
|
Voltage
|
Power rate |
Torque |
Max. media diameter
|
Media core diameter
|
Load Capacity
|
SZZ-C2 |
24V |
30W |
5.25N.M |
280mm
|
2 inches and 3 inches
|
15- 30KGS
|
