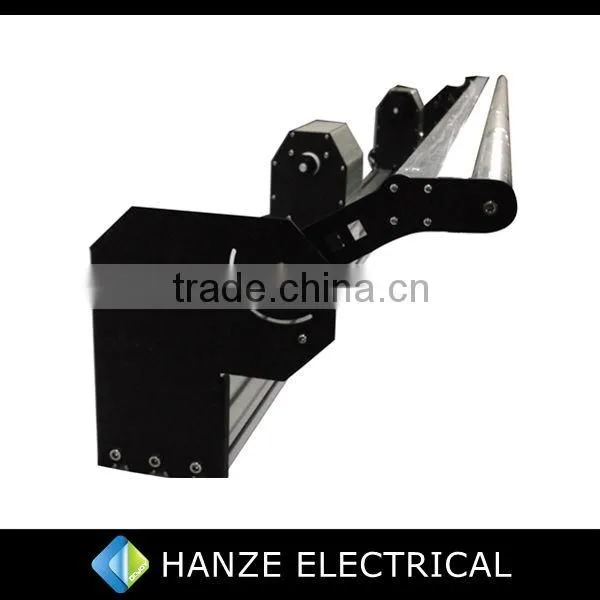

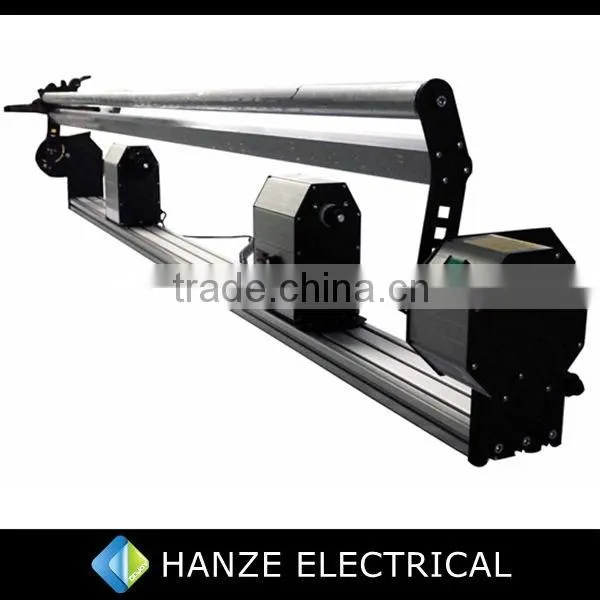

Take Up Reel for MUTOH
Newly on market Take Up Reel with tension system is controlled by sensor.
A lever rod is designed in this system to spread the weight of printing media evenly on the rod. This structure tremendouly decreased the force to the motor of Take Up Reel for MUTOH . Print head striking problem is avoided. Wrong printing length caused by stepping value is also solved. If a printer dryer could be also matched together, unattended printing is become true.
This Take Up Reel for MUTOH product can be used on advertisement industry, digital fabric printing industry. It can be used in paper, fabric, leather and PVC printing.Specifications
1.Take Up Reel for MUTOH can collect media in neat roll 2.Be used in all LFP,easy installation 3.Tension structure give better performance
Advantages of Hanze ZL-HS Take Up Reel for MUTOH
1. Reasonable Design Structure
Hanze Take Up Reel for MUTOH firstly introduced Damping Structure as to keep the printing media in tension status when collecting printed media. It reduced the chance that print head may rub the Printing Media caused by material wrinkle. And Hanze ZL-HS Take Up Reel for MUTOH with tension structure gives more reasonable tension to the printing media. Therefore printing performance shall improved since the printer pinch can feed the media with less force. If combined with the Feeding system with tension structure, it will be the perfect solution as to receive the best printing performance. Hanze Take Up Reel for MUTOH is equipped with more powerful direct current motor.
2. Universal Interface Design, Easy installation
Compatible to all Large Format Inkjet Printer model on the market, user can just adjust the Interface Metal Plate as to fix the printer stand of different Large Format Printer model without any drilling on the original printer stand.
3. Adjustable Printing Media width
Take Up Reel for MUTOH can adjust the width according to the Printing Media.
4. Adjustable Torque
The motor torque is adjustable as to meet different Printing Media weight. Turn the damping structure clockwisely to enlarge the torque while turn the damping structure anticlockwisely to decrease the torque.
5. Adjustable rewinder direction
User can choose to Take Up the media with Printed Images inner side of roll or with Printed Images outside of roll.
Take Up Reel for MUTOH is controlled by sensor . which is adapt for several types of printers such as Epson, Mutoh, Roland, Mimaki etc,for large format printing fields.
A lever rod is designed in this system to spread the weight of printing media evenly on the rod. This structure tremendouly decreased the force to the motor of take up reel. Print head striking problem is avoided. Wrong printing length caused by stepping value is also solved. If a printer dryer could be also matched together, unattended printing is become true.
This product--- Take Up Reel for MUTOH can be used on advertisement industry, digital fabric printing industry. It can be used in paper, fabric, leather and PVC printing.
Features
1. Model: ZL-HS for MUTOH
2. Normal specification are 61cm, 130cm, 160cm and 180cm.
3. Strong Aluminum Beam as it's base. It is most recommend model for heavy duty machine.

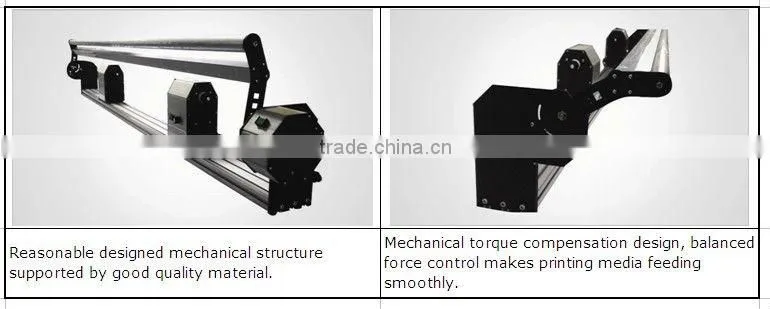

4. With lever structure so that media can be kept in tension in the taking up process. Reduced the chance of print head striking uneven media.
5.Max. media diameter 280mm. Overload weight is at 50KGS.
6.Equipped with force adjustable Direct current motor.
|
Model
|
Voltage
|
Power rate |
Torque |
Max. media diameter
|
Media core diameter
|
Load Capacity
|
ZL-HS |
24V |
30W |
5.25N.M |
280mm
|

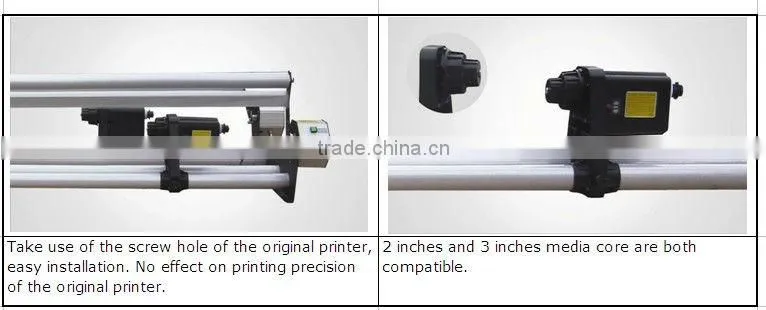

2 inches and3 inches
|
50KGS
|

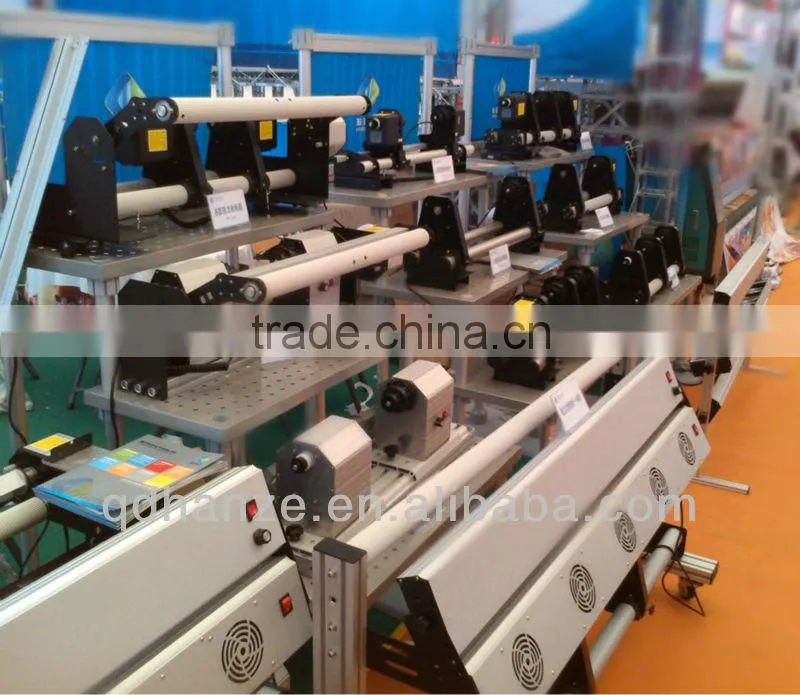

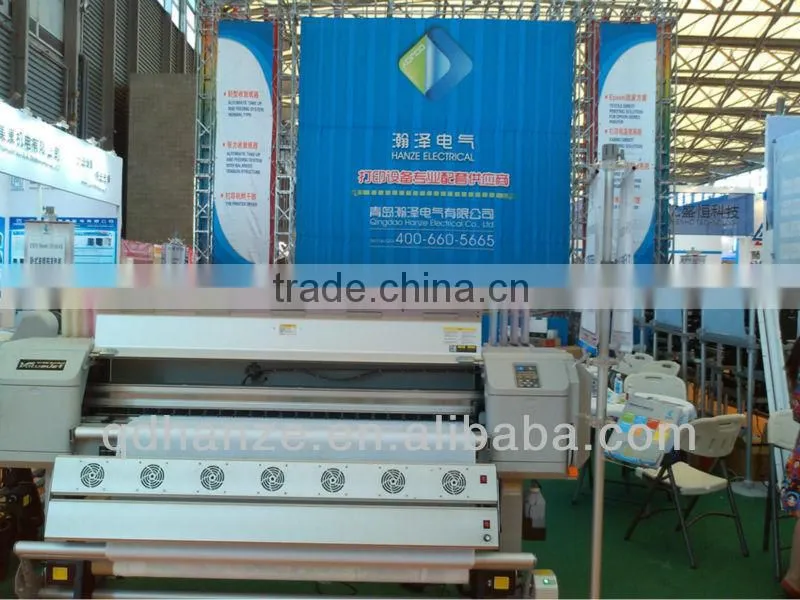

SHOWS ON FACTURE AND EXPS
