Products name: MM series pulse valve
Valve body and cover are pressure die cast aluminum alloy . Normally, diaphragms are made from Buna N elastomer, and are suitable for temperatures ranging from -40 degrees F to 180 degrees F. Viton material diaphragms are option for high temperature applications.
MM series 2.5" port size CA type pulse valve
Voltage: AC220V, DC24V, AC24V and so on!
Thread: G, NPT, PT and so on
Diaphragm repair kits order code:
Model |
Diaphragm Kits | |
| Nitrile | Viton | |
| CA/RCA25MM | K2501 | K2503 |
| CA/RCA40MM | K4000 | K4007 |
| CA/RCA50MM | K5000 | K5004 |
| CA/RCA62MM | K5000 | K5004 |
| CA/RCA76MM | K7600 | K7601 |
| CA/RCA102MM | K10200 | K10201 |
CA sereis pulse jet valve specification:
| Type | Orifice | Port Size | No Of Diaphragm | KV/CV |
| CA/RCA25MM | 25 | 1" | 1 | 26.24/30.62 |
| CA/RCA45MM | 40 | 1 1/2" | 2 | 39.41/45.99 |
| CA/RCA50MM | 50 | 2" | 2 | 62.09/72.46 |
| CA/RCA62MM | 62 | 2 1/2" | 2 | 106.58/124.38 |
| CA/RCA76MM | 76 | 3" | 2 | 165.84/193.54 |
| CA/RCA89MM | 76 | 3" | 2 | 220.68/265.65 |
Shipment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order in 1 week after receive your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: Standard export carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union
1" CA-25T Solenoid Pilot Operated Valve size

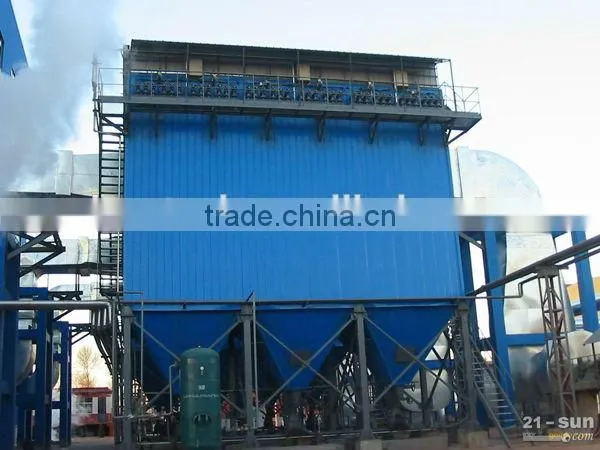

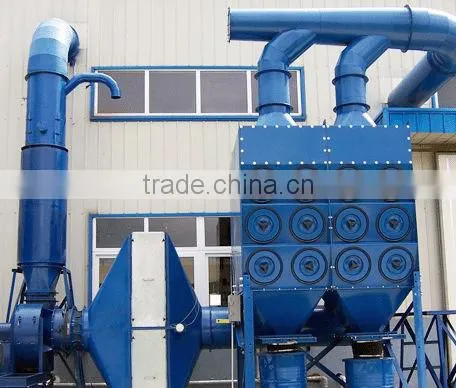

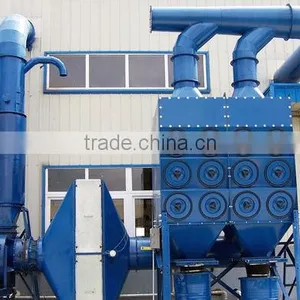

Application of CA series dust collector valve
