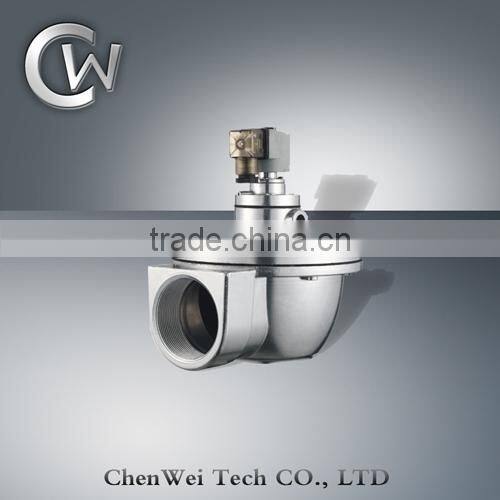

Help Center2.5 Port CA-62T Pulse Valve
Related Products
Specifications
1. Ordering Code: CA-50T, AC220V2. Valve body: ADC aluminum alloy
3. Structure: Right angle
4. Port: 2.5"
5. Type: GOYEN
Products name: 2" port CA-50T pulse valve
Valve body and cover are pressure die cast aluminum alloy . Normally, diaphragms are made from Buna N elastomer, and are suitable for temperatures ranging from -40 degrees F to 180 degrees F. Viton material diaphragms are option for high temperature applications.

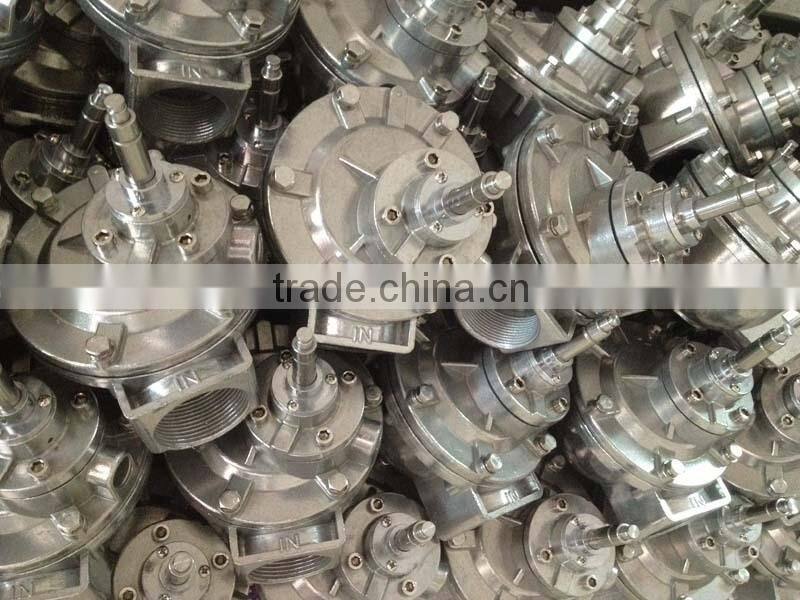

Pulse valve under manufacturing
T series 2.5" port size CA pulse valve
Voltage: AC220V, DC24V, AC24V and so on!
Thread: G, NPT, PT and so on
CA sereis pulse valve specification:
Type |
Orifice |
Port Size |
No Of Diaphragm |
KV/CV |
CA/RCA15T |
15 |
1/2" |
1 |
2.5/2.9 |
CA/RCA20T |
20 |
3/4" |
1 |
12/14 |
CA/RCA25T |
25 |
1" |
1 |
20/23 |
CA/RCA45T |
40 |
1 1/2" |
2 |
44/51 |
CA/RCA50T |
50 |
2" |
2 |
91/106 |
CA/RCA62T |
62 |
2 1/2" |
2 |
117/136 |
CA/RCA76T |
76 |
3" |
2 |
144/167 |
Shipment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order in 1 week after receive your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: Standard export carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union
1" CA-25T Solenoid Pilot Operated Valve size

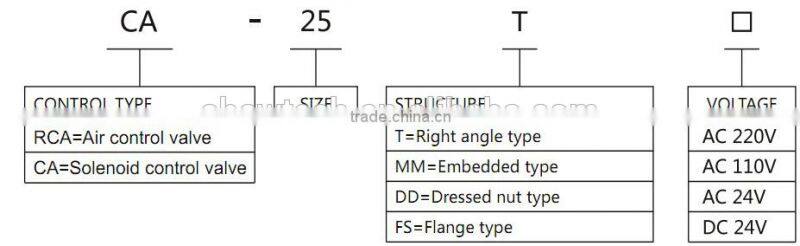

CA series pulse valve order code
