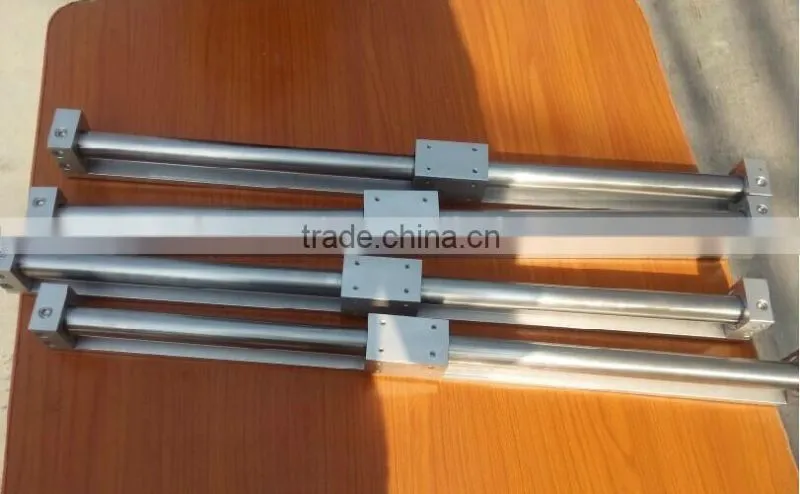

CY1R32X1200mm Long Stroke Magnetic Coupling Rodless Cylinder
Features:
1.CY1R32-1200mm rodless pneumatic cylinder are very wide used in automationline
2.Normally bore size: 6mm, 10mm, 15mm, 20mm, 25mm, 32mm, 40mm, 50mm,63mm.
3.Use rubber cushion standard type to keep the cylinder operatingsoomthly, safely and quietly.
4.Easier and various mounting.

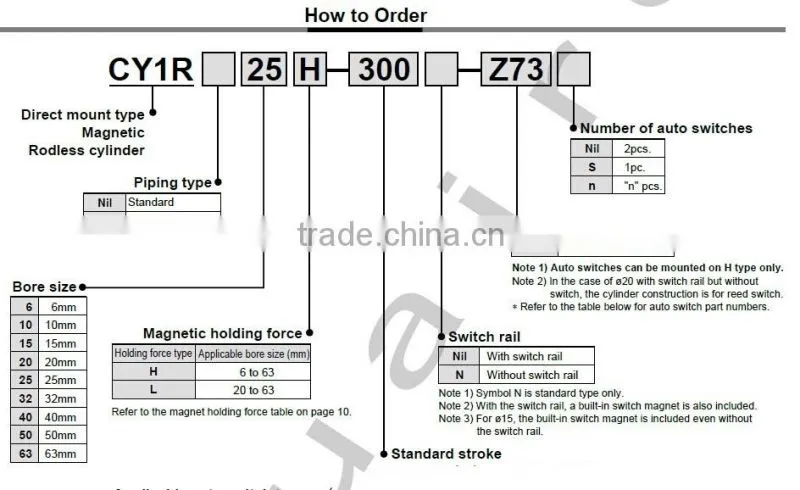

How to Order:
Specification:
| Bore size(mm) | 6 | 10 | 15 | 20 | 25 | 32 | 40 |
| Workingfluid | Compressedair | ||||||
| Proof pressure | 1.05MPa | ||||||
| Working pressure | 0.18~0.7MPa | ||||||
| Working temperature | ~10~60 degree | ||||||
| Piston speed | 50~500mm/s | ||||||
| Cushion | Rubber bumper at both end | ||||||
| Lubrication | no need lubrication | ||||||
| Mounting method | Direct mount type | ||||||

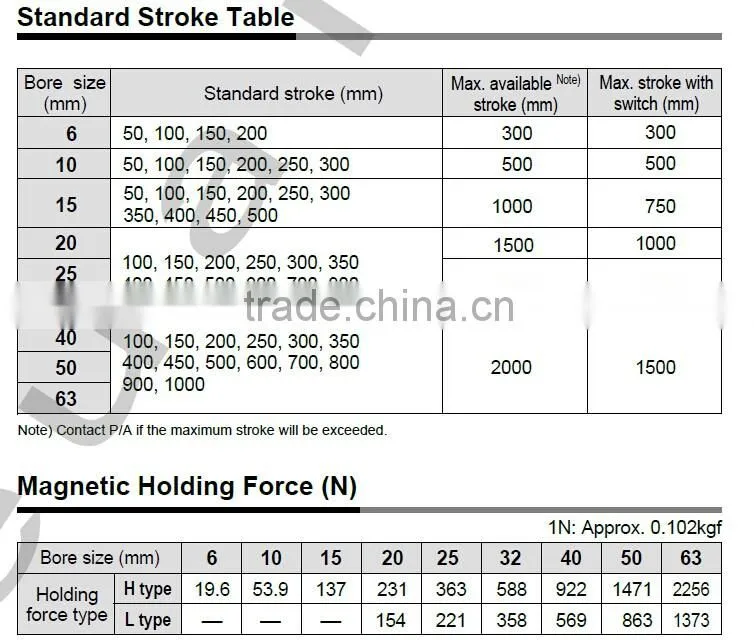

Standard Stroke:
Main Mterial:
| No | Description | Material |
| 01 | Cylinder Body | Aluminium Alloy |
| 02 | Cylinder Tube | Stainless Steel |
| 03 | Cylinder Cover | Aluminium Alloy |
| 04 | Piston | Aluminium Alloy |
| 05 | Cushion Gasket | Polyurethane |
| 06 | Wearing Ring | Special Resin |
| 07 | Piston Seal | NBR |
| 08 | Wiper Scraper Seal | Special Resin |
