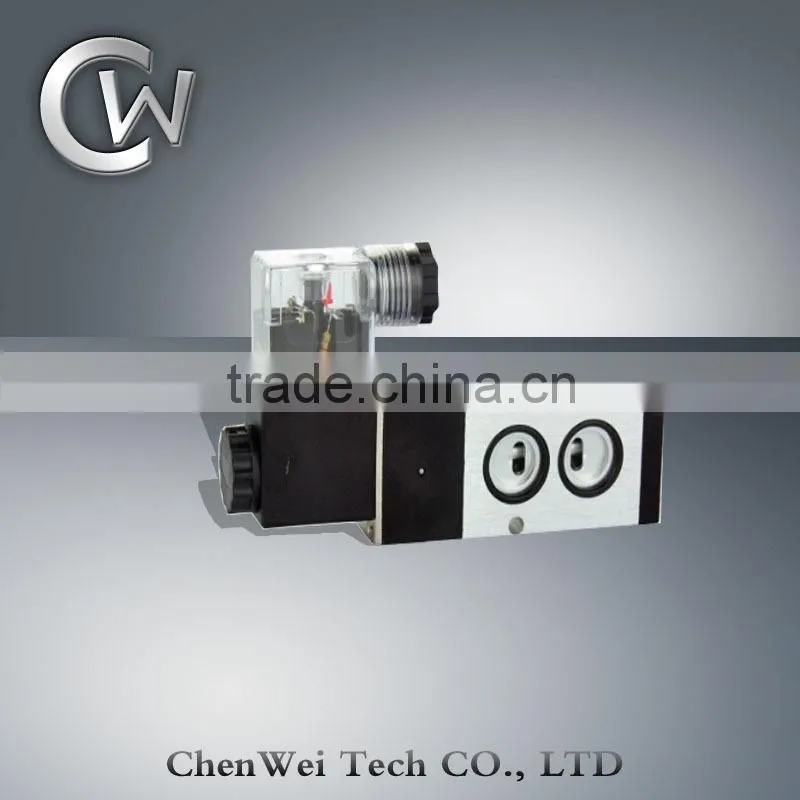

4M110-06 Namur Solenoid Valve
Features:
1). Pilot-oriented mode: Optional for internal or external.
2). Structure in sliding column mode: Good tightness and sensitive reaction.
3). 5 way 2 position solenoid valves have memory function.
4). Double control solenoid valves have memory function.
5). Internal hole adopts special processing technology which has little attrition friction, low start pressure and long useful life.
6). No need to add oil for lubrication.
7). It is available to form intergrated valve group with the base to save installation space.
8). Affiliated manual devices are equipped to facilitate installation and debugging.
9). Several standard voltage grades are optional
Specification:
| Type | 4M110-M5 | 4M110-06 |
| 4M120-M5 | 4M120-06 | |
| Fluid | Air | |
| Action | internally piloted | |
| Type of actuation | 5 port 2 position | |
| Orifice size | 5.5mm(CV=0.31) | 12mm(CV=0.67) |
| Port size | in=exhaust=M5 | in=exhaust=1/8 |
| Lubrication | not required | |
| Operating pressure | 0.15~0.8MPa | |
| Proof pressure | 1.2MPa | |
| Max Working frequency | 5 times/second | |
| Working temperature | ~5~60°C | |
| Type | 4M110, 4M120 | |
| Standard Voltage | AC220V, AC110V, AC24V, DC24V, DC12V | |
| Voltage fluctuation | ~15%±10% of rate voltage | |
| Power consumption | AC:2.8VA, DC:2.8W | |
| Insulation | F classs | |
| Protection | IP65(DIN40050) | |
| Electrical entry | DIN terminal | |
| Min.activating time | 0.05 second | |

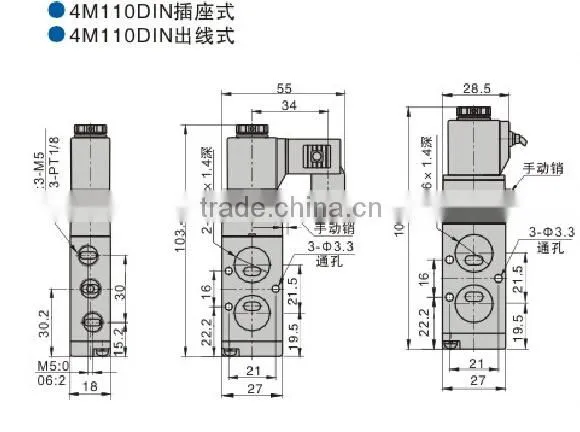

Dimensions and Sizes:
