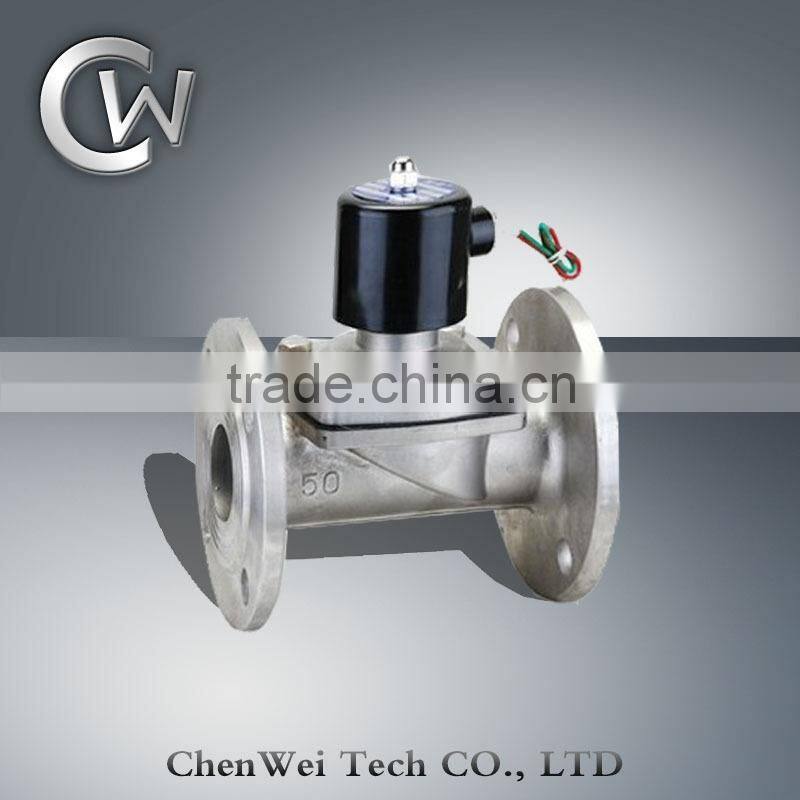

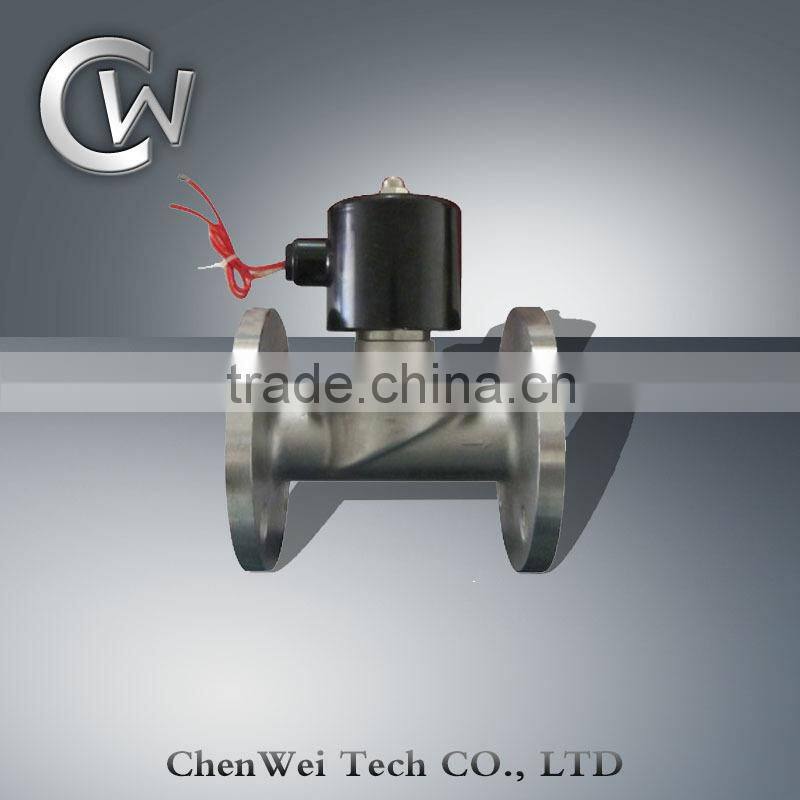

2WBF Stainless Steel Water Solenoid Valve With Flange

FOB Price

US$ 20 - 150 / Piece

1 Piece(Min. Order)

Port ningbo or shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Standard or Nonstandard	Standard	Structure	Regulating
Pressure	Medium Pressure	Power	Pneumatic
Material	Stainless Steel	Temperature of Media	Medium Temperature
Media	Other, air	Port Size	G1/8 to G2"
Place of Origin	Zhejiang, China	Model Number	2WBF
Brand Name	CW

Product Description

2WBF Stainless Steel Water Solenoid Valve With Flange

Features: 2WBF Series Stainless Steel Flange Solenoid Water Valve

1.Port size: G1/8" to G2"

2.Motion pattern: Direct Action, diaphragm type

3.Working Medium: Air,Water,Oil,Gas

4.Type: Normal closed Type

5.Working Pressure: 0-1.0MPa.

6.Operating Temperature: -5-80°C

7.Voltage Range: ±10%

8.Material of valve body: Stainless steel

9.Material of seal: NPR,EPDM or VITON

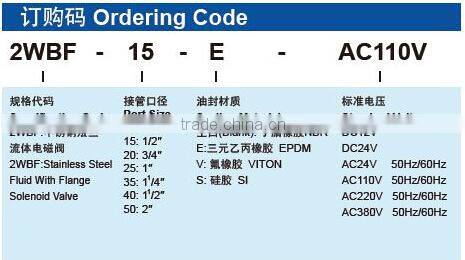

How To Order:

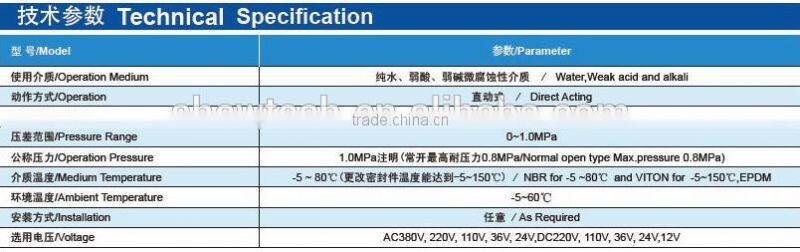

Specification:

Working Medium	Air,Water,Oil,Gas
Motion Patern	Direct Drive,Diaphragm type
Type	Normal Closed Type
Working pressure	0~1.0MPa
Operation Fluid Viscosity	≤20 CST)
Operating Temperature Range	-5~80°C
Voltage Range	±10%
Material of Valve Body	Stainless Steel
Material of Oil Seal	NBR,EPDM or VITON

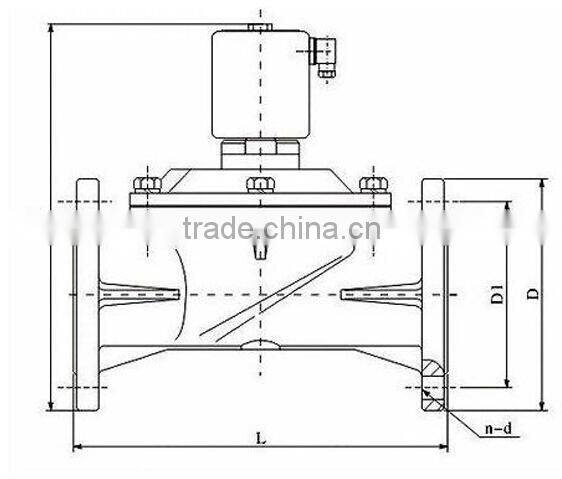

Dimensions and Sizes:

Shippment

1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage

Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.

Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok

5:Customize according to your special demand.
6: Provide free products information.
7. Reliable quality assured and active after-sell service

Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
