HFY Double Acting Gripper Cylinder-MINDMAN gripper replacement
- 500 Piece / Pieces per Month
- ningbo or shanghai
- T/T Credit Card PayPal
You May Like
Product Details
Standard or Nonstandard | Standard | Structure | Other, air gripper cylinder | |
Power | Pneumatic | Body Material | Aluminum | |
Maximum Stroke | 100mm | Shaft Diameter | 8-16mm | |
Place of Origin | Zhejiang, China | Model Number | HFY | |
Brand Name | CW |
Product Description

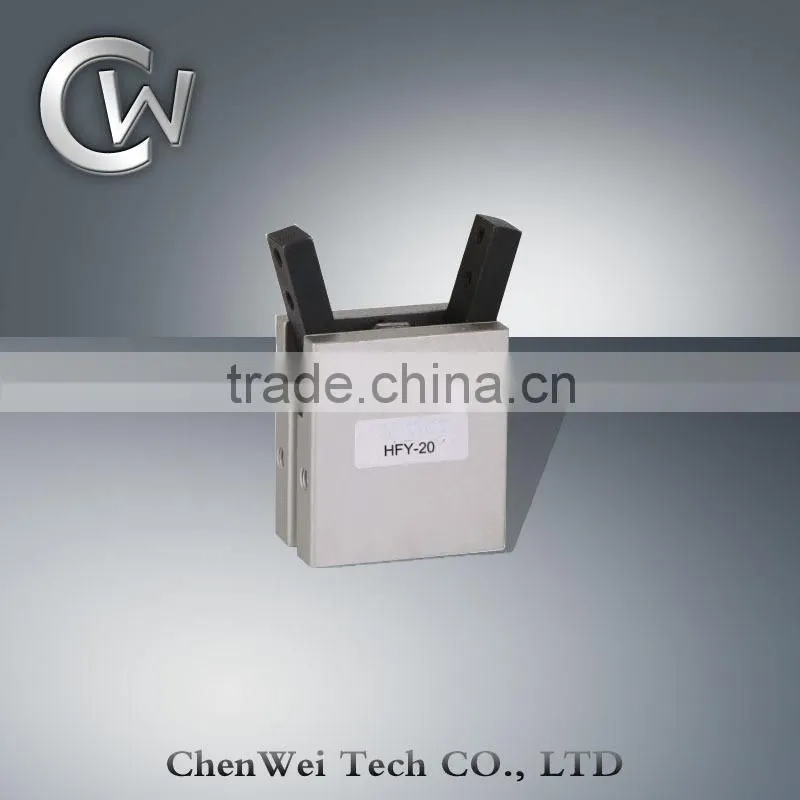

HFY Double Acting Gripper Cylinder-MINDMAN gripper replacement
Features:
1) Gripper diameter:12-32mm
2) Double acting.
3) High quality/price rate.
4) Compact design with reduced height
5) Gripping diverse pieces
Specification:
Acting type | Double acting | |||||
Tube I.D. (mm) | 12 | 16 | 20 | 25 | 32 | |
Port size | M3x0.5 | M5x0.8 | ||||
Medium | Air | |||||
Operating pressure | 0.15~0.7MPa | |||||
Ambient temperature | ~5+60°C(No freezing) | |||||
Max. frequency | 180 Cycles/min | |||||
Lubricator | Cylinder | Not required | ||||
Lever | Grease | |||||
Max. arm length (L) * | 30 | 40 | 60 | 70 | 85 | |
Clamp / Release angle | -10~30° | |||||
Theorem force | Closed | 40xP | 90xP | 170xP | 340xP | 610xP |
Open | 50xP | 120xP | 230xP | 440xP | 810xP | |
Clamping force (F) * | F = M /L x 0.85 | |||||
Sensor switch | RCE, RCE1 | |||||
Weight (g) | 53 | 103 | 193 | 327 | 525 |

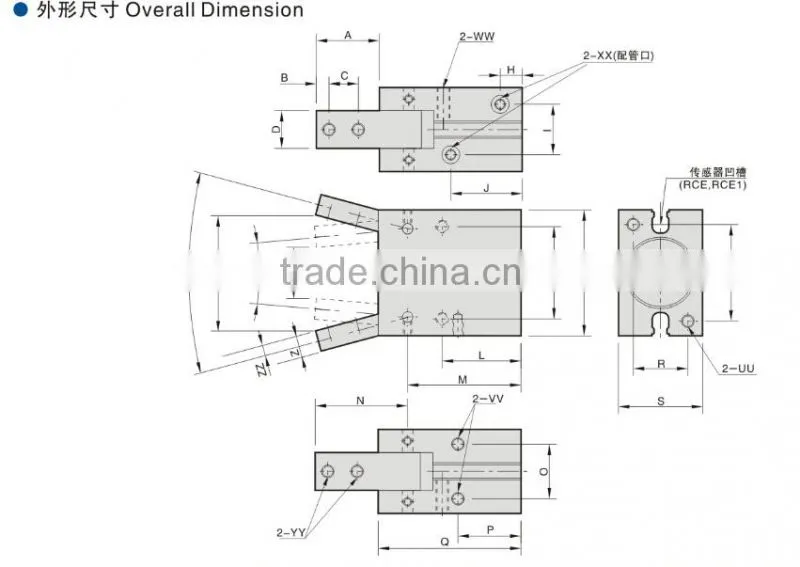

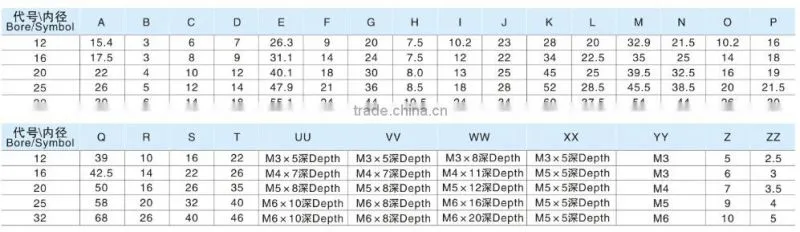

Dimensions:
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
Package
1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage
Payment
1: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
Why choose us
1: Various style for each products and completely series pneumatic products for you to choose from.
2: Large stock for fast shipping.
3: High quality with competitive price
4: Sample order & small quantity order is ok
6: Provide free products information.
7. Reliable quality assured and active after-sell service
Feel free to contact us at anytime if you have any problems or questions on your purchase. We will resolve any problems such as damaged, not as described, missing parts, and lost items. All emails will be replied within 24 hours except Saturday. & Sunday and Chinese holidays. If you have any other requirements or questions, welcome to visit our website, or just contact with us directly. Thank you!
