Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > ACESEE Weatherproof Outdoor Zoom Lens PTZ Dome Camera Pan/Tilt/Zoom

ACESEE Weatherproof Outdoor Zoom Lens PTZ Dome Camera Pan/Tilt/Zoom

Name: ACESEE Weatherproof Outdoor Zoom Lens PTZ Dome Camera Pan/Tilt/Zoom
Brand: ACESEE
SKU: 126311147
Availability: InStock

ACESEE Weatherproof Outdoor Zoom Lens PTZ Dome Camera Pan/Tilt/Zoom thumbnail-1

ACESEE Weatherproof Outdoor Zoom Lens PTZ Dome Camera Pan/Tilt/Zoom photo-1

US$ 10 - 150 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ACESEE

Model Number:

APH4B10S70

Contact Supplier Request Quote Chat Now

Longse Electronics Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou & Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ACESEE

Model Number APH4B10S70

Type Analog Camera

Style Dome Camera

Sensor Other, CCD, 1/3" Super HAD II SONY CCD

Technology Pan / Tilt / Zoom

Special Features Waterproof / Weatherproof

ACESEE Weatherproof Outdoor Zoom Lens PTZ Dome Camera Pan/Tilt/Zoom

ptz dome camera

Product Description

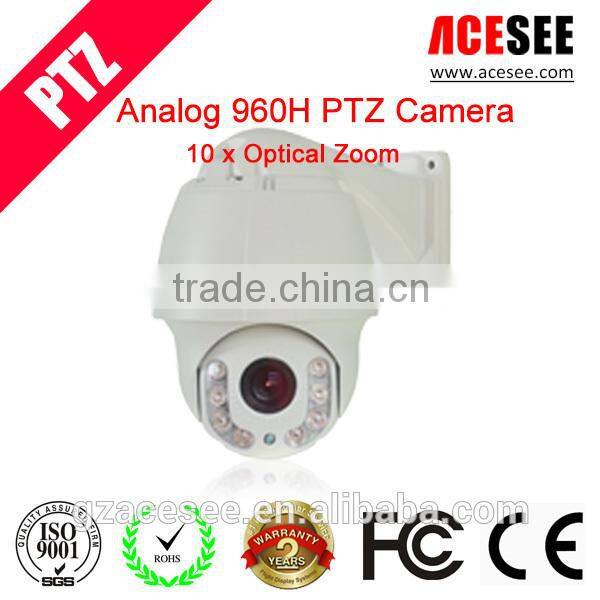

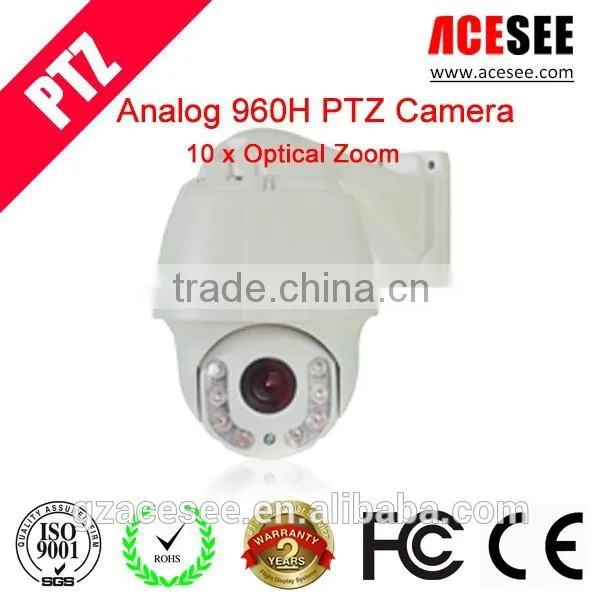

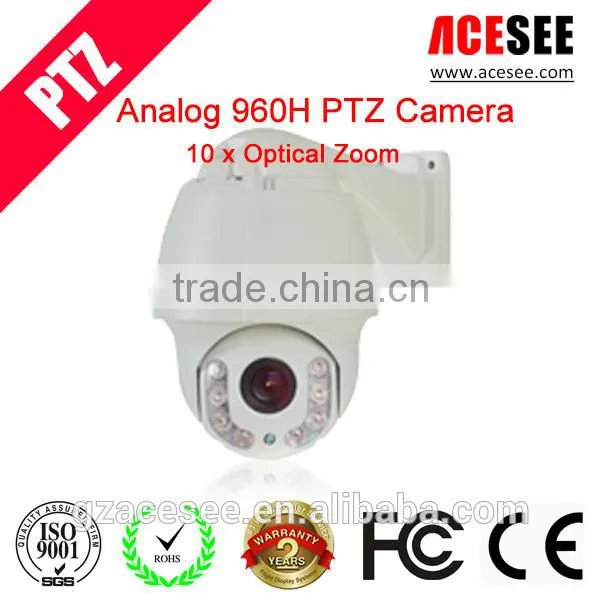

outdoor ptz dome camera

APH4B10S70

*1/3" Super HAD II SONY CCD, Effio

*10X Optical Zoom (f=3.8mm-38mm)

*Color 650TVL, Black 700TVL

*4.5" Mini High Speed Dome Camera
*Weatherproof Outdoor IP66
*16x8PCS IR LEDS, IR Range: 50m
*Pan Range: 0°~360° Continue; Tilt Range: 0°~93° Flip
*Pan Speed: 0.02°-200°/sec; Tilt Speed: 0.02°-120°/sec
*Preset Points: 220
*Guard Tours: 4 Groups
*Guard Points: Max.16 points

*RS485, Pelco D/P supported
*OSD Menu: Multiple Language
*Power Consumption: ≤ 15W, DC12V/3A
*Lightning Protection: Transient Voltage 6000V
*Size of Package (LxWxH): 28x32x20(mm)
*Weight: 3.4Kgs

Model	APH4B10S70
Camera
Image Sensor	1/3" Super HAD II SONY CCD, Effio
Horizontal Resolution	700TVL
S/N Ratio	>55db
PTZ
Horizontal Rotation Speed	0.02 ~200°/s
Horizontal Rotation Range	360°
Tilt Rotation Speed	0.02 ~120°/s
Tilt Rotation Range	93º
Auto Flip	Horizontal 180°, Vertical 93°
Ratio Speed	Support
360° Scan	1-9 grades setting available
A-B Scan	User programmable
A-B Scan Speed	1-9 grades setting available
PWR on Action	Memory/Tour 1/360 scan/AB scan/Preset 1-8/None
Park Time	1-60mins setting available
Dwell Preset	5-60s interval available
Preset Points	220
Go to Preset Speed	200°/s
Guard Tours	4 groups
Guard Points	Max.16 points, dwell time user selectable
3D Location	Support (DH-SD1)
Auxiliary Interface
Communication Protocol	Pelco-D, Pelco-P
Communication	RS485
Baud Rate	1200/2400/4800/9600bps
General
Operating Temperature	Outdoor: -40°~ +60°
Operating Humidity
Heater & Blower	Auto temperature control
Auto Control IR LED	PWM
OSD Menu	English
Power	DC12V
IR Illumination Distance	50M
Power Consumption	≤ 15W
Lightning Protection	Transient voltage 6000V
Dimension	28x32x20(cm)
Weight	3.4kgs

Packaging & Shipping

Shipping:

By Express: FedEx, DHL, UPS, TNT..., we have cooperate with these Express company, and once we get your order, we can find the lowest shipping cost for youa

By Air: Can be shipped by our company forwarder or your own forwarder

By sea: Can be shipped by our company forwarder or your own forwarder

*We afford the 50% freight when the product return to repair in warranty period.
