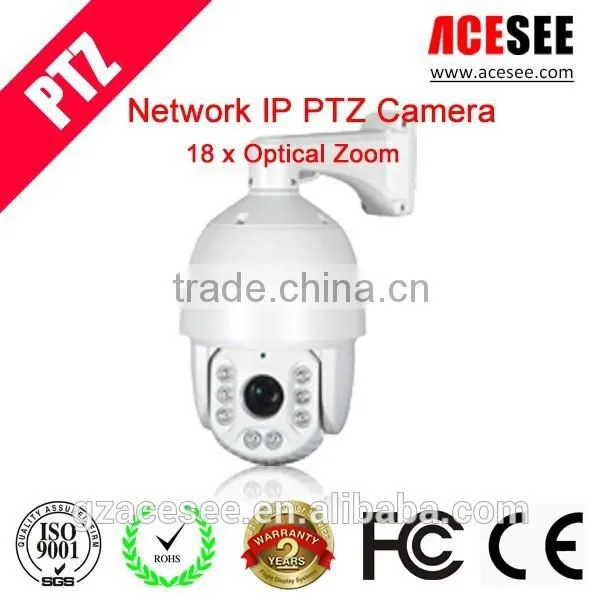

ACESEE Cost-effective Speed Dome 2.0MP 18x Video Camera IP PTZ

Name: ACESEE Cost-effective Speed Dome 2.0MP 18x Video Camera IP PTZ
Brand: ACESEE
SKU: 126311155
Availability: InStock

ACESEE Cost-effective Speed Dome 2.0MP 18x Video Camera IP PTZ thumbnail-1

ACESEE Cost-effective Speed Dome 2.0MP 18x Video Camera IP PTZ thumbnail-2

ACESEE Cost-effective Speed Dome 2.0MP 18x Video Camera IP PTZ photo-1

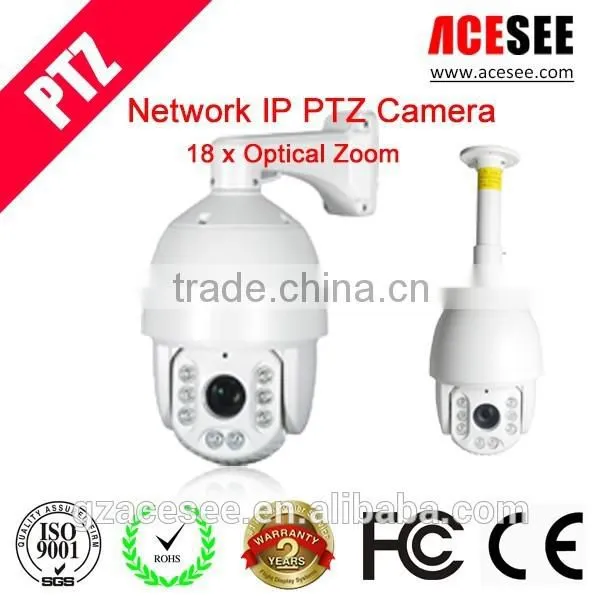

ACESEE Cost-effective Speed Dome 2.0MP 18x Video Camera IP PTZ photo-2

US$ 10 - 150 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

ACESEE

Model Number:

APM7A18P130

Contact Supplier Request Quote Chat Now

Longse Electronics Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou & Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name ACESEE

Model Number APM7A18P130

Type Analog Camera

Style Dome Camera

Sensor Other, CMOS, 1/3" Aptina Low Illumination 1.3MP CMOS Senso

Technology Pan / Tilt / Zoom

Special Features Waterproof / Weatherproof

ACESEE Cost-effective Speed Dome 2.0MP 18x Video Camera IP PTZ

2.0mp 18x video camera ip ptz

Product Description

2.0mp 18x video camera ip ptz

APM7A18P130

*1/3" Aptina Low Illumination 1.3MP CMOS Sensor, TI DaVinci™ DM365

*Main Stream: 720P@30fps; With IR-CUT

*18X Optical Zoom (f=4.7mm-84.6mm)

*7" HD-IP Medium Speed Dome Camera
*Weatherproof Outdoor IP66
*22x8PCS IR LEDS, IR Range: 120m
*Pan Range: 0°~360° Continue; Tilt Range: 0°~90° Flip
*Pan Speed: 60°/sec; Tilt Speed: 30°/sec
*Preset Points: 220
*Guard Tours: 4 Groups
*Guard Points: Max.16 points

*RS485, Protocol TCP/IP, HTTP, FTP, RTSP
*OSD Menu Available
*Power Consumption: ≤ 20W, AC/DC15-28V ≤2A
*Lightning Protection: Transient Voltage 6000V
*Size of Package(LxWxH): 32x32x43(mm)
*Weight: 7Kgs

Model	APM7A18P130
Camera
Image Sensor	1/3" Aptina Low Illumination 1.3MP CMOS Sensor
Processor	TI DaVinci™ DM365
Resolution	1280Hx720V
Output Pixel	1280Hx720V/24fps 1280Hx720V/25fps 1280Hx720V/30fps 1280Hx720V/50fps 1280Hx720V/60fps
Effective Pixel	1.3M
AGC Control	Manual/Auto
WB	Manual/Auto
S/N Ratio	>50dB
Lens
Focus Distance	4.7±5%~84.6±5%mm
Optical Zoom	18X
Aperture Value	F1.6~F2.7
View of Angle	D : WIDE 68.5º±5% TELE 4.2º±5% H : WIDE 54.8º±5% TELE 3.4º±5% V : WIDE 41º±5% TELE 2.5º±5%
Min. Illumination	0.5 lx (F1.6, 50 IRE, ICR off), 0.095 lx (F1.6, 50 IRE, ICR on)
IR-cut	Manual/Auto
Camera Features
Communications Protocol	TCP/IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP
Software Control	IE, CMS, Management Platform
Mobile View(optional)	Support Windows, Symbian, iPhone platform smartphone
PTZ
Horizontal Rotation Speed	60°/s
Horizontal Rotation Range	360°
Tilt Rotation Speed	45º/s
Tilt Rotation Range	93º
Auto Flip	Horizontal 180°, Vertical 180°
A-B Scan	User programmable
A-B Scan Speed	0-64 levels setting available
Dwell Preset	2-60s interval available
Preset Points	220
Go to Preset Speed	01-64 levels available
Guard Tours	4 groups
Guard Points	Max.16 points, dwell time user selectable
PWR On Action	Memory/Pattern 1/Tour 1/360° scan/A-B scan/Preset 1-8/None
Park Time	0-60mins available
3D Location	Support (DH-SD1)
General
Auto Control IR LED	PWM
IR Illumination Distance	120m
IR LED	22*22=8
Baud Rate	1200/2400/4800/9600bps
Operating Temperature	-40°- +60°
Operating Humidity	≤95% Non Condensing
Heater & Blower	Auto temperature control
Power Supply	AC/DC15-28V ≤2A
Power Consumption	≤ 20W
Lightning Protection	Transient voltage 6000V
Dimension	(LxWxH): 32x32x43(cm)
Size/Weight	7KG(N.W),8KG(G.W)

Packaging & Shipping

Shipping:

By Express: FedEx, DHL, UPS, TNT..., we have cooperate with these Express company, and once we get your order, we can find the lowest shipping cost for youa

By Air: Can be shipped by our company forwarder or your own forwarder

By sea: Can be shipped by our company forwarder or your own forwarder

*We afford the 50% freight when the product return to repair in warranty period.
