HD Analog DVRs 16CH AHDVR HD Camera Security System Manufacturer in China

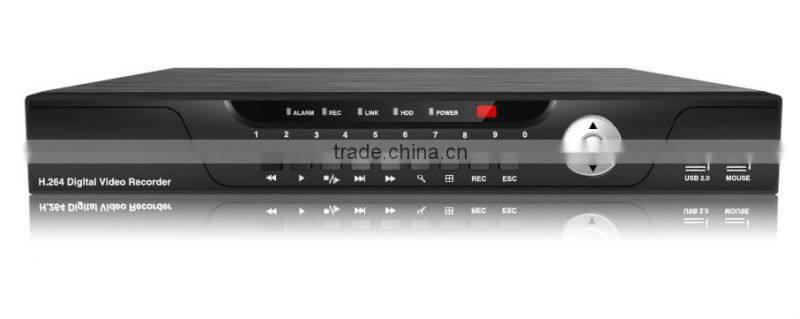

HD Analog DVRs 16CH AHDVR HD Camera Security System manufacturer in China
| Model | AS-AHDVR1630 |
| System | |
| Main Processor | HI3531 |
| Operating System | Embedded LINUX |
| Video | |
| Input | 16Channel, AHD |
| Output | 1 VGA, 1 TV,1 HDMI |
| Audio | |
| Input | 16Channel, RCA |
| Output | 1 Channel, RCA |
| Alarm | |
| Sensor Input | 4 Channel |
| Output | 1 Channel |
| Motion Detection | 4 Channel |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, Screen tips |
| Email Alarm | Send Pieces to The Designated E-mail |
| PTZ | |
| Interface | RS485 |
| Protocol | Pelco-D, Pelco-P, Sony, Sharp, Panasonic, Samsung and Other Protocols |
| Baud Rate | 1200~115200 |
| Address | 0~255 |
| Display | |
| VGA | Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080 |
| HDMI | 1920x1080 |
| Display Split | 16 Channel/9 Channel/8 Channel/4 Channel / 1Channel |
| Privacy Masking | 4 Rectangular Zones (Each camera) |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording |
| Recording | |
| Video Compression | H.264 |
| Audio Compression | G711A |
| Resolution | 720P(1280×720), 960H(P:960×576/N:960×480) |
| Video Quality | Best/Fine/Normal |
| Record Rate | 720P(1280×720 400fps/480fps), 960H(P:960×576 400fps/N:960×480 480fps) |
| Record Mode | ManualTimerMotion Detectionalarm |
| Playback & Backup | |
| Sync Playback | 4 Channel / 1Channel |
| Remote Playback | 4 Channel/ 1Channel |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play |
| Backup Mode | USB Device/Network |
| Network | |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface |
| Network Functions | HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,DST |
| DDNS | 3322, Dyndns,changeip,no-ip |
| Web Browser | IE6-11 |
| CMS Software | Support Windows XP /Windows Vista/Windows 7/Windows 8 |
| Extra Stream | D1/CIF/QCIF(1~25fps) |
| Smart Phone | iPhone, ipad, Android ,Android pad |
| Hard Disk Driver | |
| Interface Type | 2 SATA Interface |
| Capacity | Up to 8TB Capacity |
| General | |
| Language | Support 19 languages (Chinese, English, polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Persian, Germany, France, Portugal, Turkey, Spain, Italy, Hungary, Romania, Korean) |
| USB Interface | 2 USB 2.0 Interfaces |
| Power Supply | DC12V/5A |
| Working Environment | -10~55℃/10~90% |
| Dimension (W×D×H) | 405mm×330mm×65mm |
| Weight | 6kg (Without HDD) |
Warranty
To CCTV Cameras & DVR & NVRs
a.2 Years From Shipping Date;
b.2 Years, any defective product caused by non-artificial reason we will get repaired or replaced for free;
OEM & ODM Services
a. Including Label,Manual,Packages,Logo Printing and Special Outside Color and so on;
Payment Terms
a. Telegraphic Transfer (T/T)
b. Paypal
4% commission charges will be added into the amount;

ACESEE Price List Of AHD DVR Will be Sent to You Upon Your Special Requirement ! !
