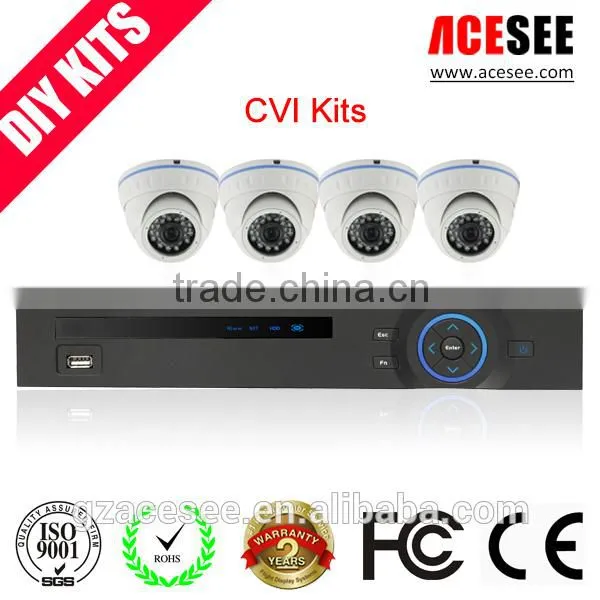

ACESEE OEM DIY High Definition Camera CVI CVR Kit
cvr kit
cvr kit
| Model NO. | CVR-04SRC10 | CVR-04SRC30 |
| Package | ||
| CVR | 1x4CH 720P/960P AS-CVR5104D | |
| Camera | 4xADSR20C100 | 4xADSR20C130 |
| BNC Cable | 4x20M BNC Cable ACB-20DB | |
| Mouse | 1xUSB 2.0 Mouse | |
| Controller | 1xIR Remote Controller | |
| Power Cable | 1x5CH Power Splitter Cable | |
| Adaptor | 1x3A Power Adaptor+1xPower Cable (US, EU, UK, AU Plug is Optional) | |
| Weight | 7.5KGS/SET | |
| Camera Model | ADSR20C100 | ADSR20C130 |
| Image Sensor | PO3100K | AR0130 |
| DSP | DH9801 | DH9801 |
| Image Resolution | PAL: 25fps@720P(1280×720); NTSC: 30fps@720P(1280×720) | |
| Effective Pixels | 1280(H)×720(V) , 1MP | |
| TV System | PAL/NTSC | |
| Electronic Shutter | 1/25s~1/50,000s , 1/30s~1/60,000s | |
| Sync System | Internal | |
| Usable Illumination | 0.01Lux/F2.0 | |
| S/N Ratio | ≥50dB | |
| Scanning System | Progressive Scan | |
| Video Output Mode | CVI(BNC) | |
| Lens | ||
| Focus Length | Board Lens 3.6mm/F2.0 | |
| Focus Control | Fixed | |
| Lens Type | Fixed | |
| Pixels | 2M Pixels | |
| Night Vision | ||
| Infrared LED | 5X24PCS | |
| Infrared Distance | 20M | |
| IR Status | Under 10 Lux by CDS | |
| IR Power On | CDS Auto Control | |
| Camera Features | ||
| Day/Night | Auto (ICR) / Color / B&W | |
| OSD Menu Language | No | |
| White Balance | Auto | |
| Gain Control | Auto | |
| Noise Reduction | 3D NR | |
| Picture Adjustment | No | |
| OSD Support | No | |
| General | ||
| Vandalproof Housing | YES, Metal | |
| Lens Angle Adjustment | YES | |
| Dual Voltage | NO | |
| IR Cut Filter | YES | |
| Heater | NO | |
| Operation Temperature | -10℃ ~ +50℃ RH95% Max | |
| Storage Temperature | -20℃ ~ +60℃ RH95% Max | |
| Power Source | DC12V±10%, 500mA | |
| Dimension | 94 x 69(H)mm | |
| Weight | 450g | |
| Model | AS-CVR5104D | |
| System | ||
| Main Processor | ARM® CPU Core (GM8287) | |
| Operating System | Embedded LINUX | |
| Video | ||
| Input | 4 Channel, CVI | |
| Output | 1 VGA, 1 HDMI | |
| Audio | ||
| Input | 1 Channel, RCA | |
| Two-way Audio | YES | |
| Output | 1 Channel, RCA | |
| Alarm | ||
| Sensor Input | NO | |
| Output | NO | |
| Motion Detection | 4 Channel | |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, Screen tips | |
| Email Alarm | Send Pieces to The Designated E-mail | |
| PTZ | ||
| Interface | RS485 | |
| Protocol | Pelco-D, Pelco-P, Sony, Sharp, Panasonic, Samsung and Other Protocols | |
| Baud Rate | 1200~115200 | |
| Address | 0~255 | |
| Display | ||
| VGA | Resolution: 1024×768, 1280×720, 1280×1024, 1920×1080 | |
| HDMI | Resolution: 1080P(1920×1080), 720P( 1280×720) | |
| Display Split | 4 Channel / 1Channel | |
| Privacy Masking | 4 Rectangular Zones (Each camera) | |
| OSD | Camera title, Time, Video loss, Alarm, Motion detection, Recording | |
| Recording | ||
| Video Compression | H.264 | |
| Audio Compression | G711A,G711U,PCM | |
| Resolution | 1080P(1920*1080), 960P(1280*960), 720P(1280×720), D1(P:704×576/N:704×480), HD1(P:352×576/N:352×480), CIF(352×288/ 352×240), QCIF(P:176×144/N:176×120) |
|
| Video Quality | Best/Fine/Normal | |
| Record Rate | PAL: 1080P@48fps, 960P@100fps, 720P@100fps, D1@100fps, HD1@100fps, CIF@100fps, QCIF@100fps NTSC: 1080P@60fps, 960P@120fps, 720P@120fps, D1@120fps, HD1@120fps, CIF@120fps, QCIF@120fps |
|
| Record Mode | ManualTimerMotion Detectionalarm | |
| Playback & Backup | ||
| Local Sync Playback | 4 Channel / 1Channel | |
| Remote Sync Playback | 4 Channel / 1Channel | |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play | |
| Smart Phone Playback | Support | |
| Backup Mode | USB Device/Network | |
| Network | ||
| Interface | 1 RJ45 10M/100M Adaptive Ethernet Interface | |
| Network Functions | HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,DST | |
| DDNS | Quick DDNS(free of charge), 3322, Dyndns | |
| Web Browser | IE8-11, Google Chrom , Firefox | |
| CMS Software | Support Windows XP /Windows Vista/Windows 7/Windows 8 | |
| Extra Stream | D1/CIF/QCIF(1~25fps) | |
| Smart Phone | iPhone, ipad, Android | |
| Hard Disk Driver | ||
| Interface Type | 2 SATA Interface | |
| Capacity | Up to 8TB Capacity | |
| General | ||
| Language | Simplified Chinese, Traditional Chinese, English, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkey, Poland, Romania, Hungary, Finnish, Hebrew, Brazil, Persian, Arabian, Czech,Bulgaria, Slovak, Dutch, Greece, Indonesia, Switzerland, Vietnamese, Thai |
|
| USB Interface | 2 USB 2.0 Interfaces | |
| Power Supply | DC12V/3A | |
| Working Environment | -10~55℃/10~90% | |
| Dimension (W×D×H) | 335mm×270mm×55mm | |
| Weight | 2.5kg (Without HDD) | |
Shipping:
By Express: FedEx, DHL, UPS, TNT..., we have cooperate with these Express company, and once we get your order, we can find the lowest shipping cost for youa
By Air: Can be shipped by our company forwarder or your own forwarder
By sea: Can be shipped by our company forwarder or your own forwarder
*We afford the 50% freight when the product return to repair in warranty period.
ACESEE Security Limited is a professional manufacturer and solutions provider in the security and surveillance field. Since its foundation in 2007, ACESEE has aimed to be a top international security company, and provide high quality and prominent marketing service. We catch up with international market trend timely. We develop IP Cameras in an early time, and now we own various of IP products list, like 1MP to 2.4MP high resolution cameras with chip from HISILICON, TEXAS INSTRUMENTS and AMBARELLA. And investment on IP solutions is expanded, more and more will be brought to you in the near future. We do believe our abundant products could meet your requirements. However, IP solutions will not be the end, instead it is just the beginning, because we ACESEE never stop moving on.
Welcome to visit ACESEE! ^_^.
*OEM and ODM service is acceptable
1.Logo Printing
2.DIY Sticker/Label
3.Branding Your Boxes
4.Boot Logo
Q: How long is the delivery time?
A: Sample order is around 7 working days, bulk order is 12 working days.
Q: How long is the warranty
A: All of product is two years after shipment
Q: What's the MOQ?
A: No MOQ for your first order, at least 10pcs at next order
Q: Why do you choose us ACESEE?
A1. All of our product is 48 hours aging test
A2. Provided free CMS software
A3. Updated software version promptly
A4. Provided free technical support
A5. Updated full price list per month as per the feedback of security market
A6. Good pre-sale and after-sale service from ACESEE
