ACESEE HD Security AHD DVR Kit With AHD Dome Camera

ACESEE HD Security AHD DVR Kit With AHD Dome Camera thumbnail-1
ACESEE HD Security AHD DVR Kit With AHD Dome Camera photo-1
US$ 10 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ACESEE
Model Number:
AHD-41SRA
Contact Supplier Request Quote Chat Now
Longse Electronics Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou & Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name ACESEE
Model Number AHD-41SRA

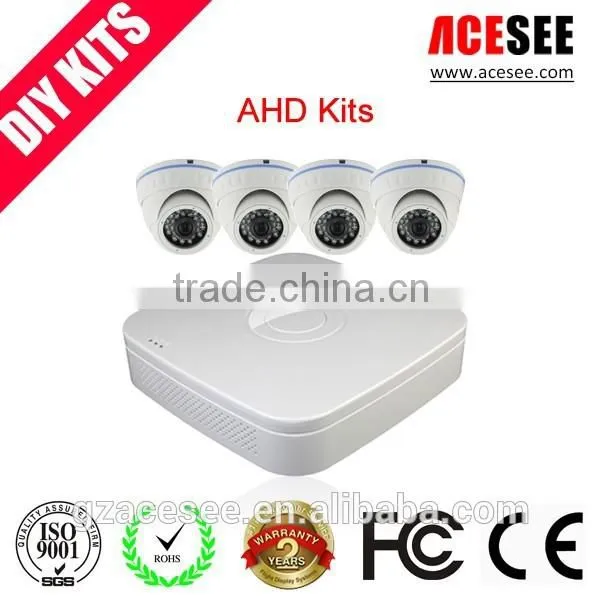

ACESEE HD Security AHD DVR Kit With AHD Dome Camera

ACESEE HD Security AHD DVR Kit With AHD Dome Camera



ahd dvr kit

Product Description

ahd dvr kit



Model NO. AHD-41SRA10 AHD-41SRA30
Package
DVR 1x4CH 720P/960H   AS-AHDVR0410A
Camera 4xADSR20A100  4xADSR20A130
BNC Cable 4x20M BNC Cable ACB-20DB
Mouse 1xUSB 2.0 Mouse
Power Cable 1x5CH Power Splitter Cable
Adaptor 1x5A Power Adaptor+1xPower Cable (US, EU, UK, AU Plug is Optional)
Weight 5.5KGS/SET
Camera Model ADSR20A100 ADSR20A130
Image Sensor OV9712S IMX238
DSP NVP2431H NVP2430H
Image Resolution PAL: 25fps@720P(1280×720); NTSC: 30fps@720P(1280×720)
Effective Pixels 1280(H)×720(V) , 1MP
TV System PAL/NTSC
Electronic Shutter 1/25s~1/50,000s , 1/30s~1/60,000s
Sync System Internal
Usable Illumination 0.01Lux 0.001Lux
S/N Ratio ≥50dB
Scanning System Progressive Scan
Video Output Mode AHD/CVBS (960H) (BNC)
Lens
Focus Length Board Lens 3.6mm/F2.0
Focus Control Fixed
Lens Type Fixed
Pixels 2M Pixels
Night Vision
Infrared LED 5X24PCS
Infrared Distance 20M
IR Status Under 10 Lux By CDS
IR Power On CDS Auto Control
Camera Features
Day/Night Auto (ICR) / Color / B&W
OSD Menu Language EN, CN, DE, FRA, IT, ES,
PL, RU, PT, NL, TR
White Balance Auto/Manual
Gain Control Auto
Noise Reduction 3D NR
Picture Adjustment Yes
OSD Support Yes
General
Vandalproof Housing YES, Metal
Lens Angle Adjustment YES
Dual Voltage NO
IR Cut Filter YES
Heater NO
Operation Temperature -10℃ ~ +50℃ RH95% Max
Storage Temperature -20℃ ~ +60℃ RH95% Max
Power Source DC12V±10%, 500mA
Dimension 94 x 69(H)mm
Weight 450g
Model AS-AHDVR0410A
System
Main Processor HI3520D
Operating System Embedded LINUX
Video
Input 4 Channel, AHD
Output 1 TV, 1 VGA
Audio
Input 2 Channel, RCA
Two-way Audio NO
Output 1 Channel, RCA
Alarm
Sensor Input NO
Output NO
Motion Detection 4 Channel
Trigger Events Recording,  Tour, Alarm, Video Push, Email, Screen tips
Email Alarm Send Pieces to The Designated E-mail
Display
VGA Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080
HDMI NO
Display Split 4 Channel / 1Channel
Privacy Masking 4 Rectangular Zones (Each camera)
OSD Camera title, Time, Video loss, Alarm, Motion detection, Recording
Recording
Video Compression H.264
Audio Compression G711A
Resolution 720P(1280×720), 960H(P:960×576/N:960×480)
Video Quality Best/Fine/Normal
Record Rate 720P(1280×720 100fps/120fps), 960H(P:960×576 100fps/N:960×480 120fps)
Record Mode ManualTimerMotion DetectionSensor
Playback & Backup
Local Sync Playback 4 Channel / 1Channel
Remote Sync Playback 4 Channel / 1Channel
Search Mode ALL, Channel, Manual, Time, Date, Motion Detection, Sensor
Playback Functions Play, Pause, Stop, Rewind, Fast play, Slow play, Digital zoom
Smart Phone Playback NO
Backup Mode USB Device/Network
Network
Interface 1 RJ45 10M/100M Adaptive Ethernet Interface
Network Functions HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,DST
DDNS 3322, Dyndns,changeip,no-ip
Web Browser IE8-11
CMS Software Support Windows XP /Windows Vista/Windows 7/Windows 8
Extra Stream D1/CIF/QCIF(1~25fps)
Smart Phone iPhone, ipad,  Android ,Android pad
Hard Disk Driver
Interface Type 1 SATA Interface
Capacity Up to 4TB Capacity
General
Language

Support 19 languages (Chinese, English, polish, Czech, Russian, Thai, Hebrew,

Arabic, Bulgarian, Persian, Germany, France, Portugal, Turkey,

Spain, Italy, Hungary, Romania, Korean)
USB Interface 2 USB 2.0 Interfaces
Power Supply DC12V/5A
Working Environment -10~55℃/10~90%
Dimension (W×D×H) 215mm×215mm×53mm
Weight 2KG (Without HDD)







ACESEE HD Security AHD DVR Kit With AHD Dome Camera

Packaging & Shipping

 ACESEE HD Security AHD DVR Kit With AHD Dome Camera

Shipping:

By Express: FedEx, DHL, UPS, TNT..., we have cooperate with these Express company, and once we get your order, we can find the lowest shipping cost for youa

By Air: Can be shipped by our company forwarder or your own forwarder

By sea: Can be shipped by our company forwarder or your own forwarder



*We afford the 50% freight when the product return to repair in warranty period.



Company Information

ACESEE Security Limited is a professional manufacturer and solutions provider in the security and surveillance field. Since its foundation in 2007, ACESEE has aimed to be a top international security company, and provide high quality and prominent marketing service. We catch up with international market trend timely. We develop IP Cameras in an early time, and now we own various of IP products list, like 1MP to 2.4MP high resolution cameras with chip from HISILICON, TEXAS INSTRUMENTS and AMBARELLA. And investment on IP solutions is expanded, more and more will be brought to you in the near future. We do believe our abundant products could meet your requirements. However, IP solutions will not be the end, instead it is just the beginning, because we ACESEE never stop moving on.

 ACESEE HD Security AHD DVR Kit With AHD Dome Camera

ACESEE HD Security AHD DVR Kit With AHD Dome Camera

Welcome to visit ACESEE! ^_^

If you have any questions or request, pls contact Rita.

Skype ID: rita.acesee

Whatsapp: 86 13808860995

TM ID: cn1512088157



Pls add my telephone number 86 13808860995 to your contact.



I am online in skype, TM, whatsapp, wechat, Line...





Our Services


*OEM and ODM service is acceptable

1.Logo Printing

2.DIY Sticker/Label

3.Branding Your Boxes

4.Boot Logo





FAQ



Q: How long is the delivery time?

A: Sample order is around 7 working days, bulk order is 12 working days.

Q: How long is the warranty

A: All of product is two years after shipment

Q: What's the MOQ?

A: No MOQ for your first order, at least 10pcs at next order

Q: Why do you choose us ACESEE?

A1. All of our product is 48 hours aging test

A2. Provided free CMS software

A3. Updated software version promptly

A4. Provided free technical support

A5. Updated full price list per month as per the feedback of security market

A6. Good pre-sale and after-sale service from ACESEE
