Home > Products > refrigeration parts > Made in China refrigeration equipment scope of air cooled condenser for refrigerators and freezers

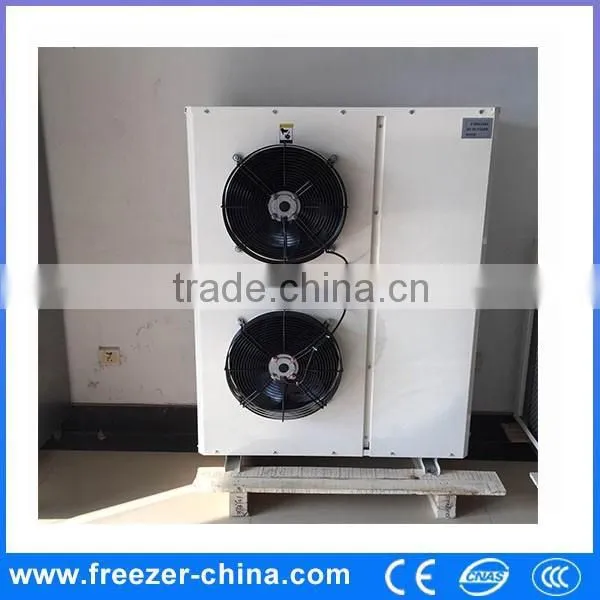

Made in China refrigeration equipment scope of air cooled condenser for refrigerators and freezers
USD $100 - $2,000
/ Set
1 Set(Min.Order)
- 50000 Set / Sets per Month
- lianyungang/shanghai
You May Like
Product Details
Place of Origin: | China | Brand Name: | brand | Model Number: | HS261CH2 |
Type: | Other, chiller, Chiller | Application: | Refrigeration Parts | Certification: | CE |
Product Description
Specifications
1.low noise2.repadly cooling
3.Energy efficiency
Technical Parameters:
Technical Parameters:
Unit model |
| HS261CH2 | HS263CH3 | HS303CH3 | HS373CH3 | HS453CH3 | HS235CH3 | HS603DH3 | HS753DH3 | HS903DH3 |
Refrigerant | R22 | |||||||||
Suitable temperature (℃) | 0~15 | |||||||||
Power Supply | 220V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ | |
Scroll compressor models | C-SB261H5A-3.5hp | C-SB263H8A-3.5hp | C-SB303H8A-4hp | C-SB373H8A-5-hp | C-SB453H8A-6hp | C-SBR235H38A-7hp | C-SC603H8H-8hp | C-SC753H8H-10hp | C-SC903H8H-12hp | |
The largest operating current (A) | 12.9 | 4.9 | 5.5 | 6.6 | 7.7 | 8.8 | 10.6 | 12.8 | 15.1 | |
Condenser | Fan number | 1 | 1 | 1 | 2 | 2 | 2 | 1 | 1 | 1 |
Air flow (m³/h) | 3600 | 3600 | 3600 | 5400 | 7200 | 7200 | 8800 | 12000 | 12000 | |
Power of fan | 195 | 190 | 190 | 150*2 | 190*2 | 190*2 | 700 | 780 | 780 | |
Connecter | Inhale interface (mm) | Φ16 | Φ16 | Φ16 | Φ19 | Φ19 | Φ19 | Φ22 | Φ22 | Φ22 |
For liquid interface (mm) | Φ12.7 | Φ12.7 | Φ12.7 | Φ12.7 | Φ12.7 | Φ16 | Φ16 | Φ16 | ||
The weight of unit(kg) | 87 | 87 | 90 | 107 | 112 | 114 | 177 | 180 | 186 | |
Size | Length(mm) | 1020 | 1020 | 1020 | 1030 | 1030 | 1030 | 1000 | 1000 | 1000 |
Width(mm) | 490 | 490 | 490 | 490 | 490 | 490 | 1000 | 1000 | 1000 | |
Height(mm) | 835 | 835 | 835 | 1290 | 1290 | 1290 | 1470 | 1470 | 1470 | |
Condensation temperature | 45℃ |
