Specifications
Hastelloy alloy C4 pipe/tube1.standard: ASTM
2.thickness:0.5-150mm
3.OD:6-1020mm
Hastelloy alloy C4 pipe/tube
HASTELLOY C-4 alloy is a nickel-chromium-molybdenum alloy with outstanding high-temperature stability as evidenced by high ductility and corrosion resistance even after aging in the 1200 to 1900°F (649 to 1038°C) range. This alloy resists the formation of grain-boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in the as-welded condition. C-4 alloy also has excellent resistance to stress-corrosion cracking and to oxidizing atmospheres up to 1900°F (1038°C).
Chemical composition
| Alloy | Ni | Cu | Mo | Cr | Fe | W | Mn | Si | C | other |
| C-4 | 65 | 0.5 | 16 | 16 | 3 | -- | 1 | 0.08 | 0.01 | Ti:0.07 |
| C-22 | 56 | 0.5 | 13 | 22 | 3 | 3 | 0.5 | 0.08 | 0.01 | V:0.35 |
| C-276 | 57 | 0.5 | 16 | 16 | 5 | 4 | 1 | 0.08 | 0.01 | V:0.35 |
| C-2000 | 59 | 1.6 | 16 | 23 | 3 | -- | 0.5 | 0.08 | 0.01 | Al:0.5 |
| B-3 | 65 | -- | 28.5 | 1.5 | 3 | 3 | 3 | 0.1 | 0.01 | Al:0.5 |
| B-30 | 43 | 2 | 5.5 | 30 | 15 | 2.5 | 1.5 | 1 | 0.03 | Cb:1.5 |
Mechanical properties
| Alloy | Tensile strength | Yield strength | Elongation |
| Rm N/mm2 | RP0.2N/mm2 | A5 % | |
| C-4 | 783 | 365 | 55 |
Details
Article |
Hastelloy alloy C4 pipe/tube |
type |
pipe/tube |
Thickness |
0.5-150mm |
OD |
6-1020mm |
Usage |
machine made industry,chemical industry,spin,shipping industry , architecture , food |
Parking |
plastic wrapper and wooden packing or as your requirement |
terms conditions |
CIF,CFR,FOB |
Payment |
Small quantity (within total $20000.00) T/T at sight, 30% in advance , 70% after receiving the B/L Large quantity : L/C at sight |
Delivery Time |
10-25 days after received the deposit of T/T or L/C |
Note |
we can produce other standard as the customers' requirement |

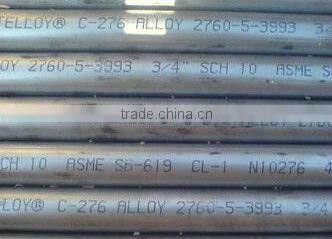

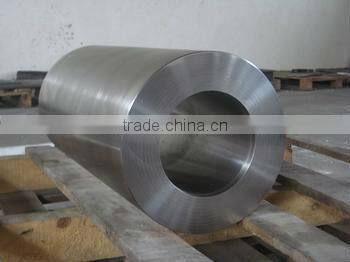

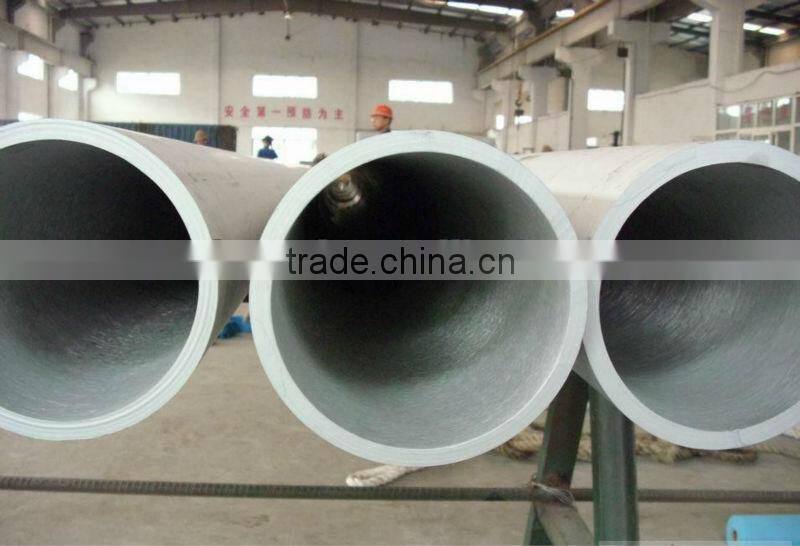

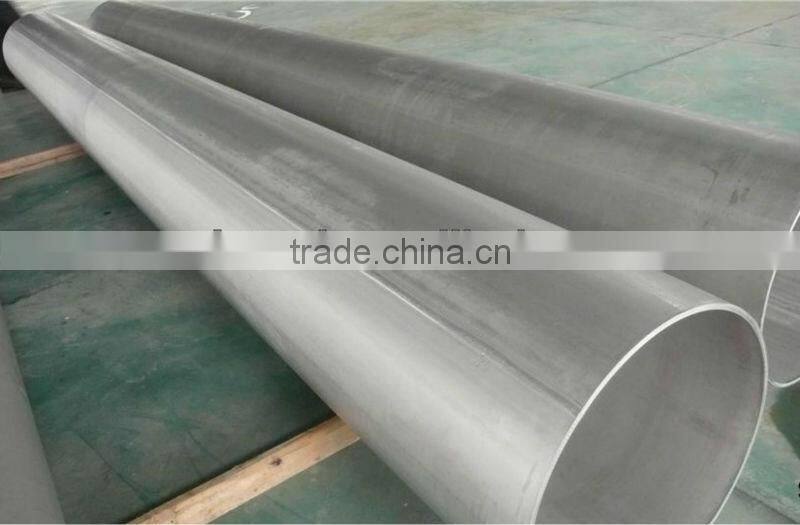

Product show
