Machine Tool 15x15mm Semi-closed Cable Carrier Drag Chain
- 10000000 Meter / Meters per Month
- Xingang Shanghai Shenzhen
- T/T Credit Card
-
Wholesale NC Tool HSK-FMB NC Tool Handle HSK63A FMB22-100 High Speed Steel Holding Tool Handle
-
Customized CNC Machining Center Indexable Face Milling Tool cutter head
-
wholesale CNC milling cutter head for CNC machining center
-
Customized Right angle R390 indexable shoulder face milling cutter head
-
Factory direct sell other machine tools accessories lathe machine tools
-
Factory TRS Round dowel face mill indexable face milling cutter head
Product Details
| Place of Origin: | Hebei, China | Brand Name: | CZZH |
Product Description
Machine Tool Semi-closed Cable Carrier Drag Chain
(1) Suitable for use in reciprocating motion of the occasion, be able to built-in cable, tubing, trachea, traction and protection of water pipes, etc. play a role.
(2) The drag chain of each section can be open, easy to install and repair. Movement, low noise, wear-resistant, high-speed movement.
(3) The drag chain has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machines, injection molding machines, mechanical hands, overweight transportation equipment, automated warehouses.
10 Series
Type |
Inside Diameter |
Outside Diameter |
Bending radius |
Pitch | Non-support Length(m) |
Type |
TL1-10.10 | 10×10 | 15×17 | 18 | 20 | 1 |
Whole |
TL1-10.15 | 10×15 | 15×22 | 28 | 20 | 1 | |
TL1-10.20 | 10×20 | 15×27 | 28 | 20 | 1 |
15 Series
Type |
Inside Diameter |
Outside Diameter |
Bending radius |
Pitch | Non-support Length(m) |
Type |
TL1-15.15 | 15×15 | 20×26 | 28, 38 | 25 | 1.3 |
Semi-closed Bottom Lid can be opened. |
TL1-15.20 | 15×20 | 20×31 | 28, 38 | 25 | 1.3 | |
TL1-15.30 | 15×30 | 20×43 | 28, 38 | 26 | 1.3 | |
TL1-15.40 | 15×40 | 20×53 | 28, 38 | 26 | 1.3 | |
TL1-15.50 | 15×50 | 20×63 | 28,38,40 | 26 | 1.3 |
18 Series
Type |
Inside Diameter |
Outside Diameter |
Bending radius |
Pitch | Non-support Length(m) |
Type |
TL1-18.18 | 18×18 | 23×31 | 28, 38,40,48 | 30 | 1.5 |
Semi-closed Bottom Lid can be opened. |
TL1-18.25 | 18×25 | 23×38 | 28, 38,40,48 | 30 | 1.5 | |
TL1-18.35 | 18×35 | 23×47 | 28, 38,48 | 30 | 1.5 | |
TL1-18.50 | 18×50 | 23×63 | 28, 38,48 | 30 | 1.5 | |
TL1-18.60 | 18×60 | 23×73 | 38,48 | 30 | 1.5 |
20 Series
Type |
Inside Diameter |
Outside Diameter |
Bending radius |
Pitch | Non-support Length(m) |
Type |
TL20.38 | 20×38 | 28×50 | 75 | 30 | 1.5 |
entire closed |
TL20.63 | 20×63 | 28×75 | 63 | 30 | 1.5 |
Packaging detail: 1.Carbon+woven bag in standard exporting boxes.
2. As client's requirement.
3. Pallets are available if it is necessary.
Small order are accepted by us. ( If you need small quantity, but need urgent, we can delivery them by follow express)

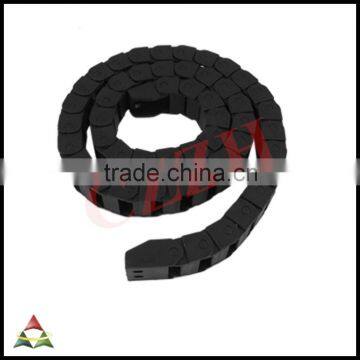

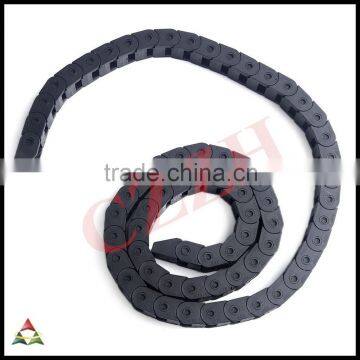

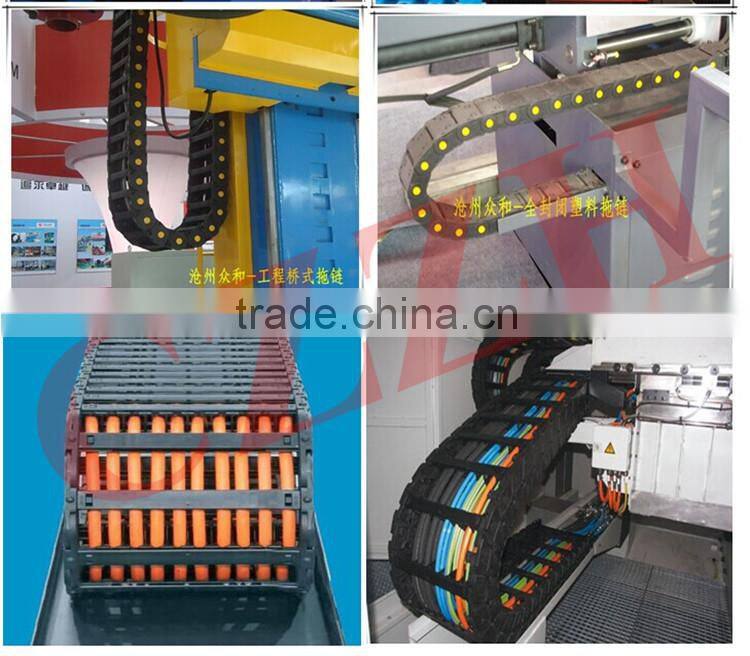

15 Series pictures
