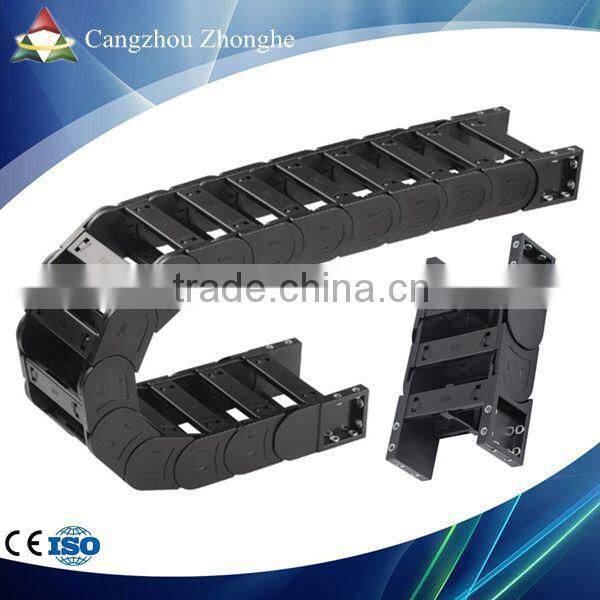

Help CenterWeight Bearing Nylon Cable Tray Chain/ Cable Drag Chain
Related Products
-
China Factory Produce Totally Enclosed Electrical Cable ChainUS$ 2.88 - 50.88MOQ: 1 Meter -
Small Size 25 Series Totally Enclosed Cable Protection ChainUS$ 5 - 10MOQ: 1 Meter
-
18 Series Nylon Semi Closed Cable Drag Chain/ Cable CarrierUS$ 3.9 - 7.9MOQ: 1 Meter
-
15 Series Plastic Semi Closed Cable Tray Chain/ Drag Chain Cable TrayUS$ 3.69 - 7.99MOQ: 1 Meter
-
China Supplier Bridge Type & Totally Enclosed Plastic Drag Conveyor ChainUS$ 2.88 - 29.99MOQ: 1 Meter
Principle for selecting drag chain
- inner height :take the most thick piece of the internally installed cable ,oil pipe,gas pipe or water pipe as the reference height plus 10%of the space height at least as the inner height HI.if overlapping ,take the overlapped height as the actual height .
- inner width :take the sum of the outside diameter of the thicker cables ,oil pipe,gas pipe or water pipe as the reference of the inner width and leave at least 10% of the space as a margin
- radius of a bend :take the biggest radius of a bend of a cable ,oil pipe,gas pipe or water pipe as a reference value and leave 10%of the space as a margin
Characteristics and Applications of drag chain
- The product can be used for such locations where repciprocating motions are required so that internally installed cables,oil pipes,gas tubes and water tubes can be draged and protected.
- Each joint of the chain can be opened up so as to facilitate repairs and maintenance. It gives low noises and is of antiwearing while running. It can also be operated under high speed.
- The drag chains have already extensively used in digital-controlled machine tools,electronic equipement,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.
Basic parameters of drag chain
- Material:reinforced nylon. It can stand with high pressure and has good tensile strength,toughness and elasticity,wearing and falmable resistance
- Resistances:It is oil and salt resistant.
- operating speed and acceleration :Max.operating speed is 5m/sec.and max.acceeleration is 5m/sec.(specfic speed and acceleration depends on specific situation).
- Service life: Under normal conditions,5million reciprocating motions can be reached (which is also related to the operating conditions.)

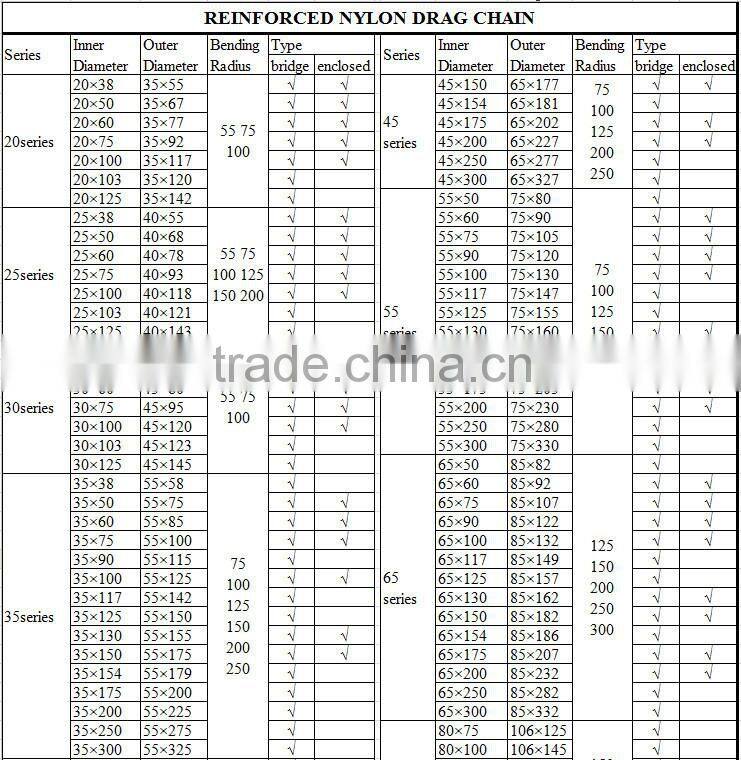

The above is only part of the product specifications, Other specifications, please contact me!

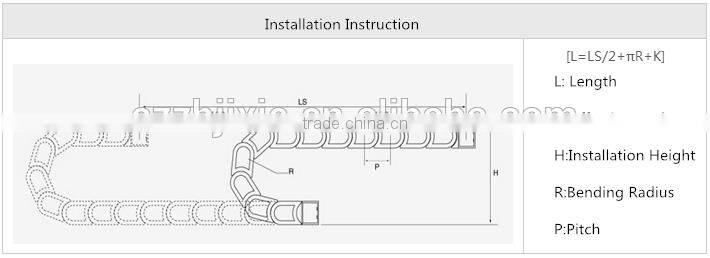

Installation for drag chain
Put a screw driver vertically into the opening hole at both ends of the cover and then open the cover .put the drag chain for cables and oil pipes according to the instructions provided .put the cover back .note that the fixed end and the moving end of a cable should be fixed by using a tension device.
when used in a long sliding service ,it is recommended to use a guiding grove,please ask our technical personnel about the usage of the guiding grove.
Other Product Show
1. 24 HOURS SERVICE FOR YOU
Our service is available for seven twenry-four! There will be a team at your service anytime.

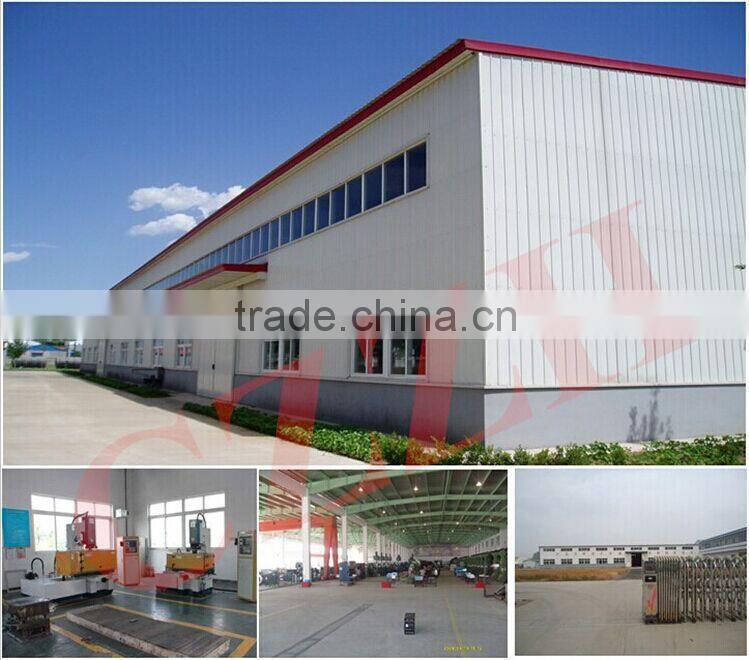

2. We are a MANUFACTURER , and we strictly control the costs and expenses to ensure the low price as well as high quality.
3. OEM of customized products/ logo /btand/ Packing is accepted.
4. We have more than 20 production lines, and there are enough stocks for normal size products, Quick delivery.
5.Our products have been approved by SGS , and reached FDA, ROHS etc, standards.
I will offer you the most suitable drag chain, the most competitive price!
