Specifications
1.Anti-Vibration and Adjustable Mount2.Diameter:80-300mm
3.Screw Thread:M12-M24
4.Height:10-100
5.Bearing Capacity:25-7653

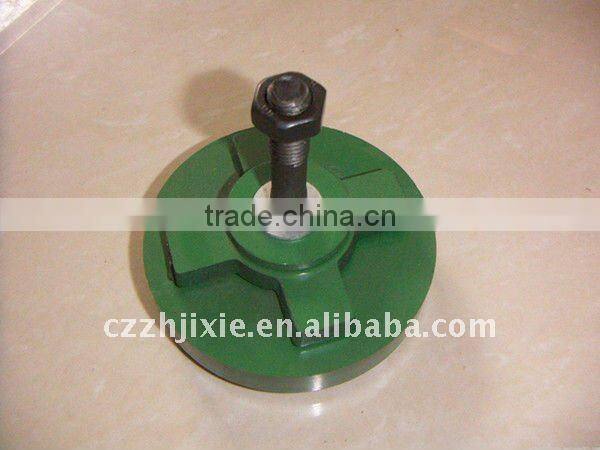

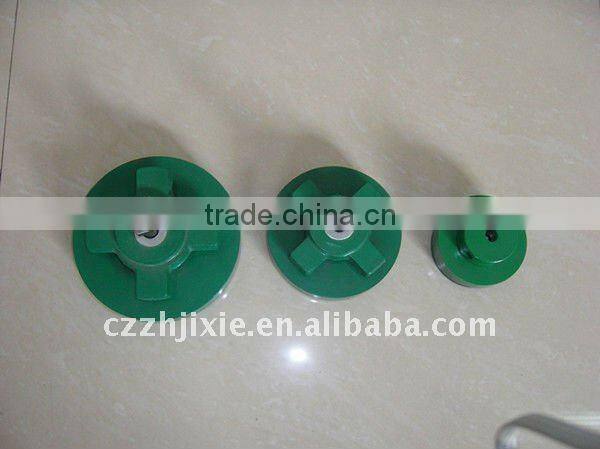

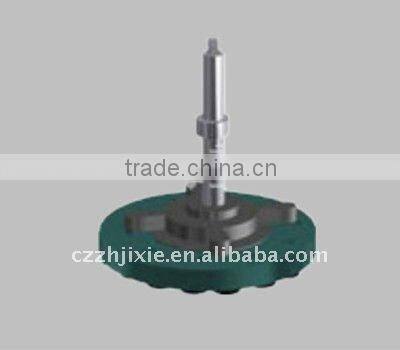

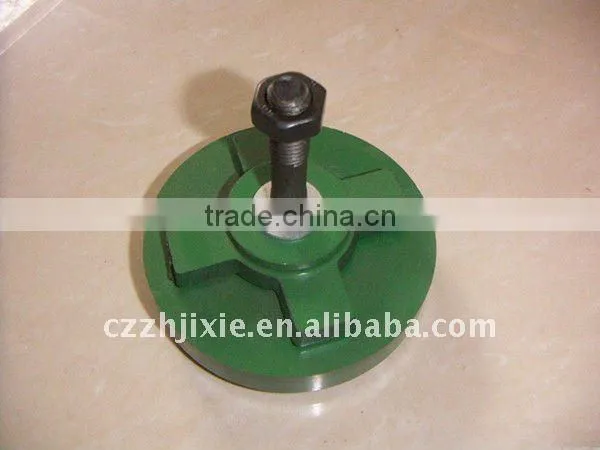

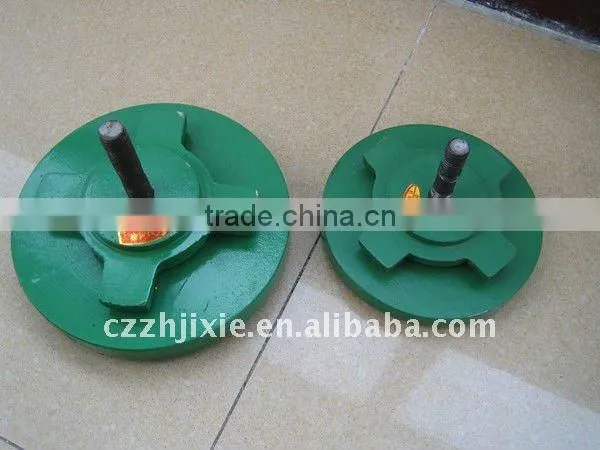

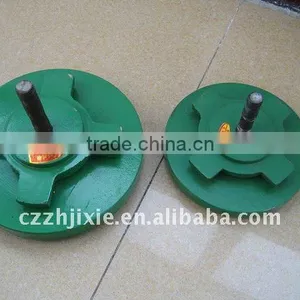

Product Name:Height Adjustable Mount
S78-8 Series Anti Vibration and Adjustable Mount
Model | 01 | 02 | 03 | 04 | 05 | 06 | 07 | 08 | 09 |
Out Diameter(mm) | 80 | 100 | 125 | 140 | 160 | 180 | 200 | 240 | 300 |
Height | 10 | 50 | 60 | 60 | 70 | 70 | 80 | 80 | 100 |
Screw Thread | M12 | M12 | M14 | M16 | M16 | M16 | M18 | M20 | M24 |
Adjustable Height(mm) | 10 | 10 | 12 | 12 | 16 | 16 | 16 | 16 | 16 |
Bearing Capacity(kg) | 204 | 408 | 612.2 | 714.3 | 816.3 | 918.3 | 1020.4 | 1224.5 | 1530.6 |
Send Inquiry to This Supplier
