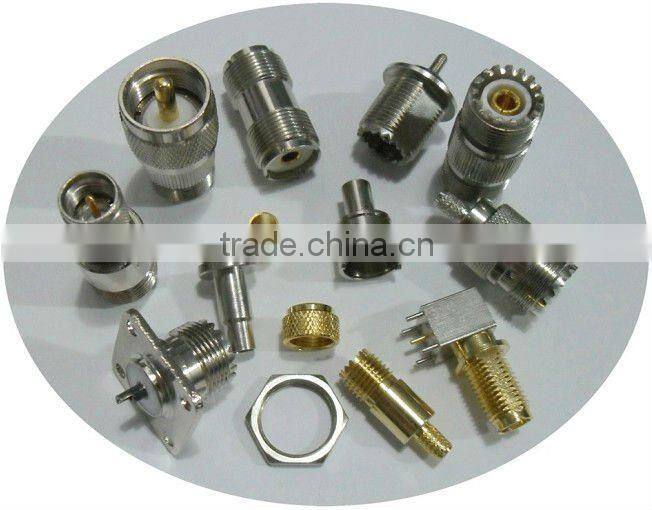

GOOD QUALITY UHF EU-5801A MINI UHF JACK receptable to PCB right Angle

Specifications

EMU-5801A Panel Mount UHF FEMALE to PCB Flange square
1)body BRASS with Gold or nickel plated
2)small contact resistance

EMU-5801A Panel Mount UHF FEMALE to PCB Flange square

UHF connectors are a threaded coupling mechanism designed to provide high electrical performance for micro wave applications up to 18GHZ.UHF connectors ensure excellent durability and mechanical strength.

General Specification



1.  ELECTRICAL



Frequency Range             0-3GHz

Impedance                75 Ω

Withstanding Voltage        750V

Insertion Loss                   1.0dB Max

Contact Resistance           30mΩ Max

Insulation Resistance        1000MΩ Max



2.  GENERAL CHARACTERISTICS



Open/Short Test: 100%

Hi-pot Test 500V: 100%

Connector Pull Force: 3.0 kgf

Storage Temperature:             -40°C to +85°C



SGS	date	(ppm)						re
		Cr 6+	Cd	Pb	Hg	PBB	PBDE
SHAEC1005703502	2010-5-10	ND	ND	ND	ND	ND	ND	OK
SHAEC1011967102	2010-8-21	ND	6	20845	ND	ND	ND
SHAEC1014806101	2010-10-20	ND	ND	ND	ND	ND	ND	OK
