Specifications

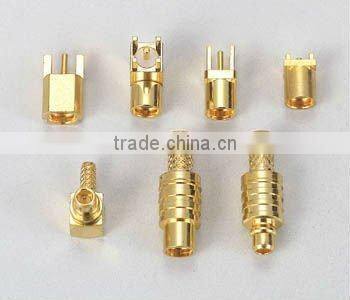

SMT surface mount MMCX female pcb mounting0~6GHz impedance, 50 ohms
very MINI size, mate to cable crimping RG178 available
MMCX connector The MMCX series is also called MicroMateTM. It is one of Amphenol's smallest RF connector line and was developed in the 1990's. MMCX is a micro-miniature connector series with a lock-snap mechanism allowing for 360 degrees rotation enabling flexibility in PCB layouts. MMCX connectors conform to the European CECC 22000 specification.
The micromate family of products is a 6 GHz 50 Ω interconnect system. A range of connectors are available including surface mount, edge card, and cable connectors.
Body |
brass |
Nickel or gold plated |
insulator |
PTFE |
|
Contact |
brass |
Gold plated thickness >8u” |
1. ELECTRICAL
Impedance: 50W nominal
Frequency Range: 0~6GHz
Rating Voltage: 500V
Dielectric Withstanding Voltage: 1500V
Contact Resistance: 3.0 mW MAX
Insulation Resistance: 5000 MW MIN.
2. GENERAL CHARACTERISTICS
Storage Temperature: -40°C to 85°C
3. RELIABILITY
DURABILITY: >500 CYCLES
SALT SPRAY TEST: APPEARANCE OK & CONTACT RESISTANCE 40mW max. (Exposed to salt mist conditions: concentration 5±1%, PH: 6.5-7.2, cycle is 13’s spray, 11’s stop, temp is 35±2°C, time: 8 hours.)
4. Rohs:
All the components of this connector are compliant with European directive 2002/95/CE”.

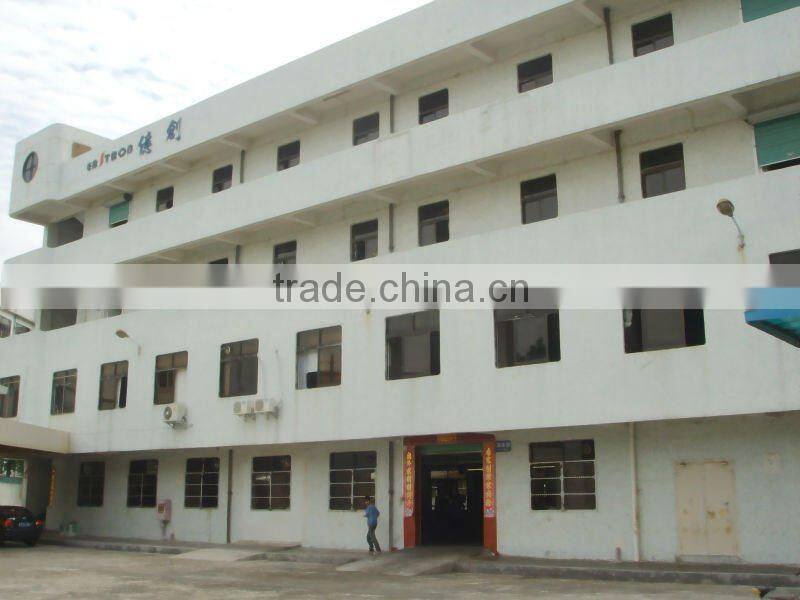

Factory View
Quality
- QC/Technical Support We possess digital calipers, digital micrometers, thread and pin gauges, tool microscopes, pitch diameter micrometers, height gauges, profile projectors, hardness testers, ohm testers and push/pull testers.
- Awards & Other Recognitions We are ISO 9001:2008 certified
Profile Each of our staff members possesses a college degree, and on average, they each have 4 years of experience.
