5" Digital Reversing System With Waterproof Camera

5" Digital Reversing System With Waterproof Camera photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Reverse Camera
Voltage:
DC 12V
Car Make:
Vehicle
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Type Reverse Camera
Voltage DC 12V
Car Make Vehicle
Place of Origin Guangdong, China
Brand Name OEM
Model Number MO-112D,CW-636

5" Digital Backup System, Reversing system features:



Features of monitor :
5 Inch TFT LCD color monitor with digital screen
TFT LCD monitor with wide view angle and high resolution display.
Picture image adjustable for Horizontal, Vertical, Mirror and Normal viewing
8 languages selectable for user operation
Automatic backlighting for buttons.
Full-function remote control.
Multiple video formats available: AUTO/ PAL/ NTSC.
Up to 3 AV inputs.
On-board speaker.
Operates from 10 - 32V. Supports 12V or 24V automobile battery.

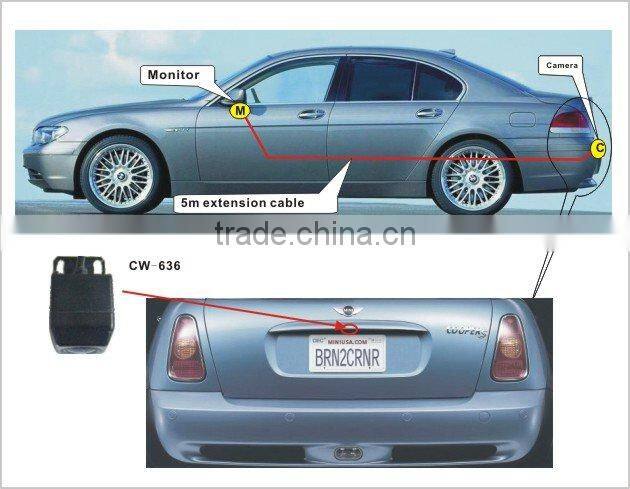

Automatically switches to back-up, left or right side camera views.
OSD keeps normal image even if it is mirror image in horizontal.



5" TFT- LCD color monitor with digital screen - MO-112D SPECIFICATIONS:
Product: 5" TFT LCD color monitor with digital screen
Audio output: 1W.
Loudspeaker: one 4.0cm round loudspeaker.
Power supply: Automobile storage battery (10-32V).
Power consumption: about 5 W .
Outer dimension: 147.6mm (W) × 109mm (H) × 26.5mm (T) (without flush mount),
165mm (W) × 126mm (H) × 29.2mm (T) (with flush mount).
Dot pitch: 0.0529(H) × 0.1587 (V).
Resolution: 640 x 3(RGB) x 480 .
Color depth:24 bit
Display colors:16.7M dithering.
Contrast: 500:1.
Brightness: 200cd/m2.
Viewing angle: U: 50 / D: 70, R/L: 70.
Operating temperature: -20 oC ~+70oC,RH90%.
Storage temperature: -30 oC ~+80oC,RH90%.

5" Digital Reversing system with waterproof camera5" Digital Reversing system with waterproof camera5" Digital Reversing system with waterproof camera5" Digital Reversing system with waterproof camera

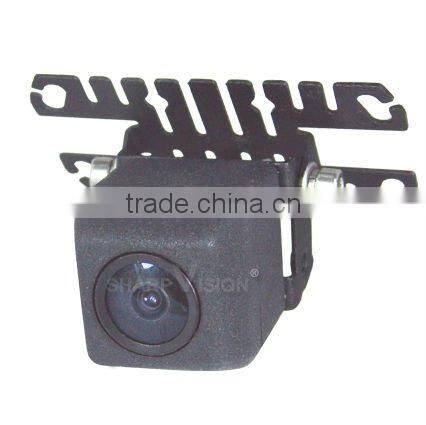

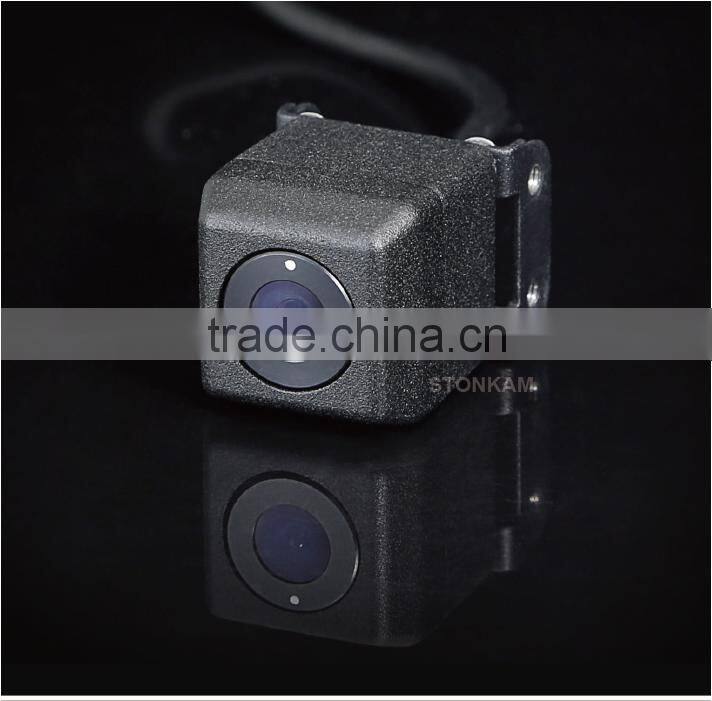

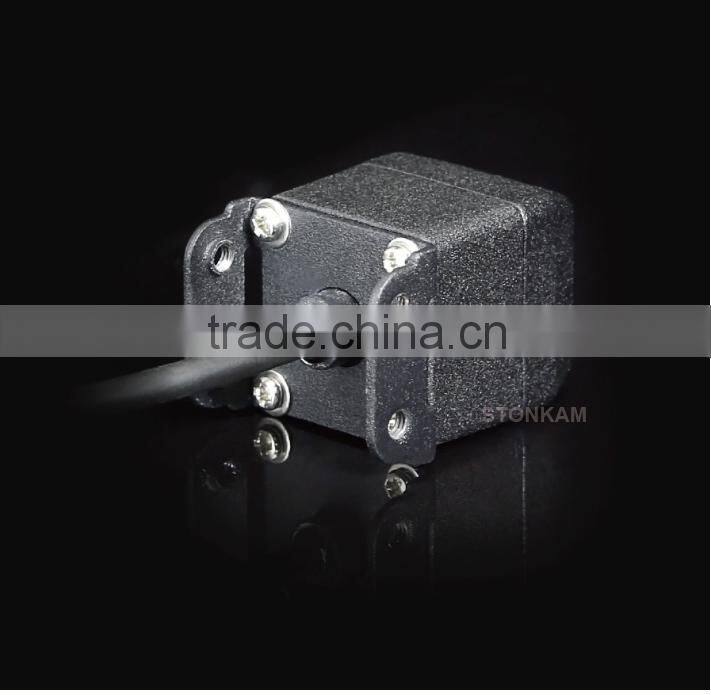

Features of camera:
Super wide angle (150° )
CMOS chips available
Waterproof camera for long-term outdoor usage

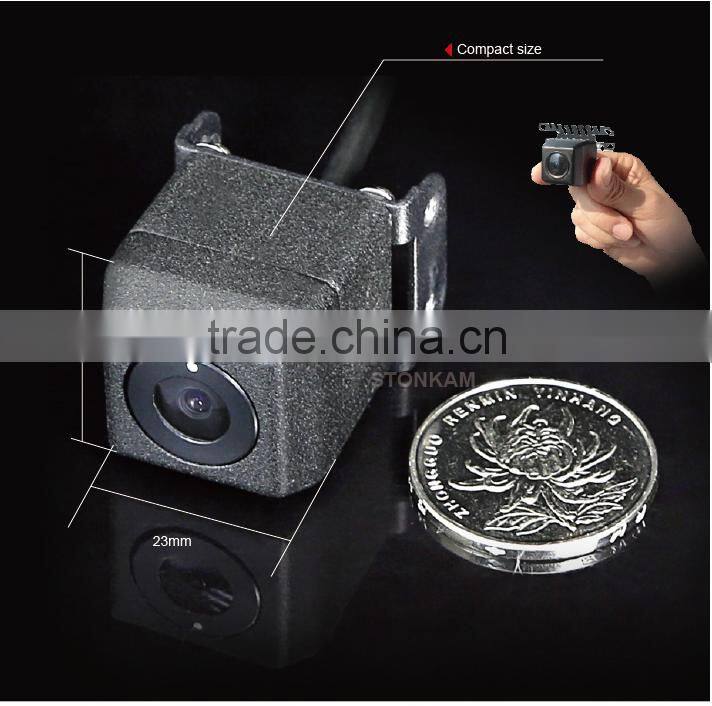

Compact size for more convenient installation
Hidden-type, specially designed for car rear view systems



5" Digital Reversing system with waterproof camera

5" Digital Reversing system with waterproof camera



5" Digital Reversing system with waterproof camera5" Digital Reversing system with waterproof camera5" Digital Reversing system with waterproof camera5" Digital Reversing system with waterproof camera5" Digital Reversing system with waterproof camera
