9 Inch Camera Monitor System for Bus
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Car Make:
all kinds
Place of Origin:
Guangdong, China
Brand Name:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Car Make
all kinds
Place of Origin
Guangdong, China
Brand Name
OEM
Model Number
MO-148D, CW-635, CS-402, CD-069
Warranty
1 Years

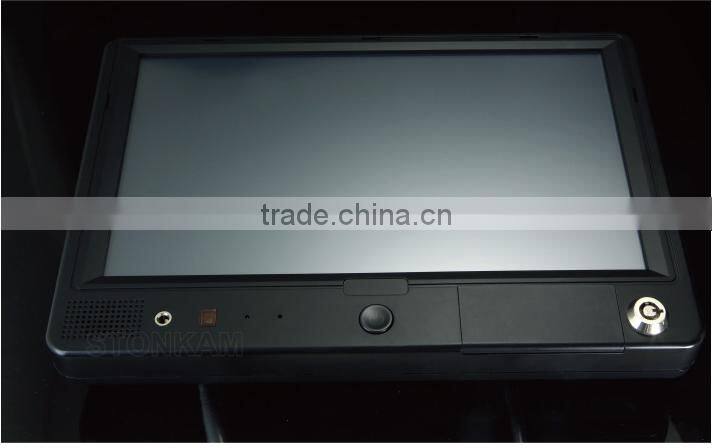

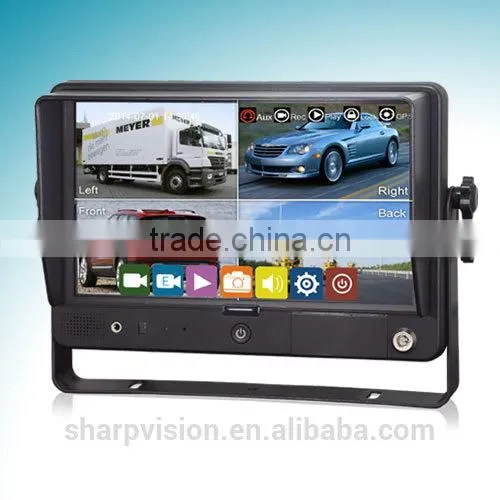

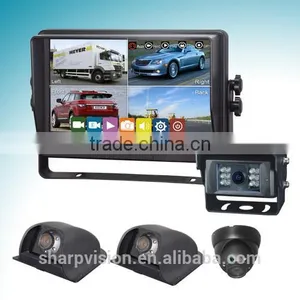

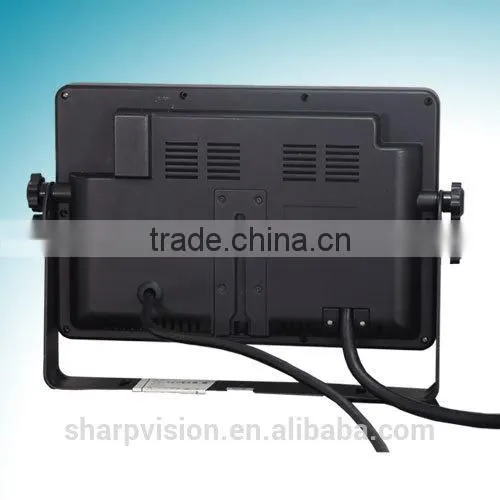

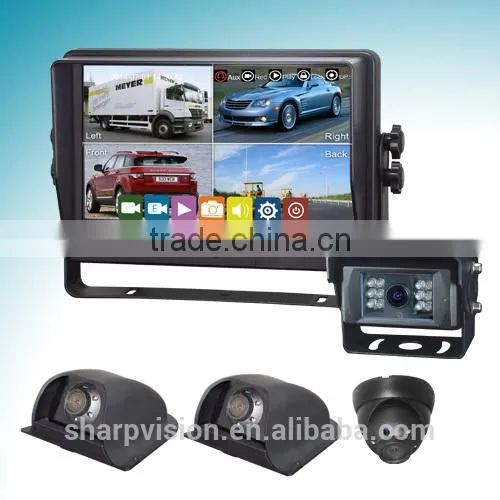

9 inch camera monitor system for bus
7 Inch TFT LCD color monitor with digital screen
| 9-inch digital quad monitor with video recording function | |

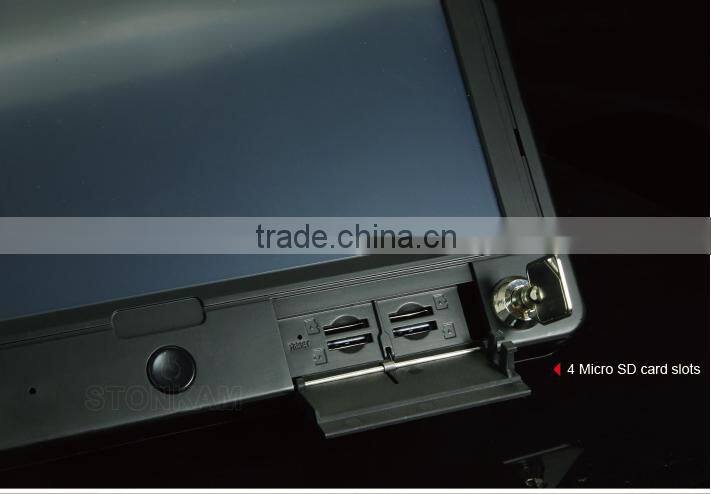

| Support 4 x 128GB(micro SD card) | |
| Multiple recording modes like Power-on Recording, Manual Recording, Schedule Recording, Cyclic Recording, G- | |
| sensor Recording, Trigger Recording, Motion Detection Recording, Over Speed Recording, and Emergency Recording | |
| G-Sensor trigger recording when vehicle runs into collision. Sensitivity can be adjusted | |
| Trigger record(Back camera), motion detection record mode available | |
| Over speed record / switch display. Above/under certain speed can trigger displaying the corresponding | |
| camera and record | |
| 1500mAh battery for backup power | |
| 9-inch resistive touch screen available | |
| Snapshot available and RTC with time stamped on the photo | |
| Auto backlight for the LCD | |
| Eight languages available | |
| Single, dual, triplex, quad display mode available | |
| 4 trigger lines(EXTRA HDMI TRIGGER available); trigger priority is available | |
| Menu lock function available | |
| Reverse/turning left/turning right warning yardstick available | |
| Automatically boot when triggered under the condition of standby, and automatically switch to trigger | |
| channel | |

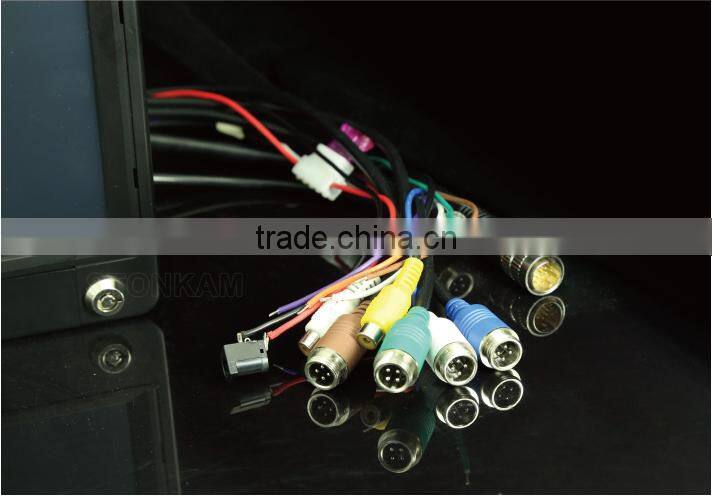

| Four cameras inputs, one external GPS input for tracking | |

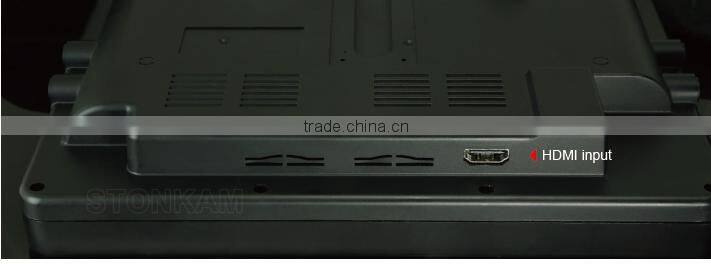

| One video & audio output; synchronal video output;one AUX input, and one HDMI input(up to 720P) | |
| Short-circuit protection function |
| LCD Dimension | 9" |
| TV System | NTSC / PAL |
| Resolution ratio | 800 x 3 (RGB) x 480 |
| Brightness | 400 cd/m² |
| Viewing angle | U: 50° / D: 70°, R/L: 70° |
| Recording time | 4x128G TF card supporting 164(PAL)/ 144(NTSC) hours cyclic recording for high quality (D1) |
| Operating temperature | -20 ℃- +70℃, RH90% (Battery is from 0~70°C) |
| Storing temperature | -30 ℃- +80 ℃, RH90% |
| Consumption | Max. 30W |
| Input voltage | 10-32V |
| Video input | 4 camera video; Peak value:1Vp-p; Impedance: 75 ohm |
| Audio input | 4 camera audio and 1 channel AUX audio input; Peak value: 1Vp-p; Impedance: 4.7k ohm |
| Video recording file | micro SD card (maximum 4x128G) |
| Video recording file layout | MSV AVI |
| Loudspeaker | 1W/8Ω |
| Compressed format | H.264 |

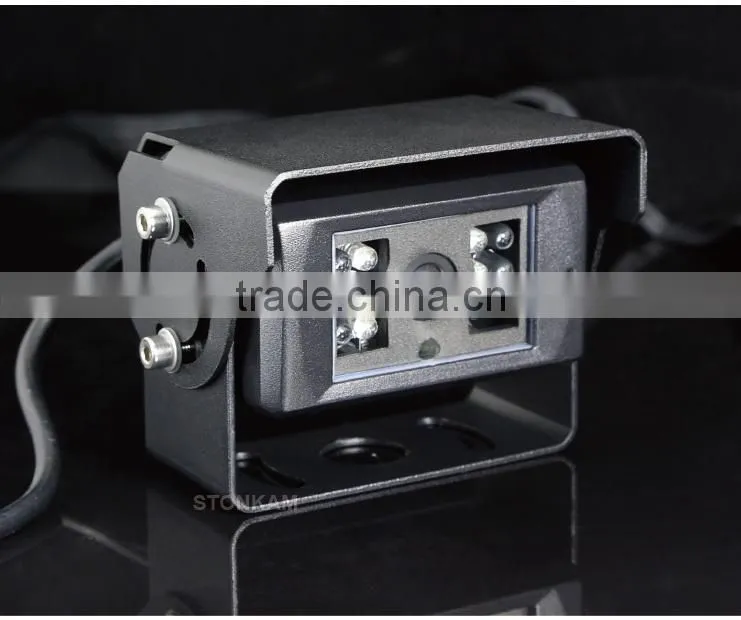

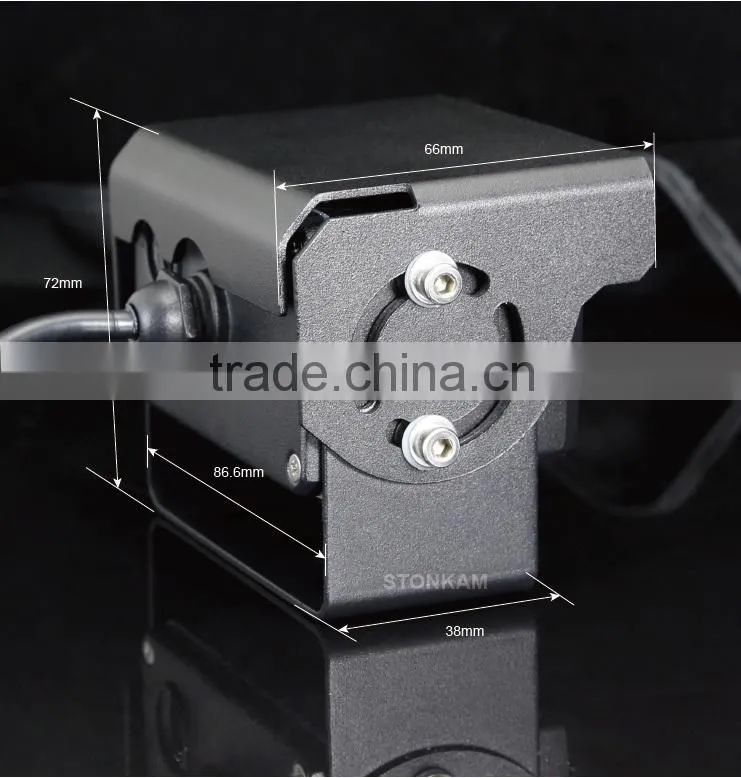

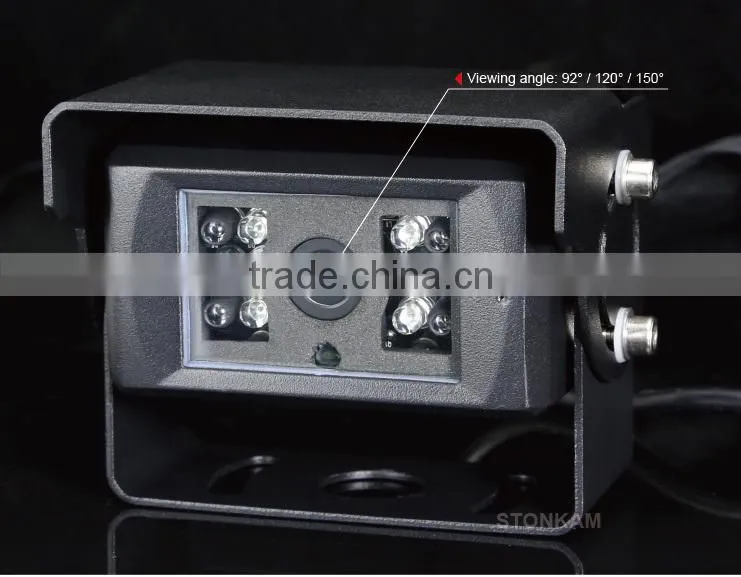

Car camera(CW-639)
Super wide angle (150°)
Automatic heating when the camera’s running temperature is below 10°C (optional)
Distance label selectable to be open or closed
Waterproof and weather resistant housing for outdoor use
Excellent night vision
Waterproof and weather resistant housing for outdoor use
IR distance: approx. 10m
Infrared LED light: 12

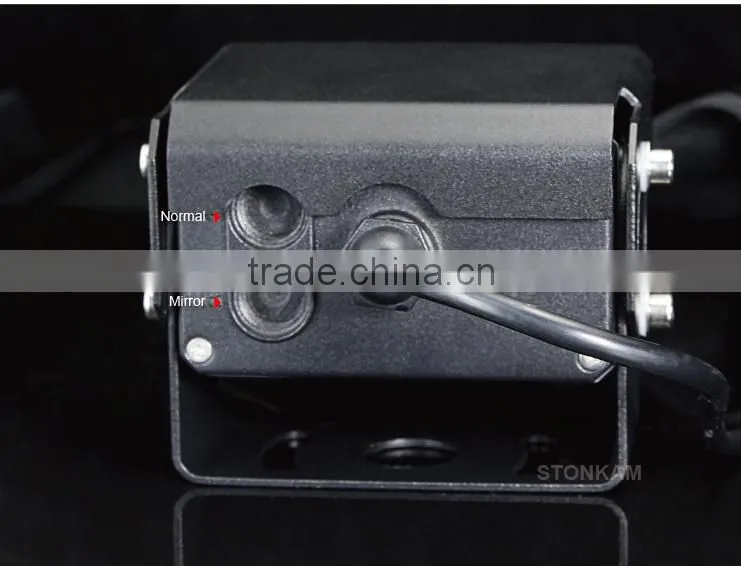

Mirror / Normal image switch (depending on the chips)
Vandal-proof Waterproof IR HD dome camera(CD-069):
Compact profile
Waterproof and anti-vandal housing
Hard ceiling or suspended ceiling applications
5 IR LEDs
IR Distance: 3~5 m
High resolution

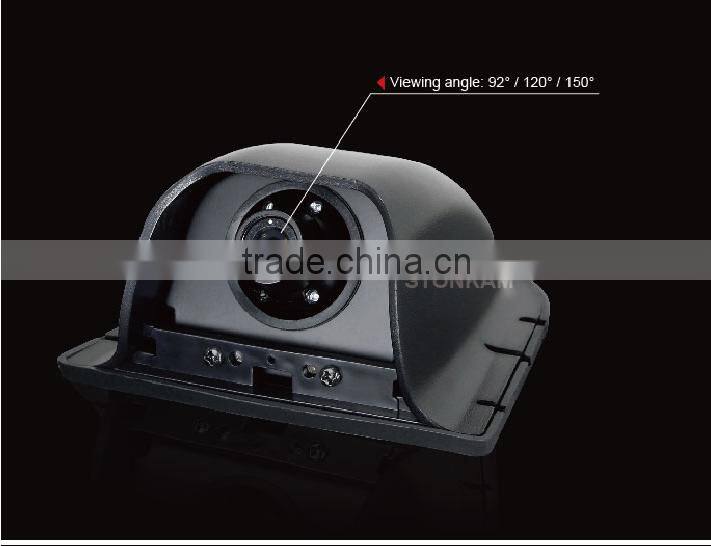

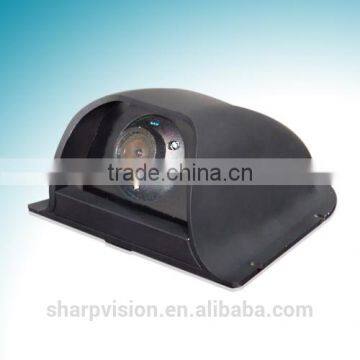

Side view camera(CS-402):
Compact profile
Waterproof and anti-vandal housing
Convenient angle adjustment
Infrared LED light: 5
IR Distance: 5 m
High resolution
