9 inch car reversing camera system for bus

Name: 9 inch car reversing camera system for bus
Brand: OEM
Price: Negotiable

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Guangzhou
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	OEM	Model Number:	MO-148D, CW-087, CS-402, CW-644
Warranty:	1 Years

Product Description

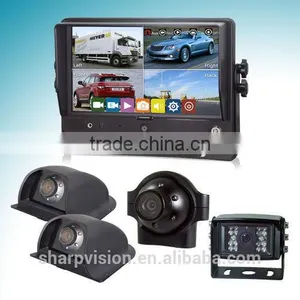

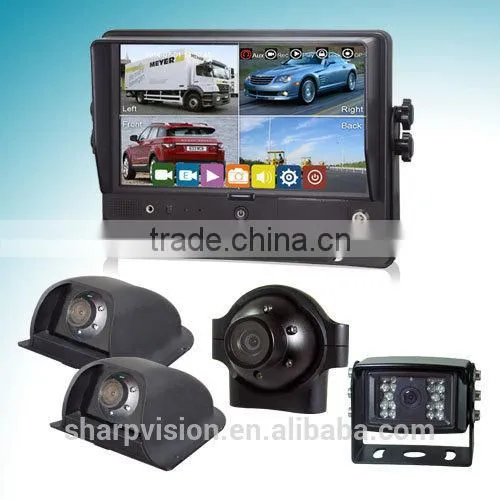

9 inch car reversing camera system for bus

7 Inch TFT LCD color monitor with digital screen

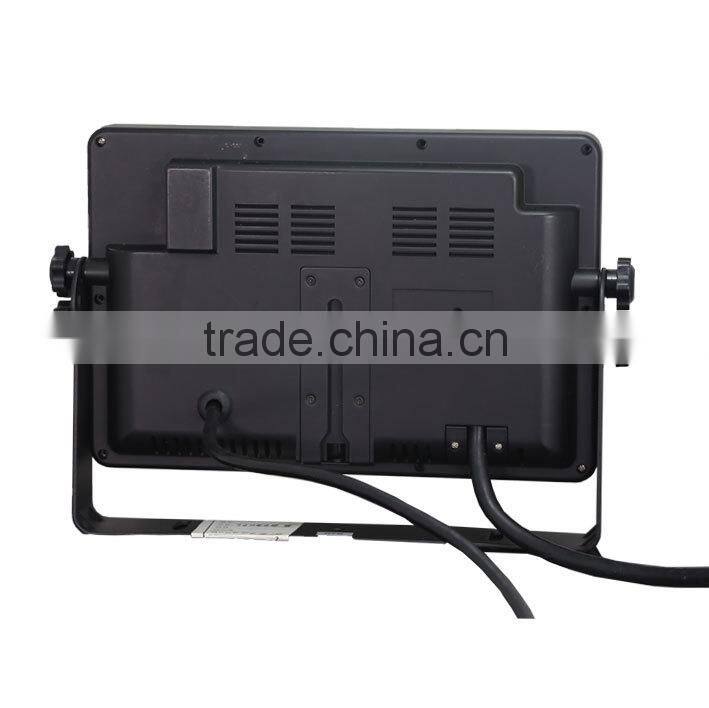

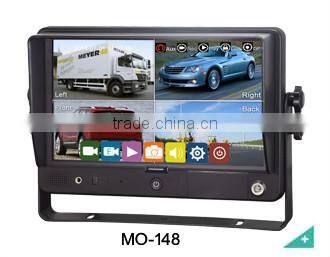

	9-inch digital quad monitor with video recording function
	Support 4 x 128GB(micro SD card)
	Multiple recording modes like Power-on Recording, Manual Recording, Schedule Recording, Cyclic Recording, G-
	sensor Recording, Trigger Recording, Motion Detection Recording, Over Speed Recording, and Emergency Recording
	G-Sensor trigger recording when vehicle runs into collision. Sensitivity can be adjusted
	Trigger record(Back camera), motion detection record mode available
	Over speed record / switch display. Above/under certain speed can trigger displaying the corresponding
	camera and record
	1500mAh battery for backup power
	9-inch resistive touch screen available
	Snapshot available and RTC with time stamped on the photo
	Auto backlight for the LCD
	Eight languages available
	Single, dual, triplex, quad display mode available
	4 trigger lines(EXTRA HDMI TRIGGER available); trigger priority is available
	Menu lock function available
	Reverse/turning left/turning right warning yardstick available
	Automatically boot when triggered under the condition of standby, and automatically switch to trigger
	channel
	Four cameras inputs, one external GPS input for tracking
	One video & audio output; synchronal video output;one AUX input, and one HDMI input(up to 720P)
	Short-circuit protection function

LCD Dimension	9"
TV System	NTSC / PAL
Resolution ratio	800 x 3 (RGB) x 480
Brightness	400 cd/m²
Viewing angle	U: 50° / D: 70°, R/L: 70°
Recording time	4x128G TF card supporting 164(PAL)/ 144(NTSC) hours cyclic recording for high quality (D1)
Operating temperature	-20 ℃- +70℃, RH90% (Battery is from 0~70°C)
Storing temperature	-30 ℃- +80 ℃, RH90%
Consumption	Max. 30W
Input voltage	10-32V
Video input	4 camera video; Peak value:1Vp-p; Impedance: 75 ohm
Audio input	4 camera audio and 1 channel AUX audio input; Peak value: 1Vp-p; Impedance: 4.7k ohm
Video recording file	micro SD card (maximum 4x128G)
Video recording file layout	MSV AVI
Loudspeaker	1W/8Ω
Compressed format	H.264

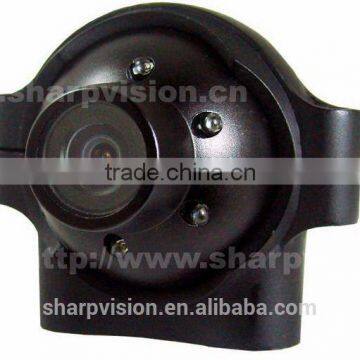

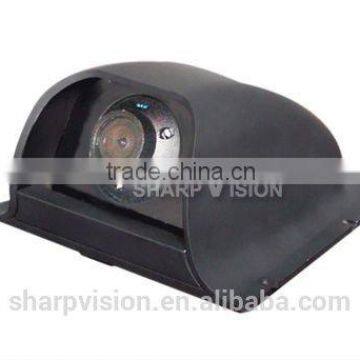

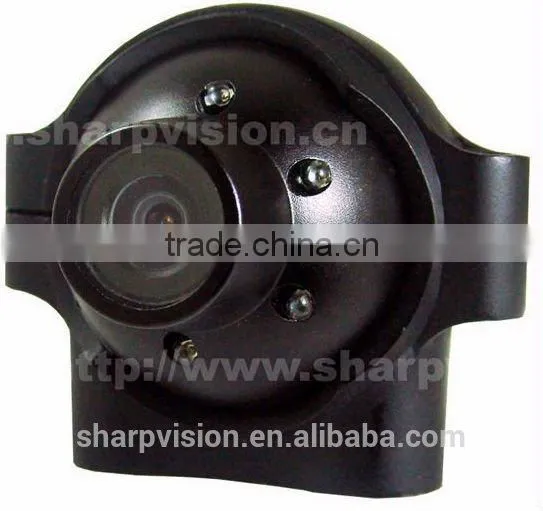

Side view camera(CS-402):

Compact profile

Waterproof and anti-vandal housing

Convenient angle adjustment

Infrared LED light: 5

IR Distance: 5 m

High resolution

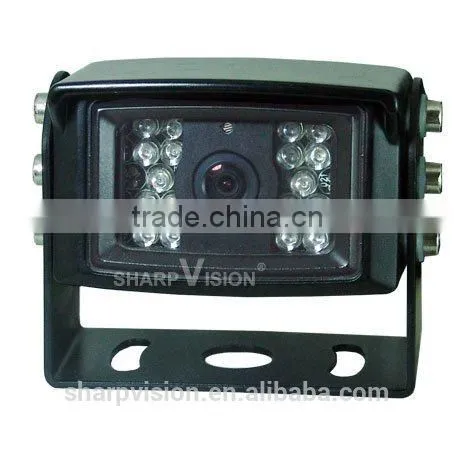

Infrared car camera features(CW-087):

Waterproof and weather resistant housing for outdoor use

Night vision available, day/ night sensor for automatic adjustment

IR distance: 15m

Infrared LED light: 18

Mirror/ Normal image switch (depending on the chips)

Distance label selectable to be open or closed

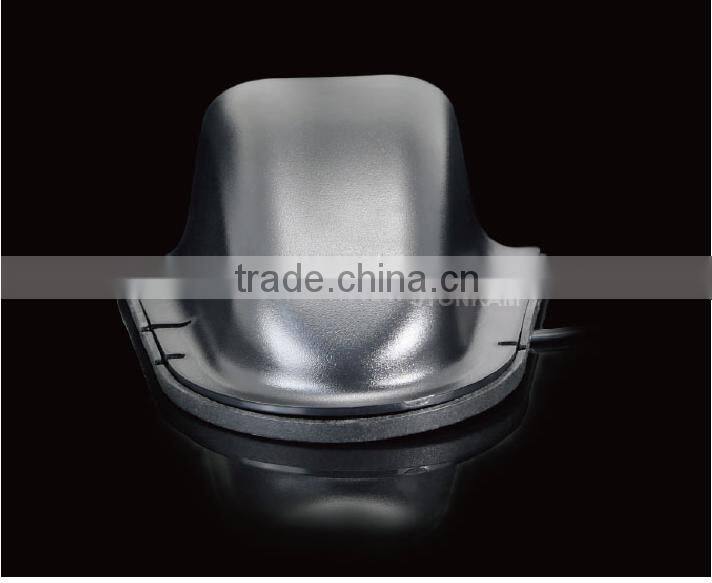

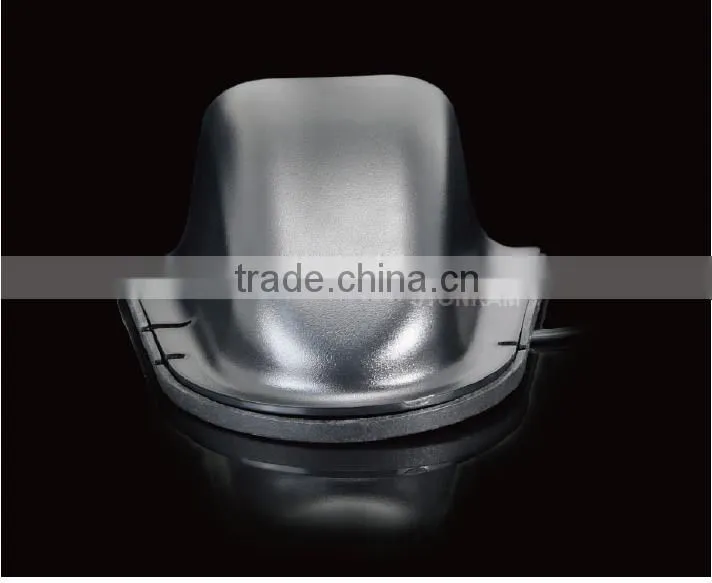

Waterproof car front view camera(CW-644):

Compact profile

Waterproof and vandalproof

Convenient angle adjustment

Infrared LED light: 5

IR Distance: 5 m

High resolution

Can be mounted on rear, front, or either side of vehicles
