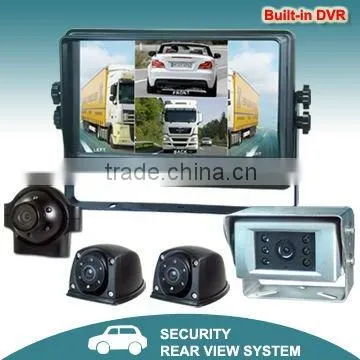

9-inch Rear View System with built-in dvr monitor for car
9-inch digital quad monitor with video recording function; the recording file stored in SD CARD; maximum 32G supporting 12 hours continuous recording; support 720x240(NTSC)/720x288(PAL) 30fps
Video file layout: AVI; Coded format: motion JPEG
Support photographing and RTC with time preserved on the photo. Support date & time setting of the video
Touch screen: 9 inch resistive touch screen available, can recognize up, down, left, right side "swipe"; support two- point touch to realize channel switching

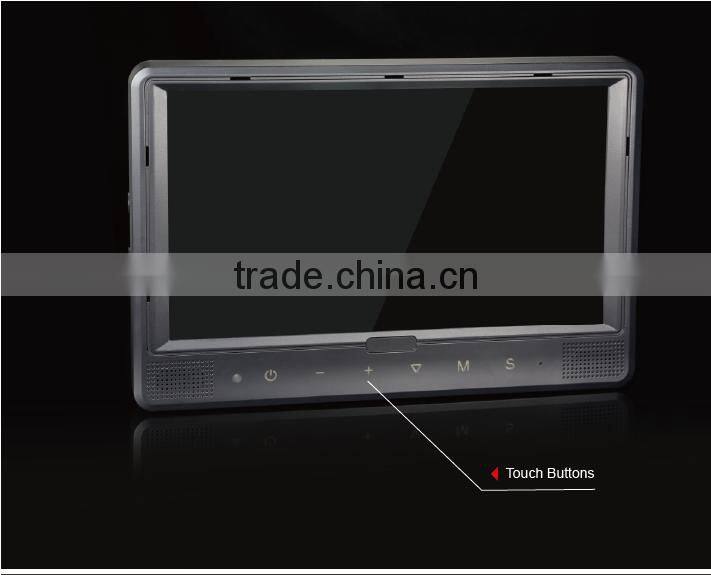

Support touch button control function
Support level 5 LCD manual backlighting adjustment
Support IR remote control
System format: NTSC/PAL
Loudspeaker: can play audio signal from camera and external input; volume adjustable from 0 to 20
Support four cameras inputs and multi-channels output
Picture image may be adjusted for Horizontal, Vertical, Mirror and Normal viewing; characters of the menu will not inverse when set to mirror image.
Cameras image display mode: single, dual, triplex, quad, PIP functions, trefoil, and Y-split image available
Five trigger lines: once a trigger line is activated, image automatically switches to its corresponding camera; trigger priority is available
Auto scan: scan channel and time can be set according to the users' demand.
Reverse warning yardstick
Automatically boot when triggered under the condition of standby, and automatically switch to trigger channel
One channel video output: synchronal video output
One channel audio output, one channel AUX input
Operating voltage range: 10-32V
Short-circuit protection function
Applicable to vehicle and ship surveillance, indoor / outdoor security systems
Easy installation and convenient operation, with innovative functions

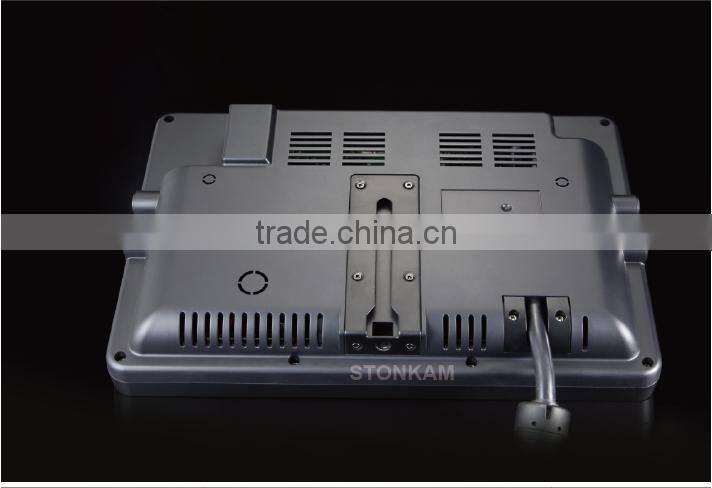

9 '' quad monitor with built-in DVR(MO-141D)
LCD Dimension: 9 inches
System format: NTSC/PAL
Resolution ratio: 800 x 3(RGB) x 480
Brightness: 400cd/m²
Viewing angle: up: 50°, down: 70°, left: 70°, right: 70°
Operating temperature: -20 °C- +70 RH90%°C
Storing temperature: -30 °C- +80 RH90%°C
Consumption: max. 25W
Input voltage: 10V-32V
Video input: 4 channels CAMERA video and 1 AUX video input;
Peak value: 1Vp-p;
Impedance:75 ohm
Audio input:4 channels CAMERA audio and 1 channel AUX audio input;
Peak value: 1Vp-p;
Impedance:4.7k ohm
Video recording file: SD card (maximum 32G)
Video recording file layout: AVI;
Coded format: motion JPEG
Loudspeaker: 1W/8Ω

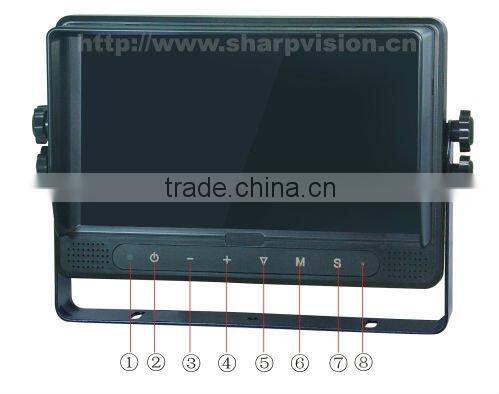

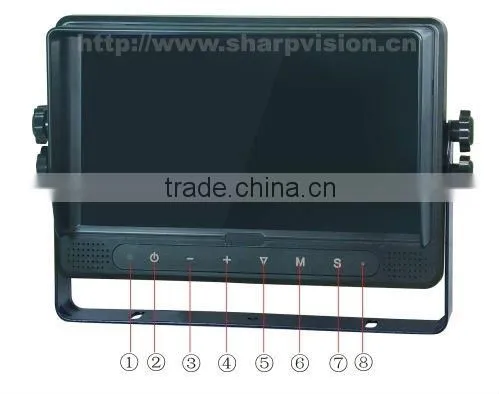

| 1 | IR remote control receiver head |
| 2 | Power switch |
| 3 | Volume/Value down |
| 4 | Volume/Value up |
| 5 | Menu selection down selector |
| 6 | Menu |
| 7 | Channel switch |
| 8 | Light Sensitive Resistor IC |

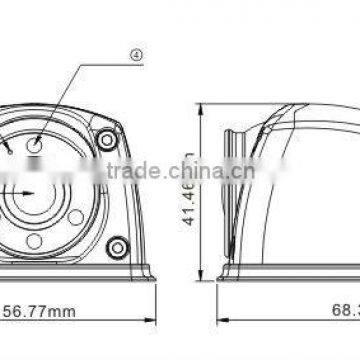

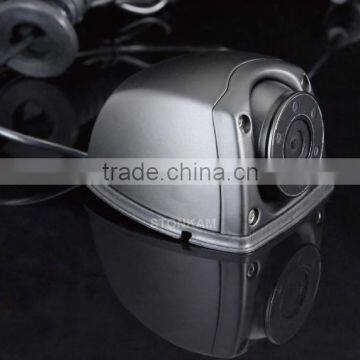

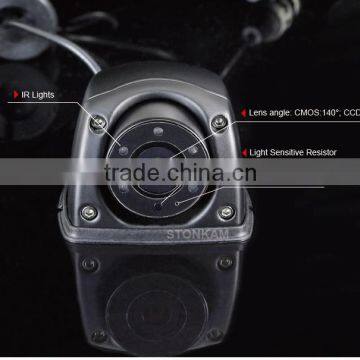

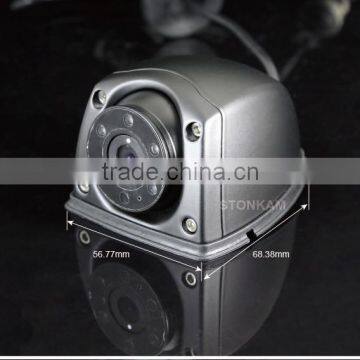

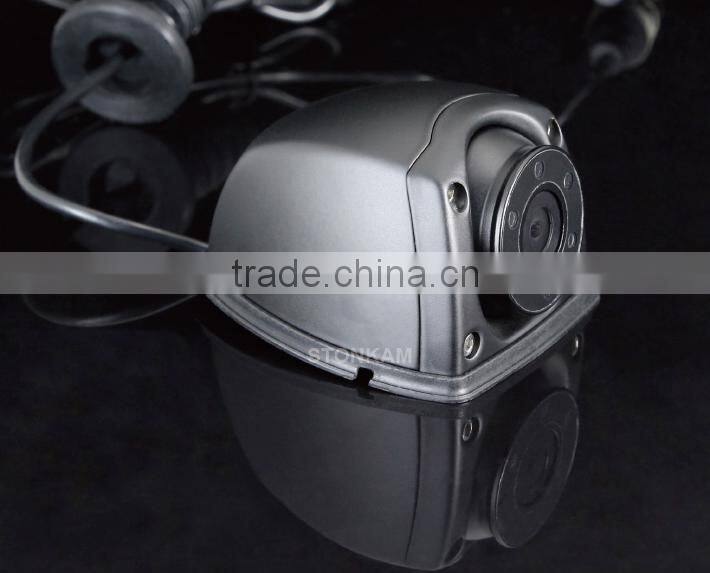

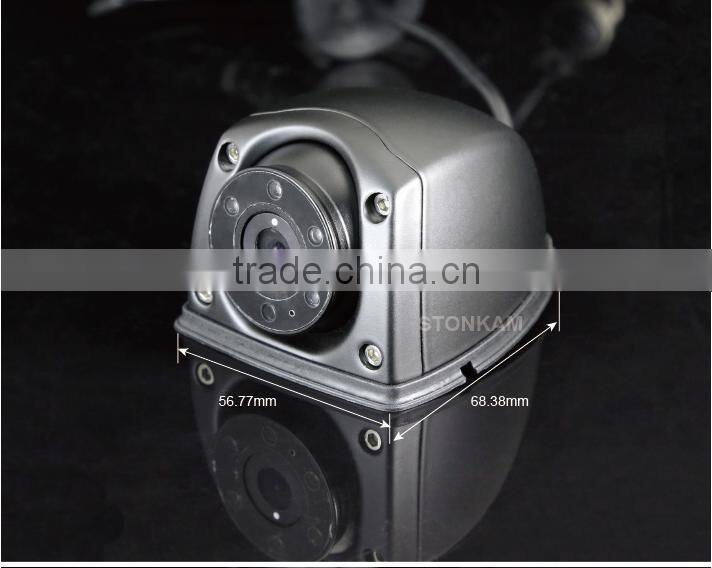

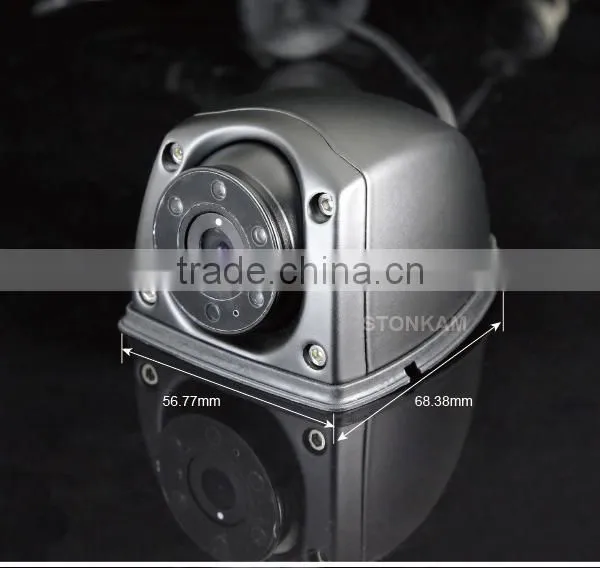

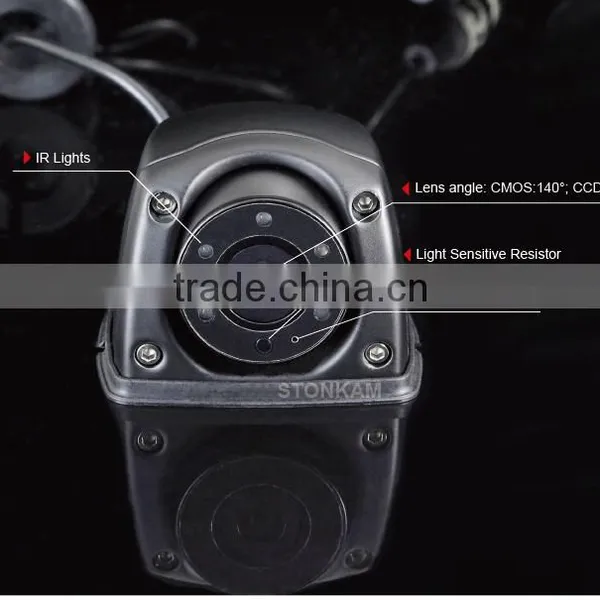

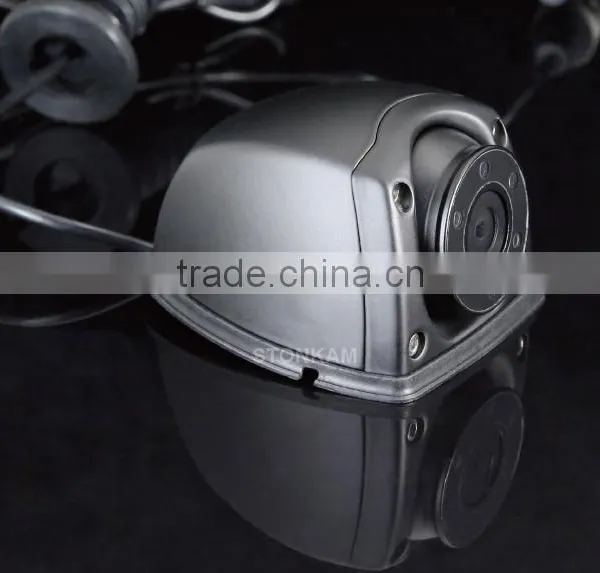

Features of Camera (CS-406)

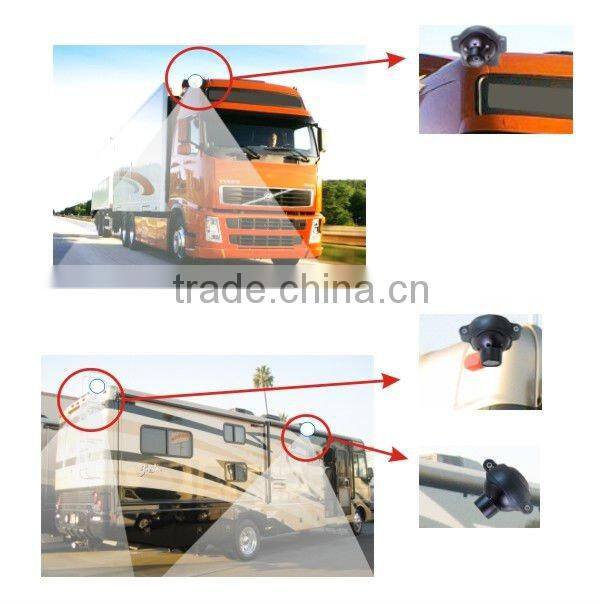

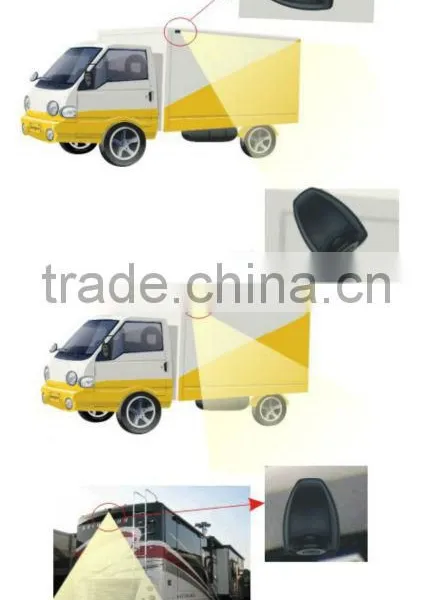

Flexible installation: Can be mounted on rear, front, or either side of vehicles
Convenient angle adjustment
Waterproof, shatterproof protection level equals to IP69K.
Super wide viewing angle(150°)
Performs in rugged conditions. Operating temperature: -20ºC +70ºC
Mirror / Normal image Adjustment (depending on the chips)
Distance label selectable to be open or closed
Night vision available
IR distance: 5m
Audio available

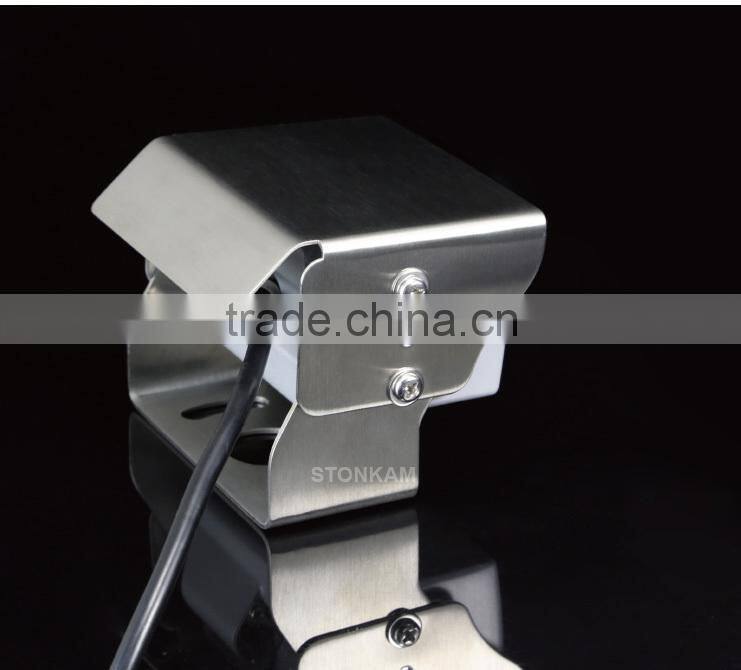

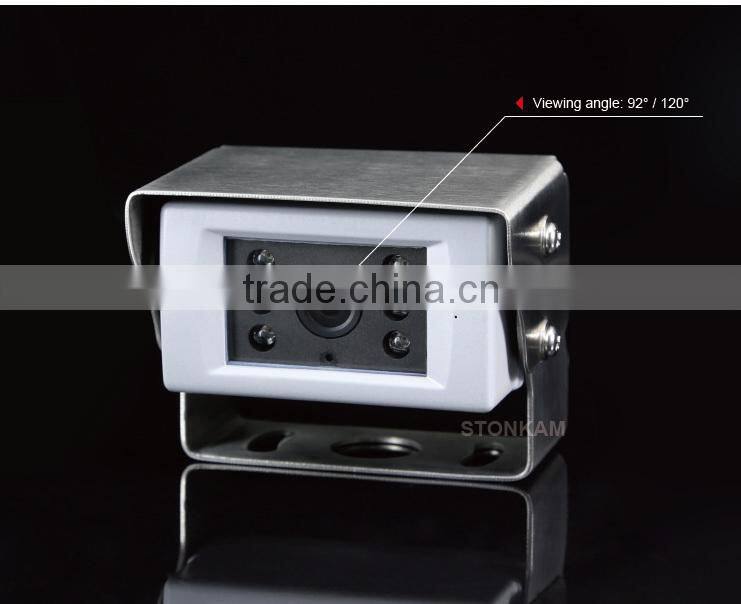

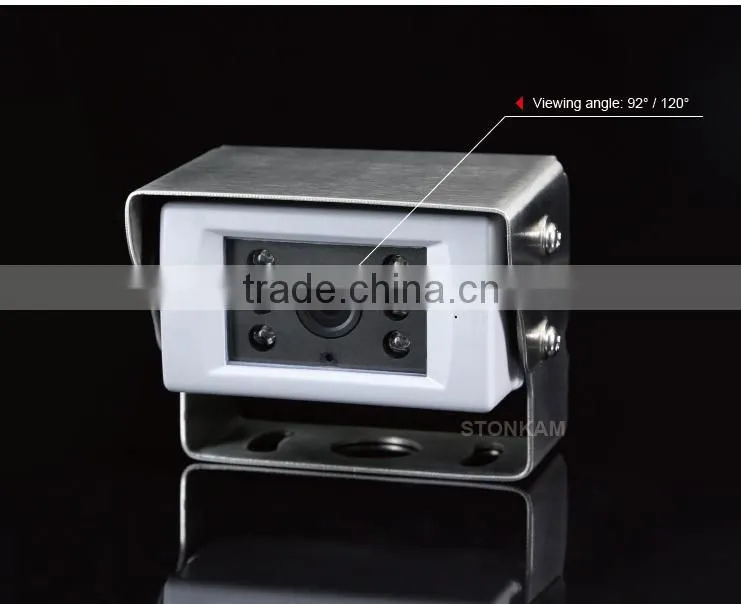

Features of Camera (CW-657) :
Firm structure - aluminum-alloy housing, stainless-steel mount and sun-shield
Waterproof and weather resistant housing for outdoor use
Night-vision function (6 infrared lights)
Compact design for more convenient installation

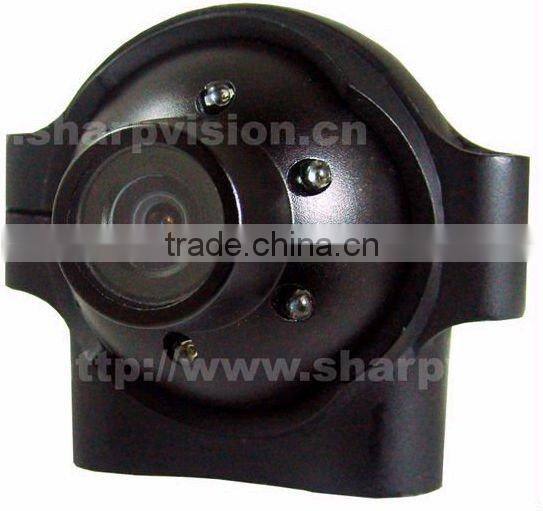

Features of Camera (CW-644) :
Compact profile
Waterproof and vandalproof
Convenient angle adjustment
Infrared LED light: 5
IR Distance: 5 m
High resolution
Can be mounted on rear, front, or either side of vehicles
Testing Standard: MIL-STD-105E
Tests
Manufacturing Process
Tests
FAQ
Q: What is the MOQ ?
A: 1 piece
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E. We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
