Quad view color car rear view system:

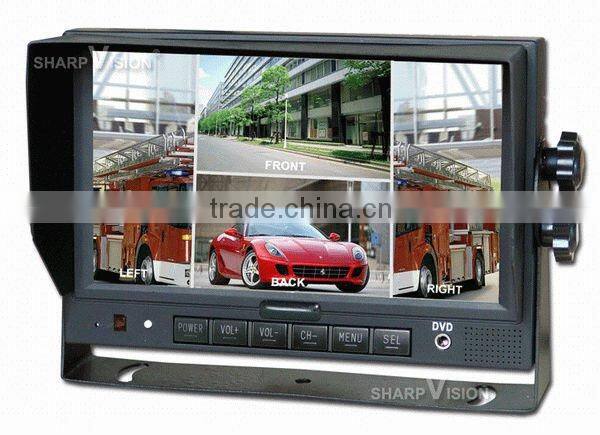

Features of car rear view digital monitor (MO-117D)
7 Inch Digital Color LCD Quad monitor with Touch screen.
Single, dual , triple , quad, trefoil, Y-split image and PIP functions available.
Power output from the monitor being 4X300mA.
1 DVD/AV input and 4 camera inputs; camera title can be set: (maximum 8 characters).
The display effect, volume and mirror function for each camera can be separately set up.
The priority of quad picture and dual picture can be set up.
With trigger wire for dual picture, the relative cameras can be combined optionally.
Camera's name can be set up: 8 characters the longest.
The boot-strap display can be set as your perfect display mode.
Four trigger wires for cameras.
Once a trigger wire is activated, image automatically switches to its relative camera.
Auto scanning and timed image switch.
Image of monitor auto switches to the working channel.
Operates from 10~32V.

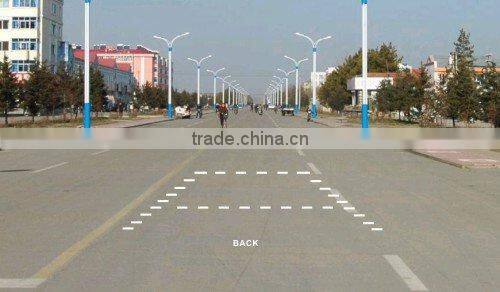

Backup distance grid & left / right-turning indicator arrow available.
Applicable to both indoor / outdoor security systems and vehicle rear view systems.
New style, multiple functions, easy installation and convenient operation.

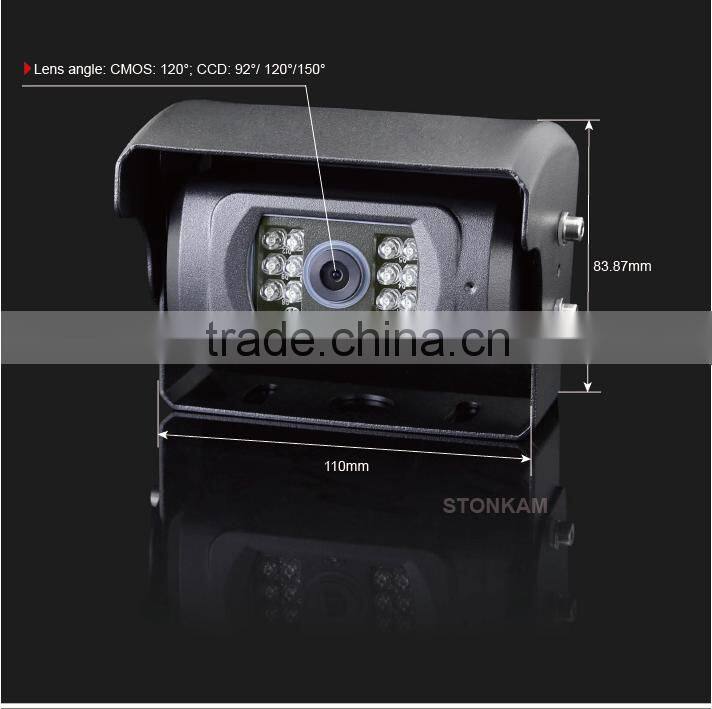

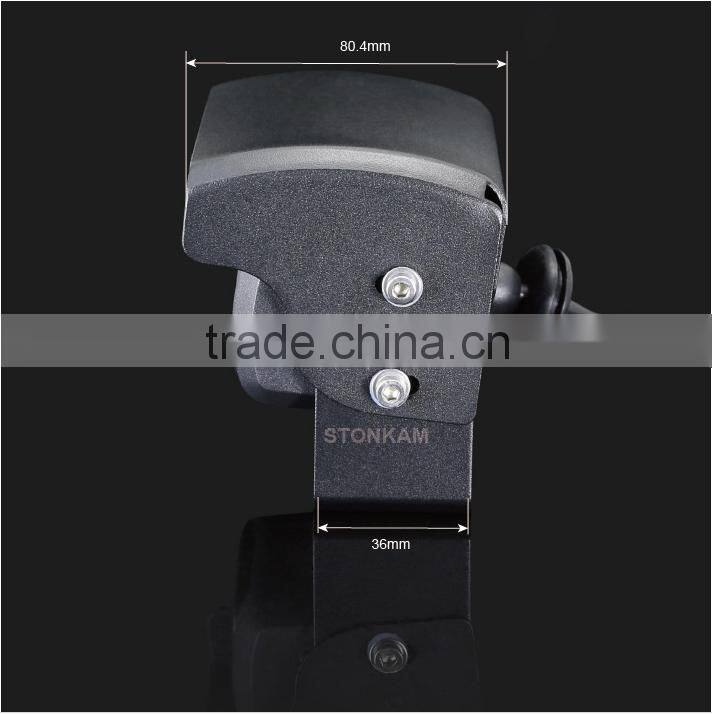

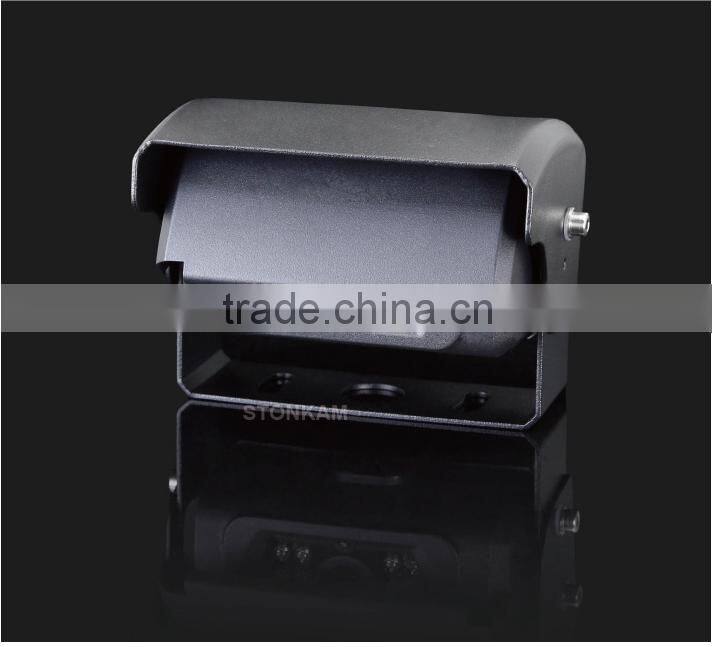

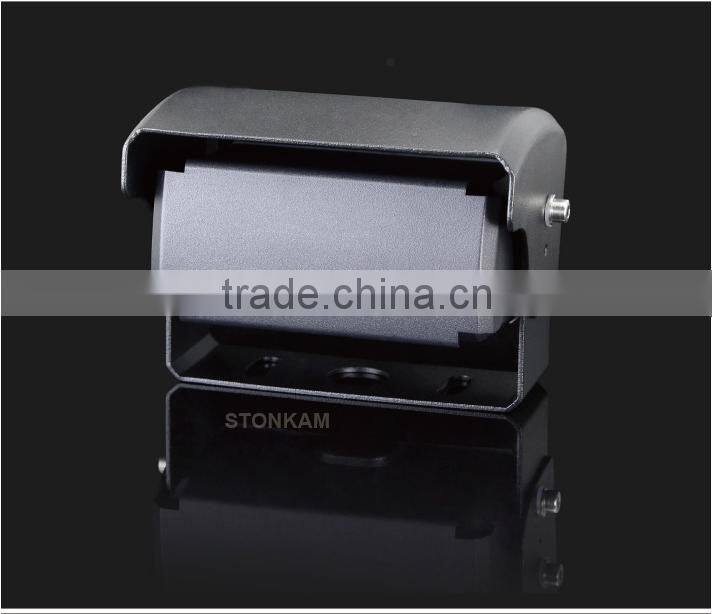

Features of Car rear view camera (CW-635M):

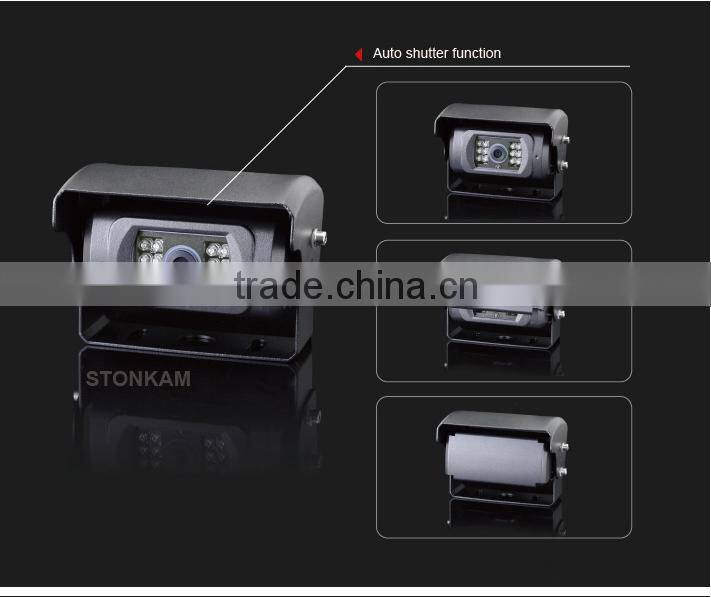

1. Backup camera with auto shutter
2. Super wide angle (150° )
3. Automatic heating when the cameras running temperature is below 10(optional)
4. Performs in rugged conditions
5. Distance label selectable to be open or closed
6. Waterproof and weather resistant housing for outdoor use
7. Night vision available, day/ night sensor for automatic adjustment
8. IR distance: approx. 10m
9. Infrared LED light: 12

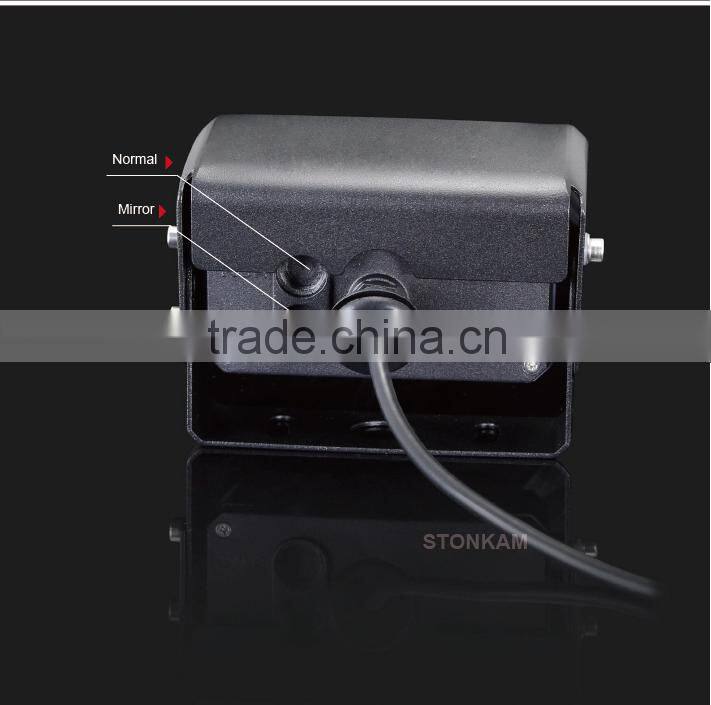

10. Mirror/ Normal image switch (depending on the chips)

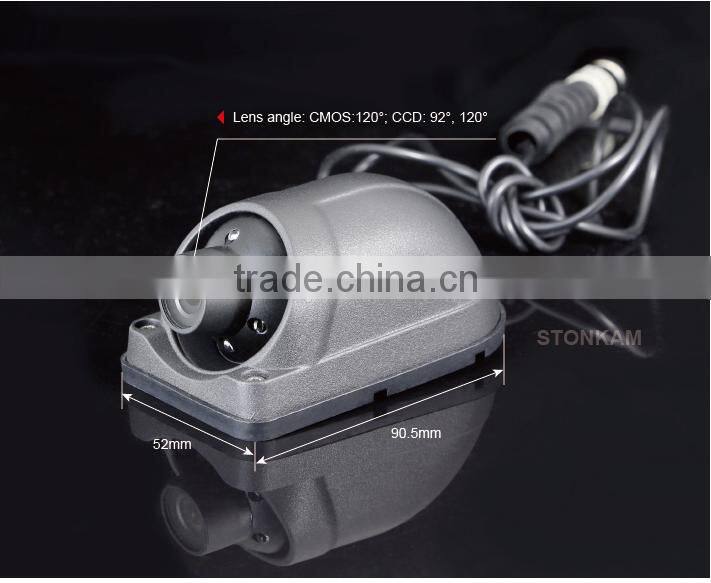

Features of car rear view camera (CW-644)
1. Compact profile
2. Waterproof and vandalproof
3. Convenient angle adjustment
4. Infrared LED light: 5
5. IR Distance: 5 m
6. High resolution

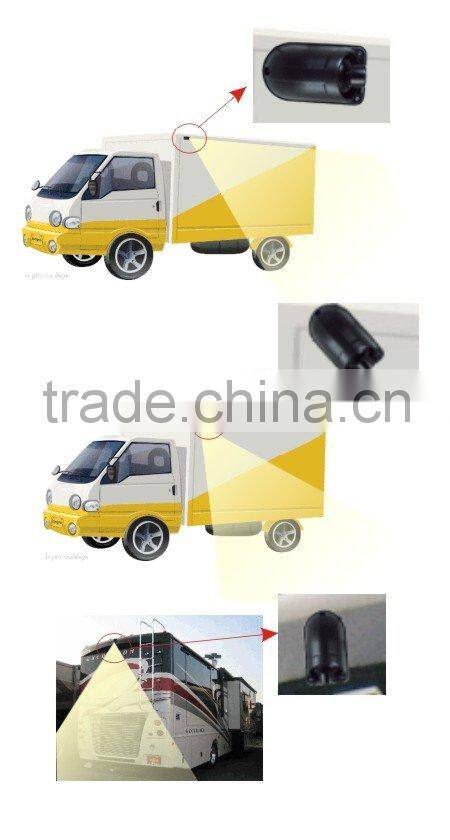

7. Can be mounted on rear, front, or either side of vehicles

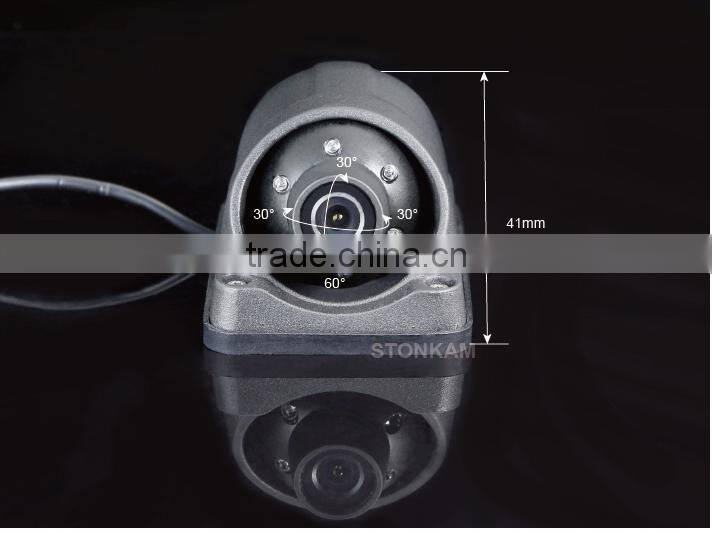

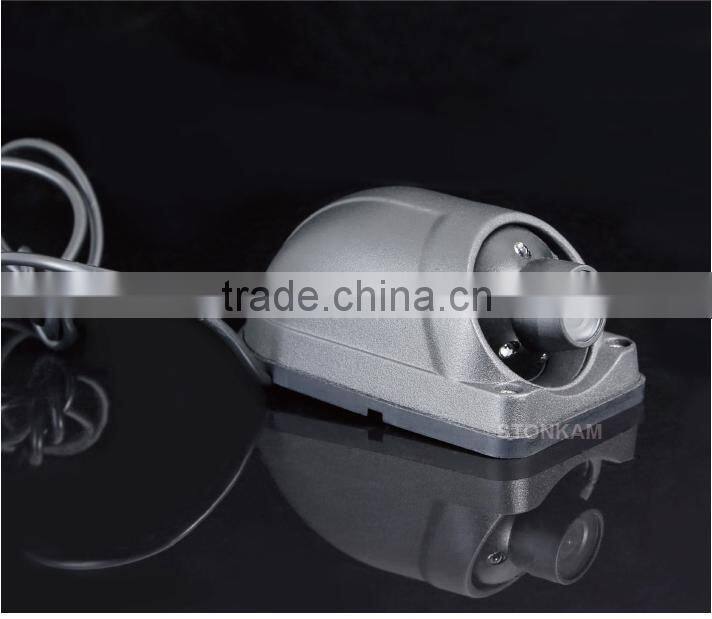

Features of car rear view camera (CS-404)
1. Compact profile
2. Waterproof and vandalproof
3. Convenient angle adjustment
4. Infrared LED light: 5
5. IR Distance: 5 m
6. High resolution
7. Can be mounted on rear or either side of vehicles
7" COLOR TFT LCD Quad Monitor with Touch screen - MO-117D
1. Dimension: 7" TFT-LCD color monitor with bui lt-in quad
2. TV System: NTSC/PAL .
3. Resolution: 800 x 3(RGB) X 480
4. Brightness: 400cd/m²
5. Contrast: 400 :1
6. Viewing angle: U: 50/ D: 70, R/L: 70
7. Aspect ratio: 16:9
8. Dot pitch: 0.0642(W) × 0.1790(H)
9. Operating Temperature: -20°c -+70°c
10. Storage Temperature: -30 °c -+80 °c
11. Power consumption: max. 25W
12. Power for cameras: max. 4×300mA, 12V
13. Video inputs: 4 video inputs for cameras: peak value: 1Vp-p, impedance: 75 ohm.
1 DVD input: peak value: 1Vp-p, impedance: 75 ohm.
14. Audio inputs: 4 audio inputs for cameras: peak value: 1Vp-p, impedance: 4.7K ohm.
1 AUX audio input for cameras: peak value: 1Vp-p, impedance: 4.7K ohm
1 DVD input: peak value: 1Vp-p, impedance: 4.7K ohm.
15. Video outputs: 1 REC video output: peak value: 1Vp-p, impedance: 75 ohm.
1 LIVE video output: peak value: 1Vp-p, impedance: 75 ohm.
16. Audio output: 1 LIVE audio output: peak value: 1Vp-p, impedance: 4.7K ohm.
17. Touch screen specification: Transmittance>=80%
Operation pressure: 10~110g
Response time: <10ms.
◊Rear Panel :
◊Connection Diagram:
◊Electronic label
