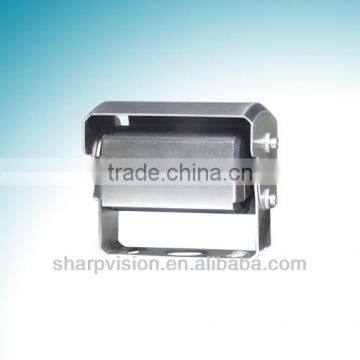

Help CenterWaterproof Reverse Camera With Auto Shutter
Related Products
-
Waterproof Color Side View Mirror CameraNegotiableMOQ: 1 Piece -
Waterproof Color Car Side View CameraNegotiableMOQ: 1 Piece
-
Waterproof Color Cmos Hidden Car CamerasNegotiableMOQ: 1 Piece
-
Waterproof Truck Video Camera With AutoshutterNegotiableMOQ: 1 Piece
-
Waterproof Color Rear View Car CameraNegotiableMOQ: 1 Piece
Waterproof hd reverse camera with autoshutter Features:
Extra smaller
Stainless-steel sun-shield and U-bracket

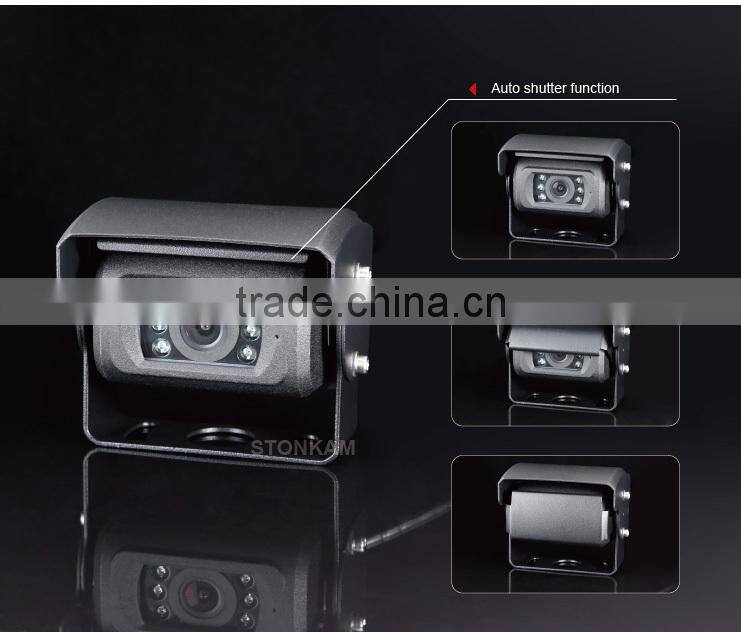

With auto shutter
Super wide angle (150°)
Automatic heating when the camera's running temperature is below 10°C(optional)
Performs in rugged conditions
Distance label selectable to be open or closed
Waterproof and weather resistant housing for outdoor use
Night vision available, day/ night sensor for automatic adjustment
IR distance: approx. 8m
Infrared LED light: 12
Mirror/ Normal image switch (depending on the chips)
PC1089 Features:
Pixelplus 1/3", 500 TV lines, high definition CMOS sensor: PC1089N
Wide power supply input: 10~32V ; Working temperature: -30°C~70°C.
With infrared lights; Night vision can auto switch to B/W mode. Good night vision performance, small noise
and no color aberration.
IR-CUT optional, effectively avoid color aberration in daylight. eg. shooting green plant in high fidelity in the daylight.

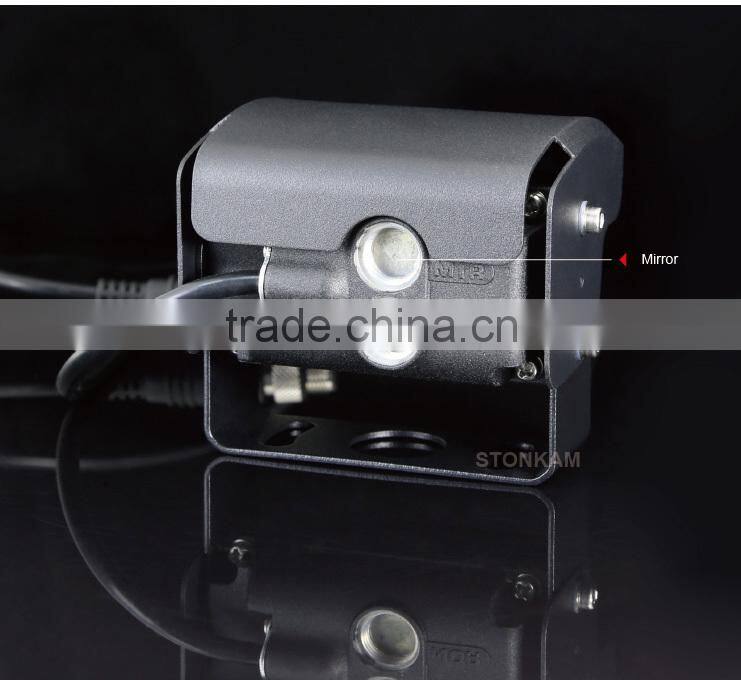

External mirror and normal image adjustable, audio optional, and P/N available.
1/3" COLOR CMOS Specifications
Image device: Pixelplus 1/3" Color CMOS PC1089N
TV System: PAL/NTSC
Effective Pixels: 728 x 488 pixels
Sensing Area: 4.6228mm x 3.6112mm
Scanning System: 2:1 Interlace
Sync. System: Internal
Resolution: 500 TV Lines
Horizontal Sync. Frequency: 15.625KHz/15.734KHz
Vertical Sync. Frequency: 50Hz/60Hz
Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
Microphone: Optional
Video Output: 1.0Vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
Signal to noise ratio: Better than 48dB
White balance: Auto
Electronic Shutter: Auto:1/50 (PAL)1/60(NTSC)-1/100000
Backlight Compensation: Auto
Current Consumption: Day: 12V/80mA; Night: 12V/120mA; max. 530mA (Heating open)
Power Supply: 10~32V
Operating Temperature: -30°C- +70°C, RH 95% MAX
Storage Temperature: -40°C- +80°C, RH 95% MAX

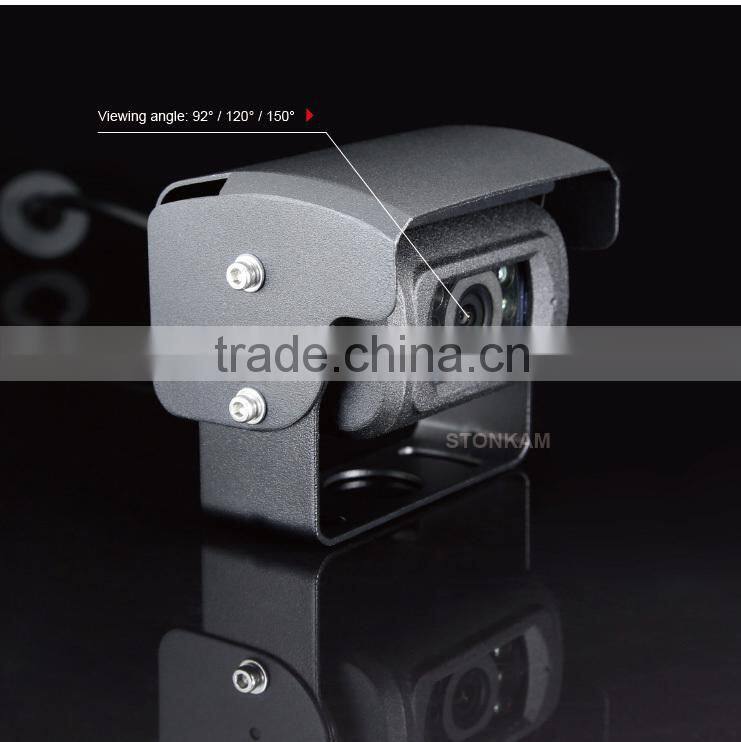

Lens Angle: 120° /150°
Image device:1/3” SHARP CCD
