Waterproof Truck Video Camera With Autoshutter

Waterproof Truck Video Camera With Autoshutter thumbnail-1
Waterproof Truck Video Camera With Autoshutter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Reverse Camera, truck video camera
Voltage:
DC 12V
Car Make:
all kinds
Contact Supplier Request Quote Chat Now
Sharpvision Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Reverse Camera, truck video camera
Voltage DC 12V
Car Make all kinds
Place of Origin Guangdong, China
Brand Name OEM
Model Number CW-656




Product Description

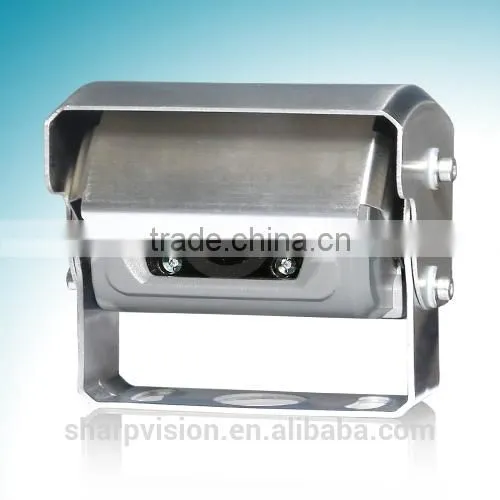

Waterproof truck video camera with autoshutter Features:



  • Extra smaller
  • Stainless-steel sun-shield and U-bracket

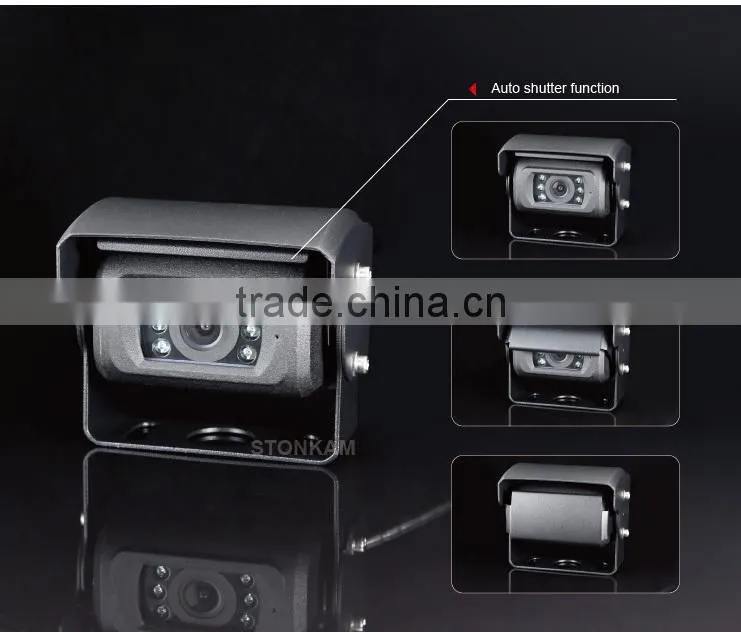

  • With auto shutter
  • Super wide angle (150°)
  • Automatic heating when the camera's running temperature is below 10°C(optional)
  • Performs in rugged conditions
  • Distance label selectable to be open or closed
  • Waterproof and weather resistant housing for outdoor use
  • Night vision available, day/ night sensor for automatic adjustment
  • IR distance: approx. 8m
  • Infrared LED light: 12

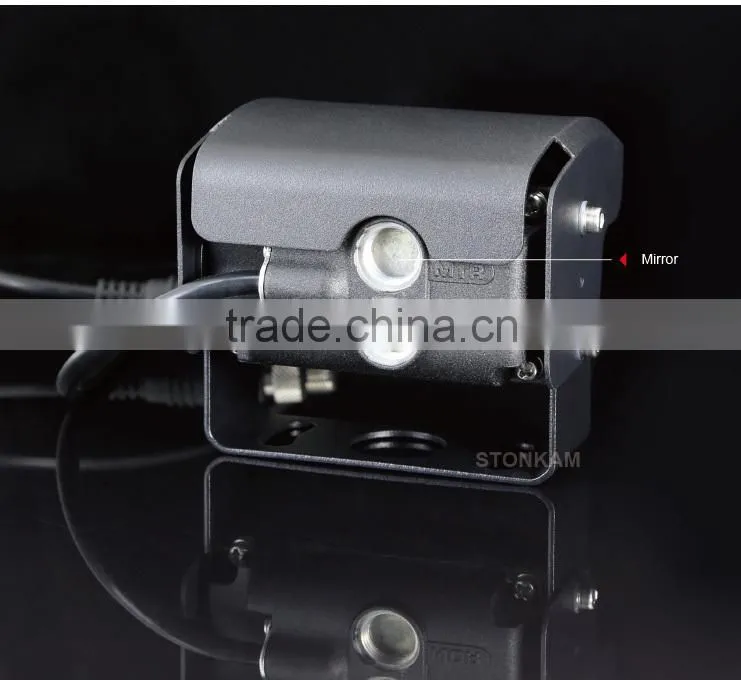

  • Mirror/ Normal image switch (depending on the chips)



PC1089 Features:

  • Pixelplus 1/3", 500 TV lines, high definition CMOS sensor: PC1089N
  • Wide power supply input: 10~32V ; Working temperature: -30°C~70°C.
  • With infrared lights; Night vision can auto switch to B/W mode. Good night vision performance, small noise
  • and no color aberration.
  • IR-CUT optional, effectively avoid color aberration in daylight. eg. shooting green plant in high fidelity in the daylight.
  • External mirror and normal image adjustable, audio optional, and P/N available.


Waterproof truck video camera with autoshutterWaterproof truck video camera with autoshutterWaterproof truck video camera with autoshutterWaterproof truck video camera with autoshutterWaterproof truck video camera with autoshutter



Waterproof truck video camera with autoshutter


1/3" COLOR CMOS Specifications

Image device: Pixelplus  1/3" Color CMOS    PC1089N

TV System: PAL/NTSC

Effective Pixels: 728 x 488 pixels

Sensing Area: 4.6228mm x 3.6112mm

Scanning System: 2:1 Interlace

Sync. System: Internal

Resolution: 500 TV Lines

Horizontal Sync. Frequency: 15.625KHz/15.734KHz

Vertical Sync. Frequency: 50Hz/60Hz

Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)

Microphone: Optional

Video Output: 1.0Vp-p, 75Ohm

Gamma Consumption: 0.45

AGC: Auto

Signal to noise ratio: Better than 48dB

White balance: Auto

Electronic Shutter: Auto:1/50 (PAL)1/60(NTSC)-1/100000

Backlight Compensation: Auto

Current Consumption: Day: 12V/80mA; Night: 12V/120mA; max. 530mA (Heating open)

Power Supply: 10~32V

  • Operating Temperature: -30°C- +70°C, RH 95% MAX
  • Storage Temperature: -40°C- +80°C, RH 95% MAX
  • Lens Angle: 120° /150°





Image device:1/3” SHARP  CCD
