Product Details
| Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | MU-317 |
Product Description
Color Duplex Pics video multiplexer :
Features:

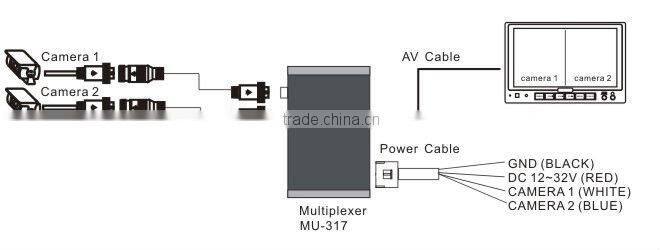

- 2 camera inputs and 1 AV output
- Two trigger wires support auto switching to the working camera in full screen
- TV system: PAL / NTSC
- Audio output can be selected from CAM 1 and CAM 2
- Trigger priority: CAM 1
- Mirror and normal can be setup
- Power short protection.
MULTIPLEXER MU-317 SPECIFICATIONS
- Two Video Input:1.0 vp-p,75Ohm
- One Video Output: 1.0 vp-p,75Ohm
- Power Supply: DC 12V~32V
- Operating Temperature:20 ~+65
- Current Consumption: 2X300mA
- Power Consumption: 14W max
- Weight : 0.31kg
