7 Inch Digital Color LCD Car Quad Monitor

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Screen Size:

Other, 7"

Screen Type:

16:9

Placement:

Dashboard

Sharpvision Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Screen Size Other, 7"

Screen Type 16:9

Placement Dashboard

Combination Other, touch button

Car Make all kinds

Place of Origin Guangdong, China

Brand Name OEM

Model Number MO-122D

Specifications

Quad monitor:
1.Operates from 10-32V
2.Single,dual,triple,quad,trefoil,Y-split image and PIP functions 3.touch buttons

Product Description

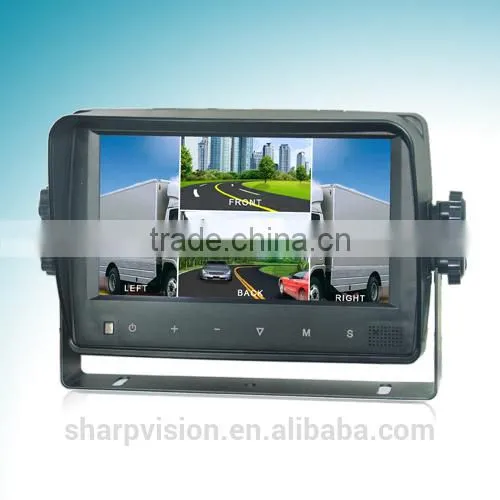

7 Inch Digital Color LCD car Quad monitor :

4camera inputs;camera title can be set:(maximum 8 characters).
Single,dual,triple,quad,trefoil,Y-split image and PIP functions available.
The boot-strap display can be set as your perfect display mode.
Four trigger wire control auto switching between cameras.
With trigger wire for dual picture,the relative cameras can be combined optionally.
Priority of trigger wire can be set up.
Backup distance grid & left / right-turning indicator arrow available.
Volume,brightness,color,contrast and sharp of each camera can be separately set up.
Mirror/normal image for each camera can be separately selected.
Auto switch to blue screen when there is no video input.
Live video output:connected monitor can display synchronously.
REC video output,and picture can be single or split.
Auto scan available and image switching time from 1-60 seconds.
Operates from 10-32V.
Support max. 4X300mA power output.
Power short protection
On-board speaker.
With touch buttons control.
With IR remote control

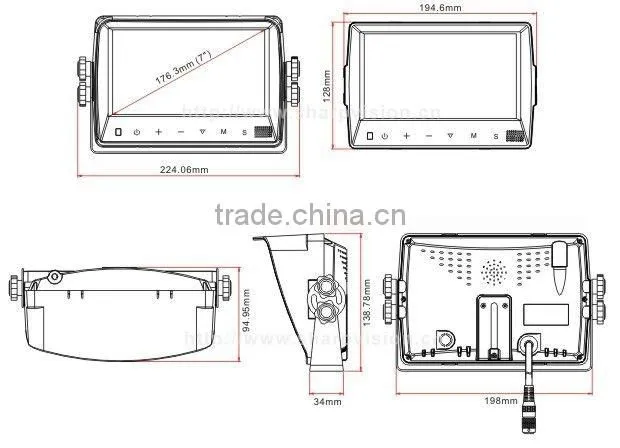

7 Inch Digital Color LCD Quad monitor with VGA input(MO-122D)

LCD size: 7’’
System format: NTSC/PAL
Resolution: 800 x 3(RGB) x 600
Brightness: 400cd/m²
Contrast: 500:1
Viewing angle:U: 50°, D: 70°, R/L: 70°
Aspect ratio: 16:9
Operating temperature: -20°C ~ +70 °C RH90%
Storage temperature: -30°C ~ +80 °C RH90%
Energy consumption: max. 25W
Power supply: 10V-32V
Video input: 4 cameras and 1 VGA video inputs, peak value:1Vp-p, impedance:75 Ohm
Audio input: 4 camera and 1 AUX audio input, peak value:1Vp-p, impedance:4.7k Ohm
Video output: 1 REC video output and 1 LIVE video output, peak value:1Vp-p, impedance:75 Ohm
Audio output: 1 LIVE audio output, peak value:1Vp-p, impedance: 4.7k Ohm
Loudspeaker: 1W/8Ω
